0.5D1.60 Marzocchi hydraulic gear pump 1.25 cm3 straight shaft

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX100304
Brand
Marzocchi
Identification number
0.5D1.60
Other numbers
0.5 D 1.60 0.5D1.60 0.5 D 1.60
Approximate weight (kg)
0,7

Description

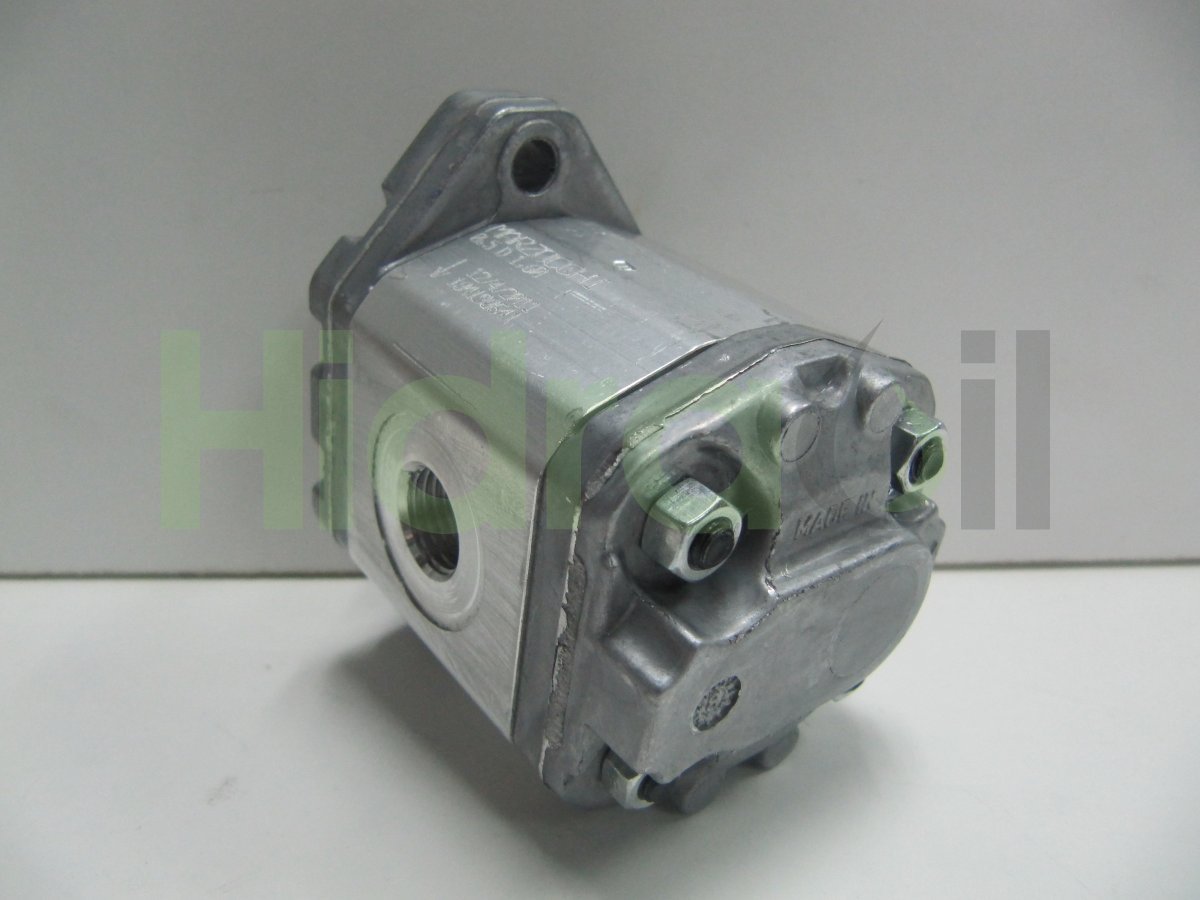

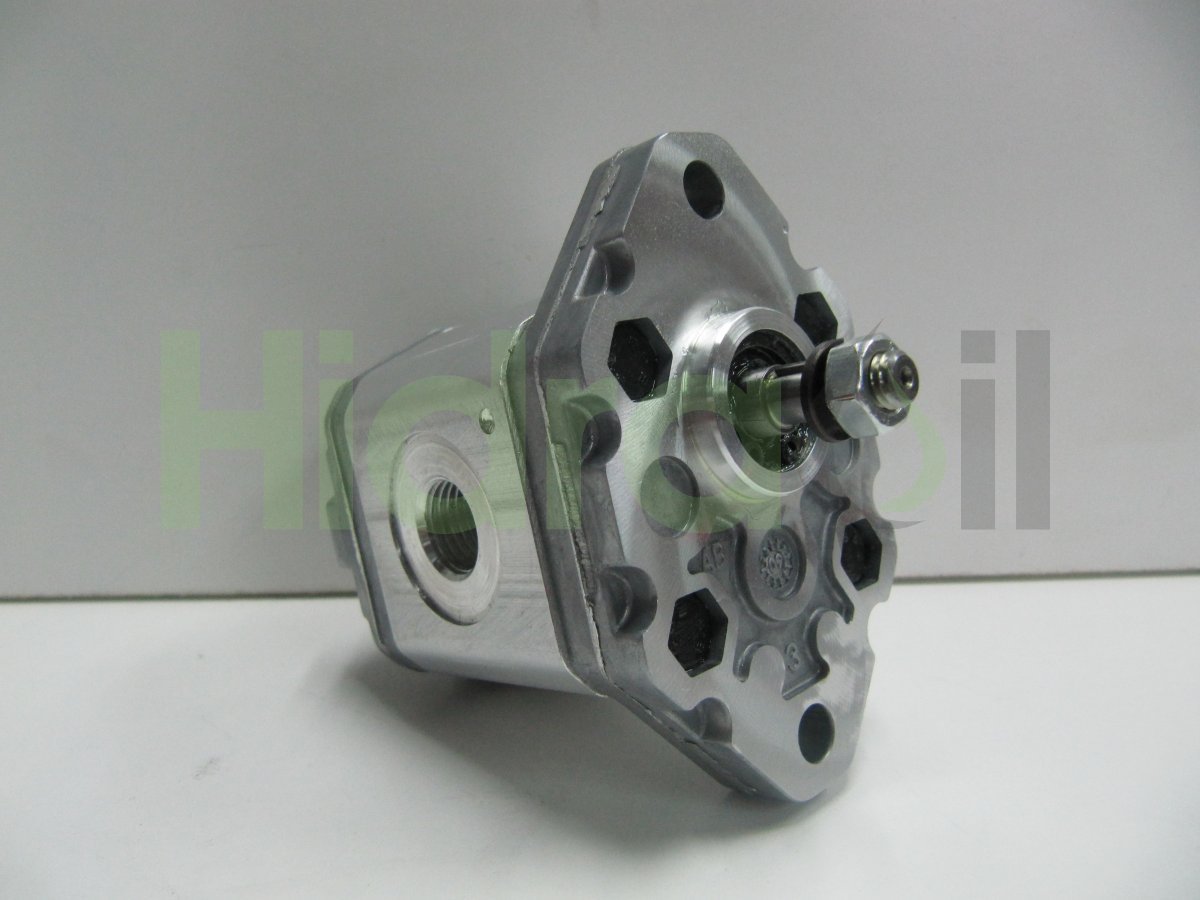

Group 0.5 hydraulic external gear pump with an aluminum housing.
Displacement: 1,25 cm3/rev
Flow @ 1500 rpm: 1,88 liters/minute
Maximum working pressure: 190 bar
Maximum speed: 5000 rpm
Rotation: Clockwise rotation
Shaft type: Cylindrical shaft, 6 mm diameter, M6 thread and a 2 mm wide key.
Flange type: Flange with 22 mm centering diameter, 2 mounting screws and 66 mm hole spacing.
Inlet ports: Threaded G1/4 port (1/4" BSPP)
Outlet ports: Threaded G1/4 port (1/4" BSPP)
