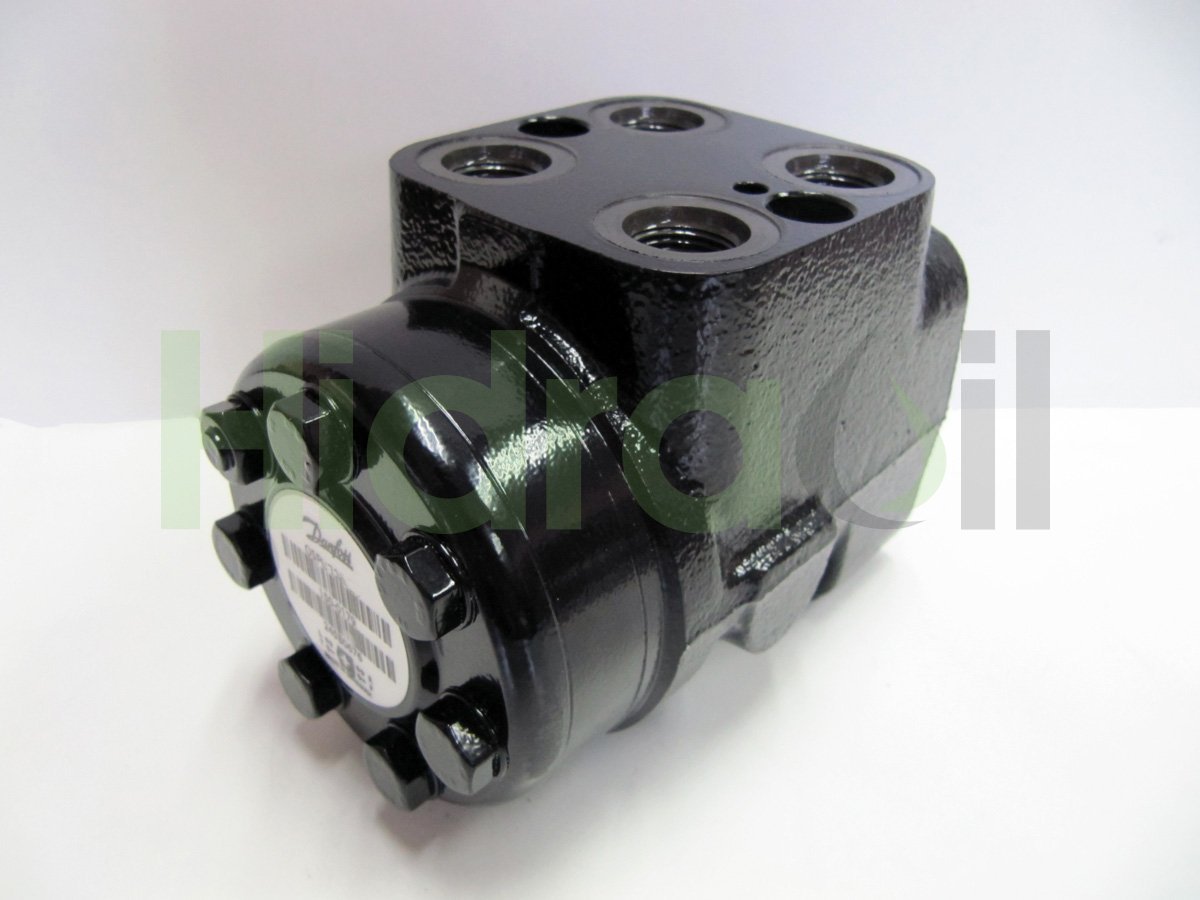

150-0029 OSPB 200 ON Sauer Danfoss steering unit orbitrol 200 cm3 3/4-16 UNF open center without valves
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101282
- Brand
- Sauer Danfoss
- Identification number
- 150-0029 OSPB 200 ON
- Other numbers
- 150 0029 1500029 OSPB200ON 150-0037 150-0054 150N0023 1500037 1500054 150 0037 150 0054
- Approximate weight (kg)
- 5,8
Description
Steering unit (orbitrol) open center without valves.
Displacement: 200 cm3/rev.
Type: Centro abierto, sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4"-16 UNF.
Oil flow: Entre 19 y 50 liters/minute.
Max pressure in P: 210 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
Displacement: 200 cm3/rev.
Type: Centro abierto, sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4"-16 UNF.
Oil flow: Entre 19 y 50 liters/minute.
Max pressure in P: 210 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
More information
- Category: Actuators
- Category: Steering Units
- Category: Sauer Danfoss
- Category: OSPB-ON
- Last updated: 2015-10-03 16:13:10
