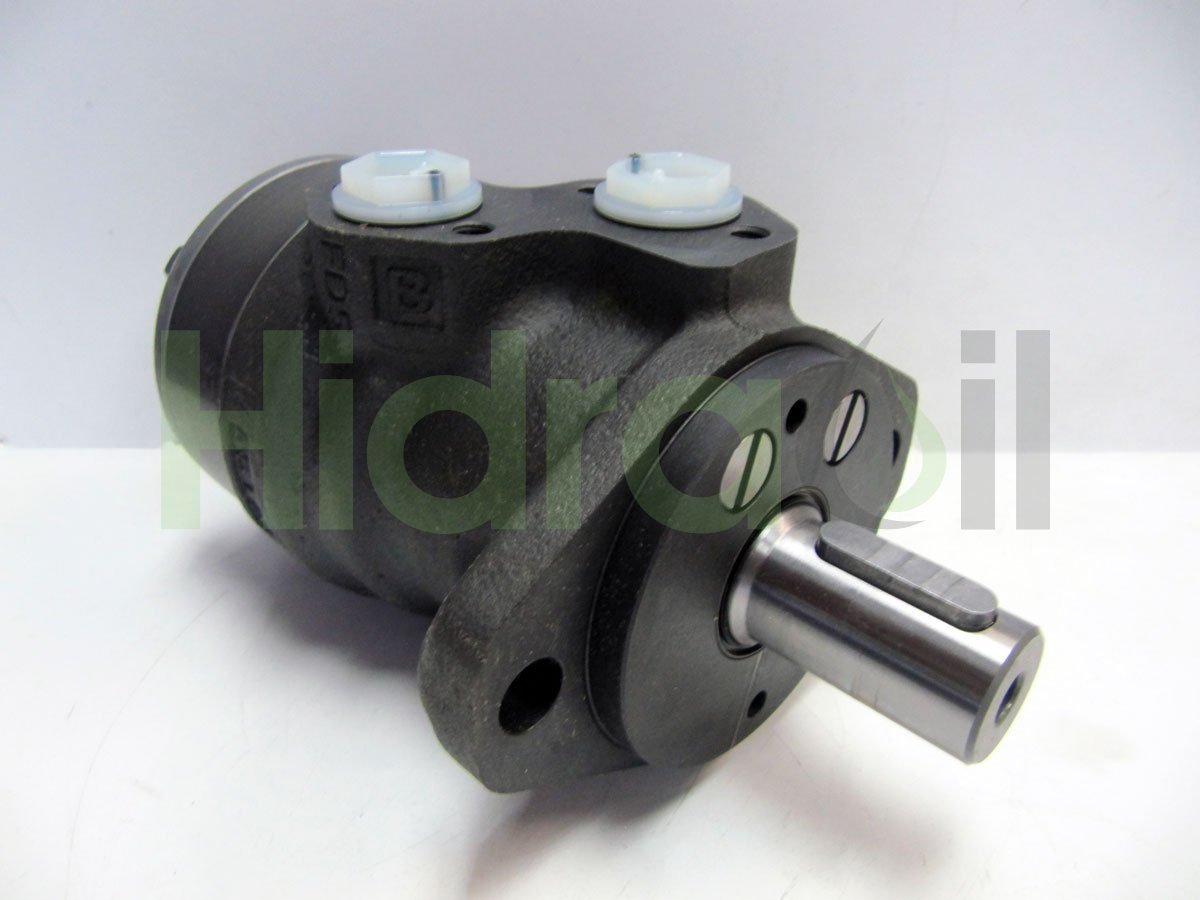

151-0701 OMR 80 Sauer Danfoss hydraulic orbital motor 80 cm3 with straight shaft 25.4 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX105121
- Brand
- Sauer Danfoss
- Identification number
- 151-0701 OMR 80
- Other numbers
- 1510701 OMR80
- Approximate weight (kg)
- 6,9
Description
Hydraulic orbital motor for high torque and low/medium speed applications y alto par con retén del eje reforzado.
Shaft type: Straight shaft and external diameter 25.4 mm (1 inch) con chaveta from ancho 6.4 mm.
Flange type: Tipo A2 (SAE A) con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from los 2 taladros.
Displacement: 80.3 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: Without Drain port.
Max speed: 750 rpm (intermittent operation: 940 rpm).
Max. Torque: 195 Nm (intermittent operation: 220 Nm; peak: 270 Nm).
Max. Output Power: 12.5 kW (intermittent operation: 15 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak: 225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 150 Nm.
Min. starting torque at max. press. drop int.: 170 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft and external diameter 25.4 mm (1 inch) con chaveta from ancho 6.4 mm.
Flange type: Tipo A2 (SAE A) con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from los 2 taladros.
Displacement: 80.3 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: Without Drain port.
Max speed: 750 rpm (intermittent operation: 940 rpm).
Max. Torque: 195 Nm (intermittent operation: 220 Nm; peak: 270 Nm).
Max. Output Power: 12.5 kW (intermittent operation: 15 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak: 225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 150 Nm.
Min. starting torque at max. press. drop int.: 170 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 25.4 mm
- Category: With case drain
- Last updated: 2022-07-09 12:51:00
