Product identification

• Hidraoil Part number: GFX105407
• Brand of product: Danfoss White
• Part number: 151F0609 OMSW 400
• Other numbers: OMSW400
• Approximate weight (kg): 13,6

Description

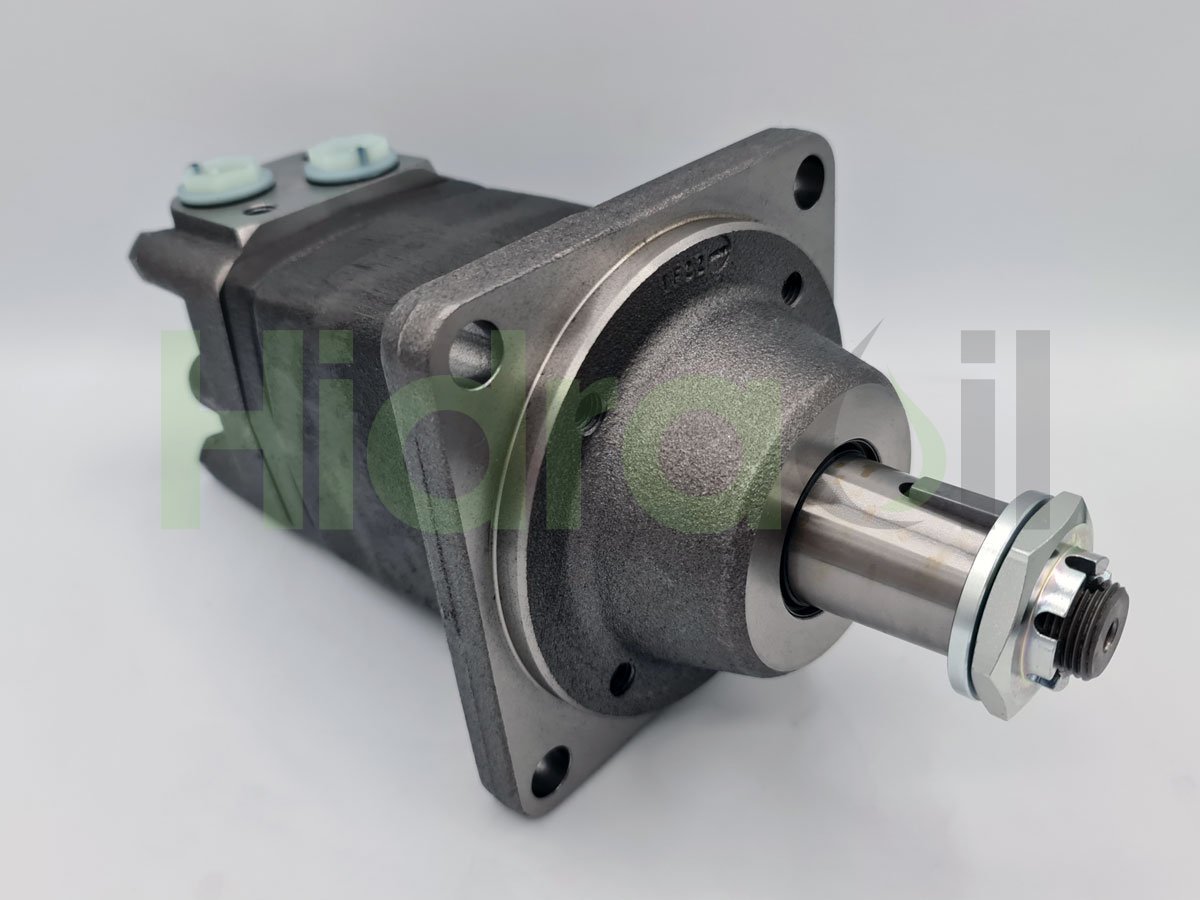

• Hydraulic orbital motor White (former Danfoss / Sauer Danfoss) for applications requiring high Torque at low / medium Speed.
  Shaft type: Tapered 1:10 with major diameter 35 mm and key width 6 mm.
  Flange type: Wheel type with 125 mm centering diameter and 160 mm diameter between 4 holes centers.
  Displacement: 393 cm3/rev.
  Ports: G1/2.
  Drain Port: G1/4.
