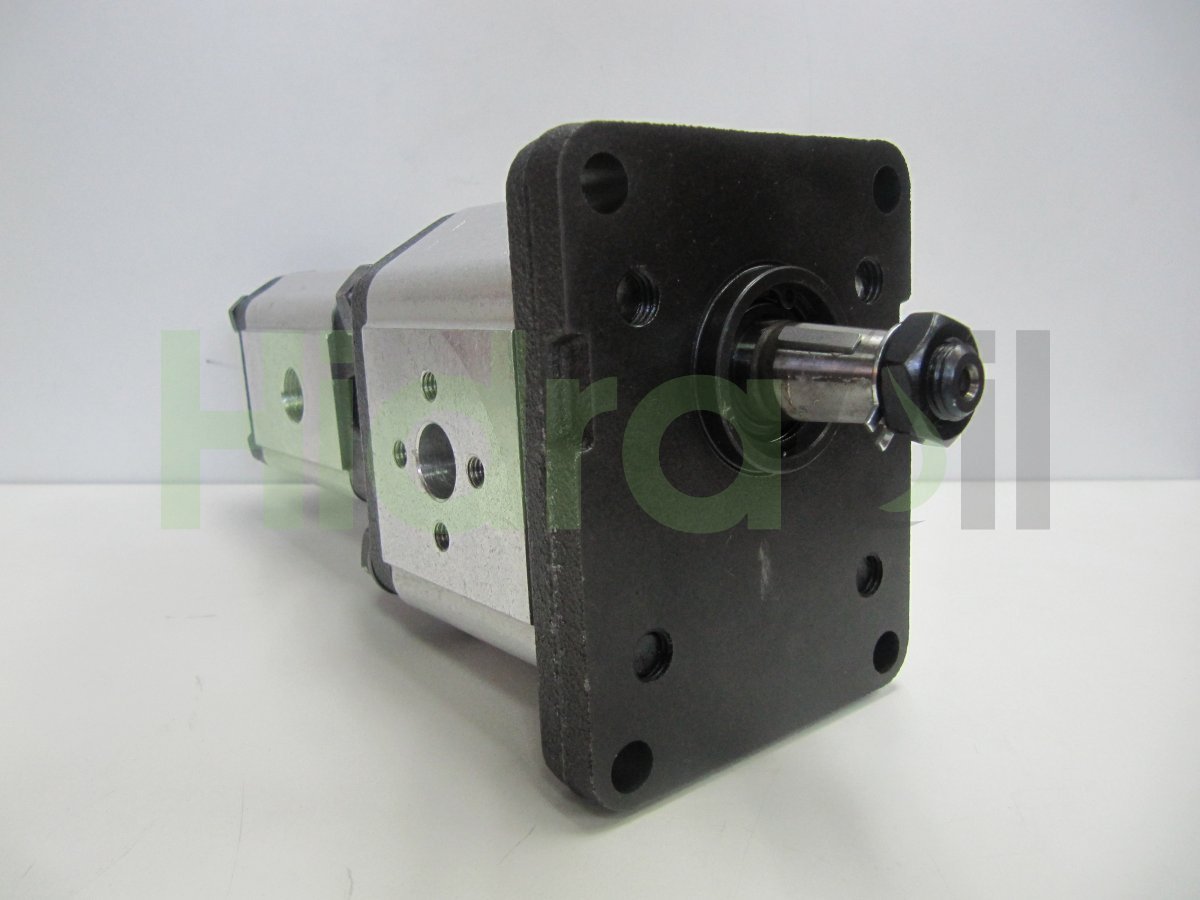

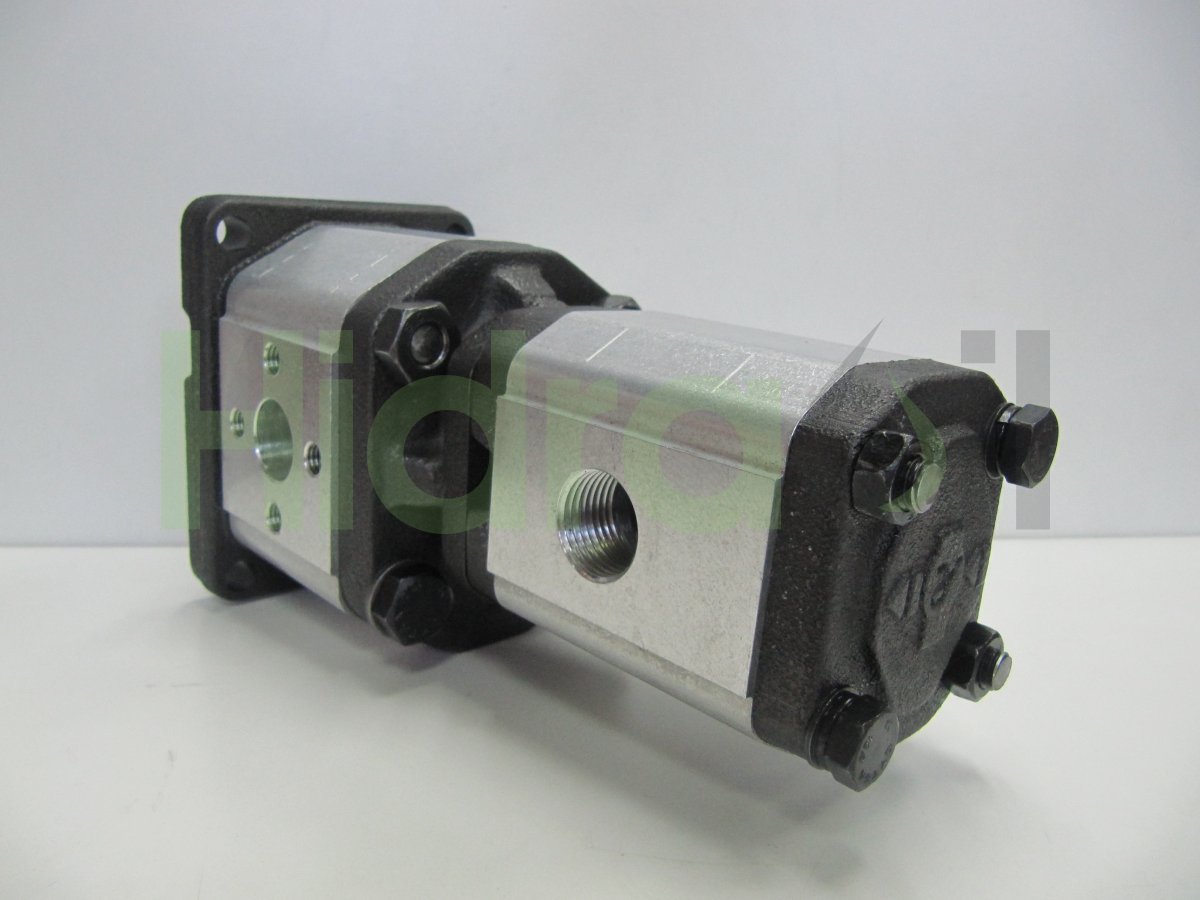

1LS16-10IE10BR Roquet hydraulic double gear pump 10.6+6.6 cm3 tapered shaft 1:8

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX100338
Brand
Roquet
Identification number
1LS16-10IE10BR
Other numbers
1LS1610IE10BR
Approximate weight (kg)
5,2

Description

Roquet group 2+1 hydraulic external gear tandem pump with an aluminum housing.
Type: Fixed displacement.
Displacement: 10,6+6,6 cm3/rev
Flow @ 1500 rpm: 16+10 liters/minute (26 liters/minute total).
Rotation: Counterclockwise rotation.
Shaft type: Tapered 1:8 with a 3,2 mm wide key.
Flange type: European flange with 36,5 mm centering diameter, 4 mounting screws and 96,2x71,5 mm center spacing.
Inlet ports on pump 1: Cross-pattern flange with 20 mm oil passage diameter, 40 mm thread center spacing and M6 mounting screws.
Outlet ports on pump 1: Cross-pattern flange with 13,5 mm oil passage diameter, 30 mm thread center spacing and M6 mounting screws.
Inlet ports on pump 2: Threaded 1/2" GAS.
Outlet ports on pump 2: Threaded 3/8" GAS.
