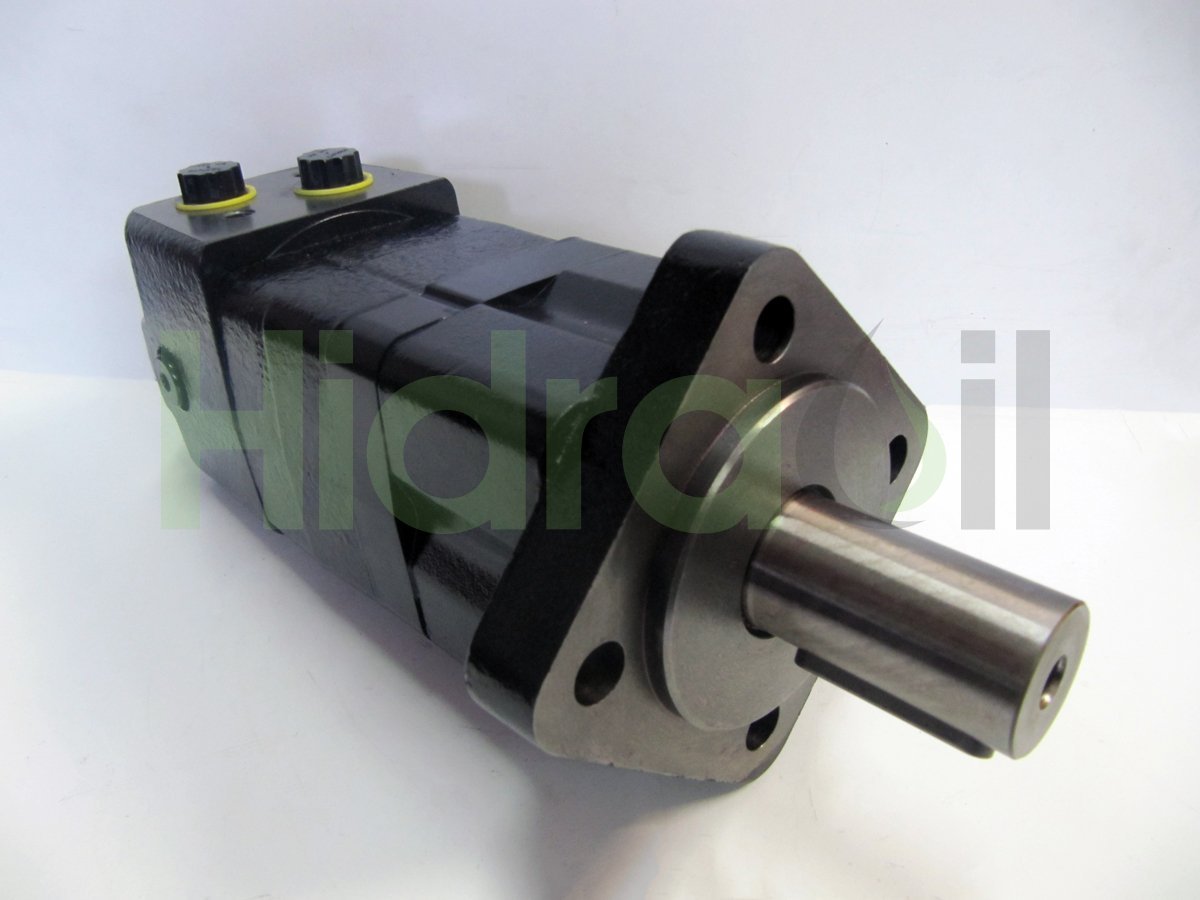

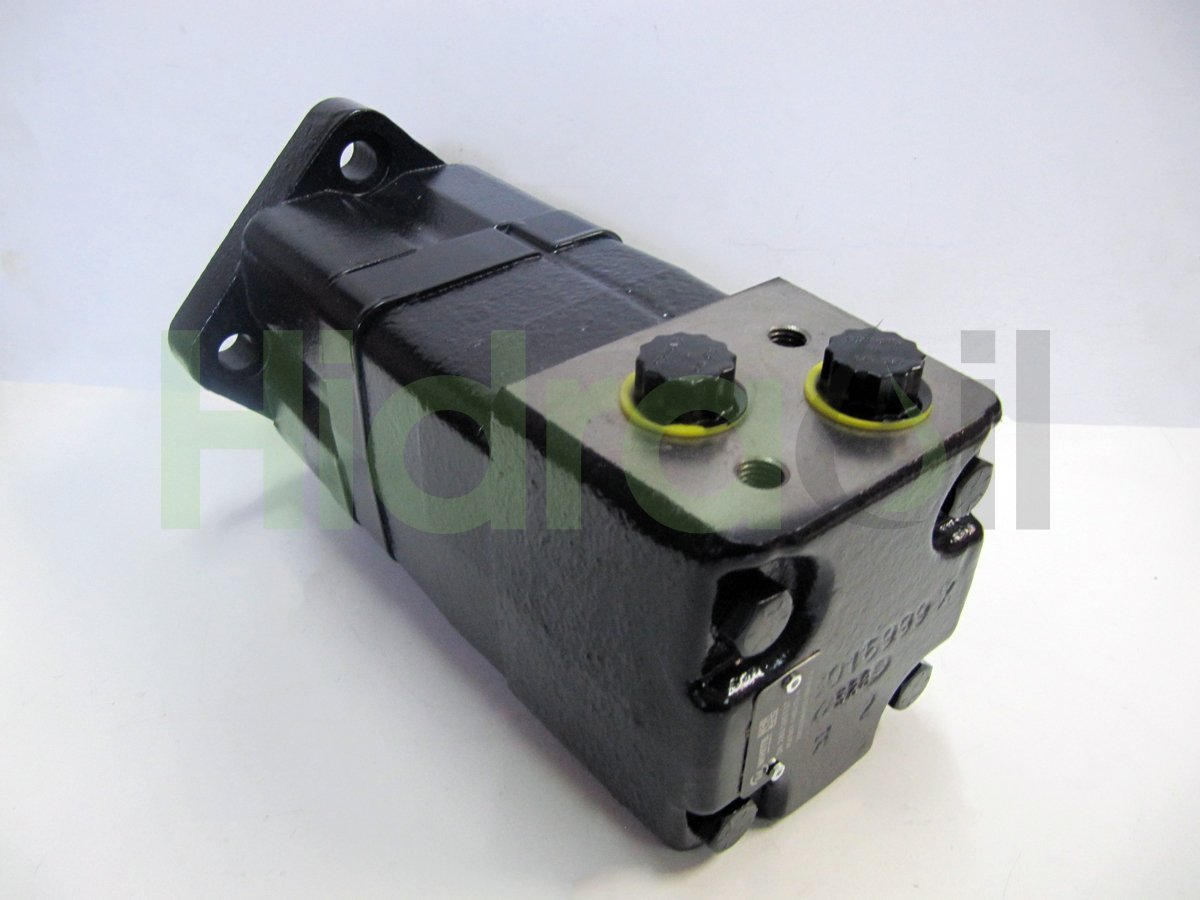

355400AH321BAAAA White drive hydraulic orbital motor 400 cm3 with cylindrical shaft 32 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101789
- Brand
- White
- Identification number
- 355400AH321BAAAA
- Other numbers
- 355400AH321AAAAA
- Approximate weight (kg)
- 13,3
Description
Hydraulic Orbital Motor for Low speed and High Torque applications.
Shaft type: Parallel diameter 32 mm con chaveta from ancho 8 mm
Flange type: Tipo SAE con centraje from diámetro 82.5 mm y diámetro from distancia entre los 4 taladros from 106.4 mm.
Displacement: 393 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP) Drenaje from 1/4" GAS.
Max speed: 185 rpm (intermittent operation: 225 rpm).
Max. Torque: 910 Nm (intermittent operation: 1069 Nm).
Max. Pressure Drop: 160 bar (intermittent operation: 190 bar; peak load:210 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
The working time under intermittent conditions should not exceed 10% of each minute of operation.
Shaft type: Parallel diameter 32 mm con chaveta from ancho 8 mm
Flange type: Tipo SAE con centraje from diámetro 82.5 mm y diámetro from distancia entre los 4 taladros from 106.4 mm.
Displacement: 393 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP) Drenaje from 1/4" GAS.
Max speed: 185 rpm (intermittent operation: 225 rpm).
Max. Torque: 910 Nm (intermittent operation: 1069 Nm).
Max. Pressure Drop: 160 bar (intermittent operation: 190 bar; peak load:210 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
The working time under intermittent conditions should not exceed 10% of each minute of operation.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: White Drive
- Category: WS
- Last updated: 2018-11-18 23:03:35
