Product identification

• Hidraoil Part number: GFX104015
• Brand of product: Eaton
• Part number: 74318-DCL
• Other numbers: 74318DCL 74318 DCL AAJADDA00000A0B
• Approximate weight (kg): 9,1

Description

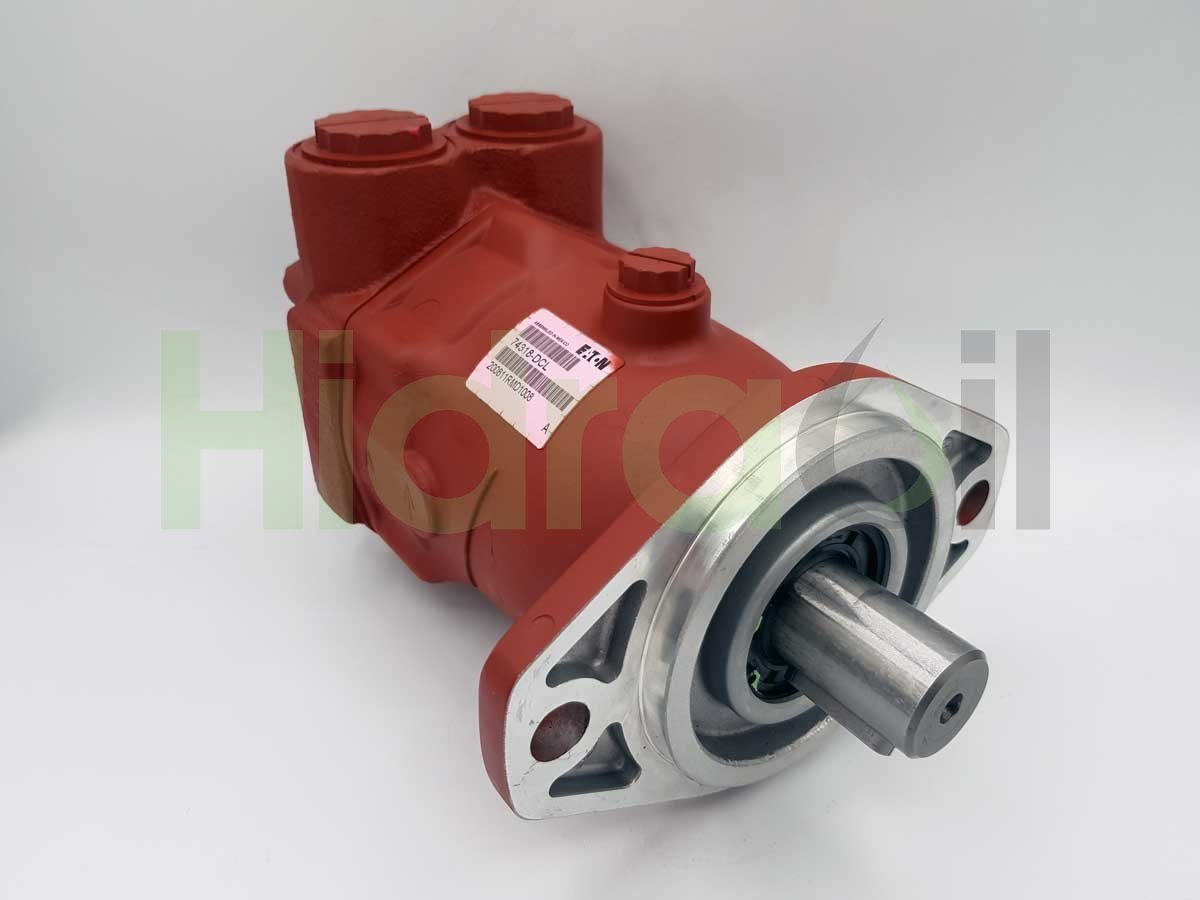

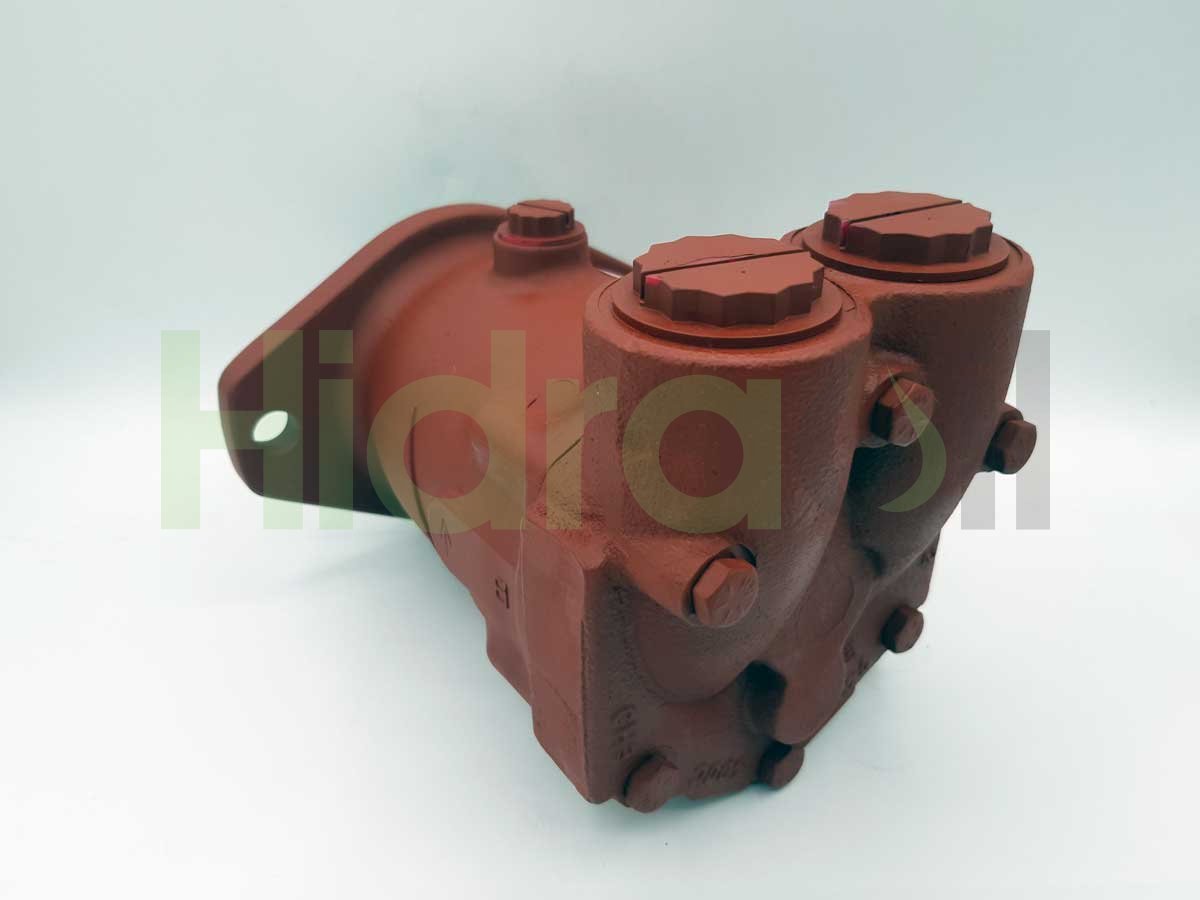

• Hydraulic axial piston motor fixed displacement for medium pressure applications and high rpm's.
  Type: Fixed displacement.
  Displacement: 40.6 cm3/rev.
  Max speed: 3600 rpm.
  Max. continous pressure: 210 bar.
  Rotation: Bi-directional.
  Shaft type: Parallel diameter 28.55 mm (46 mm long). Max. Torque: 337.5 Nm.
  Flange type: SAE-B with 101.6 mm centering diameter and 146 mm distance between hole centers.
