ALP2BK7-D-37 Marzocchi hydraulic gear pump 25.5 cm3 tang shaft 8 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101250
- Brand
- Marzocchi
- Identification number
- ALP2BK7-D-37
- Other numbers
- ALP2BK7D37 2BK7-D-37 2BK7D37
- Approximate weight (kg)
- 3,1
Description

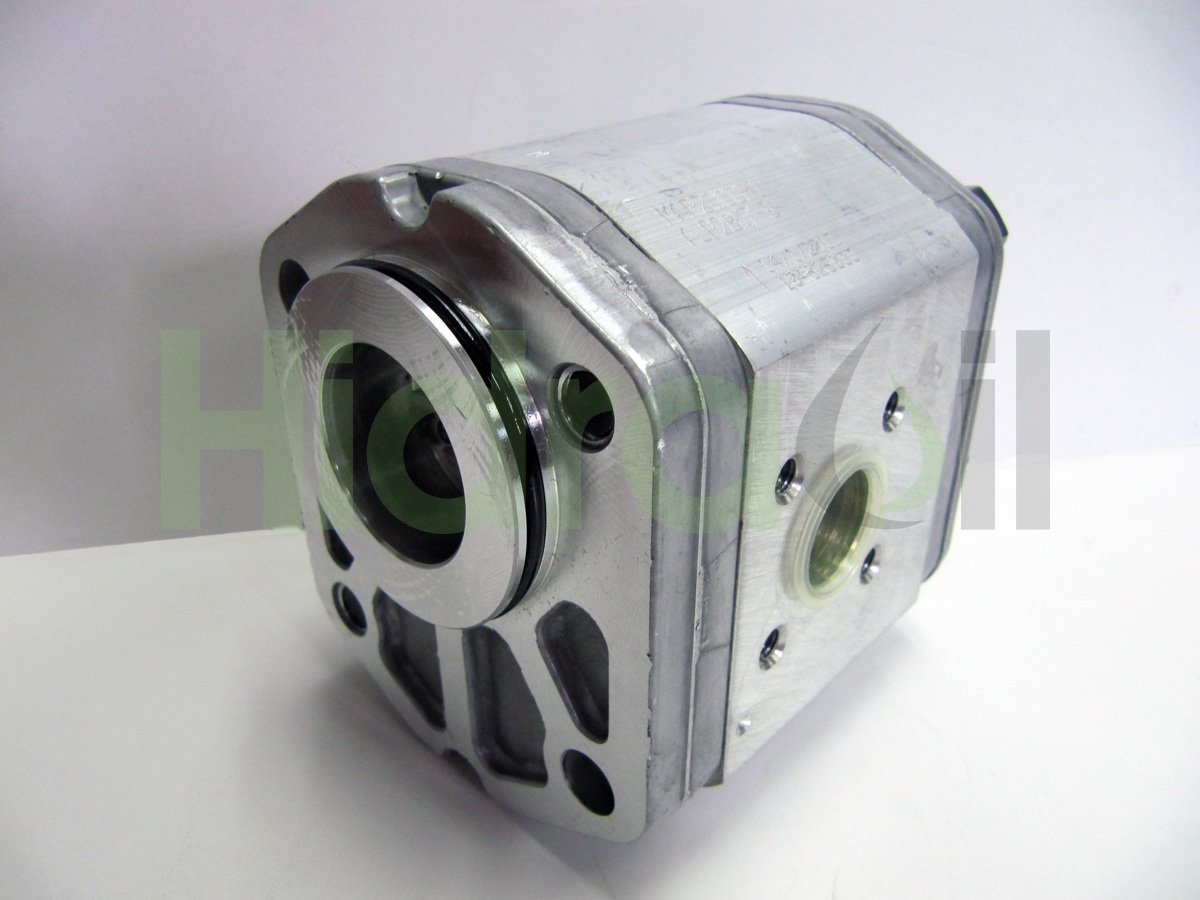

Hydraulic external gear pump with aluminum case of group 2.
Displacement: 25.5 cm3/rev.
Flow @ 1500 rpm: 38.2 liters/minute.
Max working Pressure: 170 bar.
Max speed: 2600 rpm.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 18 mm con fresado from 8 mm entre caras.
Flange type: Centering diameter 52 mm y fijación mediante 2 tornillos en diagonal.
Inlet ports: Tipo cuadrada con diámetro from 40 mm entre centros from roscados from M6 con agujero from paso from aceite from 20 mm from diámetro.
Outlet ports: Tipo cuadrada con diámetro from 35 mm entre centros from roscados from M6 con agujero from paso from aceite from 15 mm from diámetro.
Displacement: 25.5 cm3/rev.
Flow @ 1500 rpm: 38.2 liters/minute.
Max working Pressure: 170 bar.
Max speed: 2600 rpm.
Rotation: Clockwise rotation.
Shaft type: Parallel diameter 18 mm con fresado from 8 mm entre caras.
Flange type: Centering diameter 52 mm y fijación mediante 2 tornillos en diagonal.
Inlet ports: Tipo cuadrada con diámetro from 40 mm entre centros from roscados from M6 con agujero from paso from aceite from 20 mm from diámetro.
Outlet ports: Tipo cuadrada con diámetro from 35 mm entre centros from roscados from M6 con agujero from paso from aceite from 15 mm from diámetro.
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Aluminum
- Category: Group 2
- Category: Marzocchi
- Category: Tang shaft 8 mm
- Last updated: 2015-07-16 11:20:49
