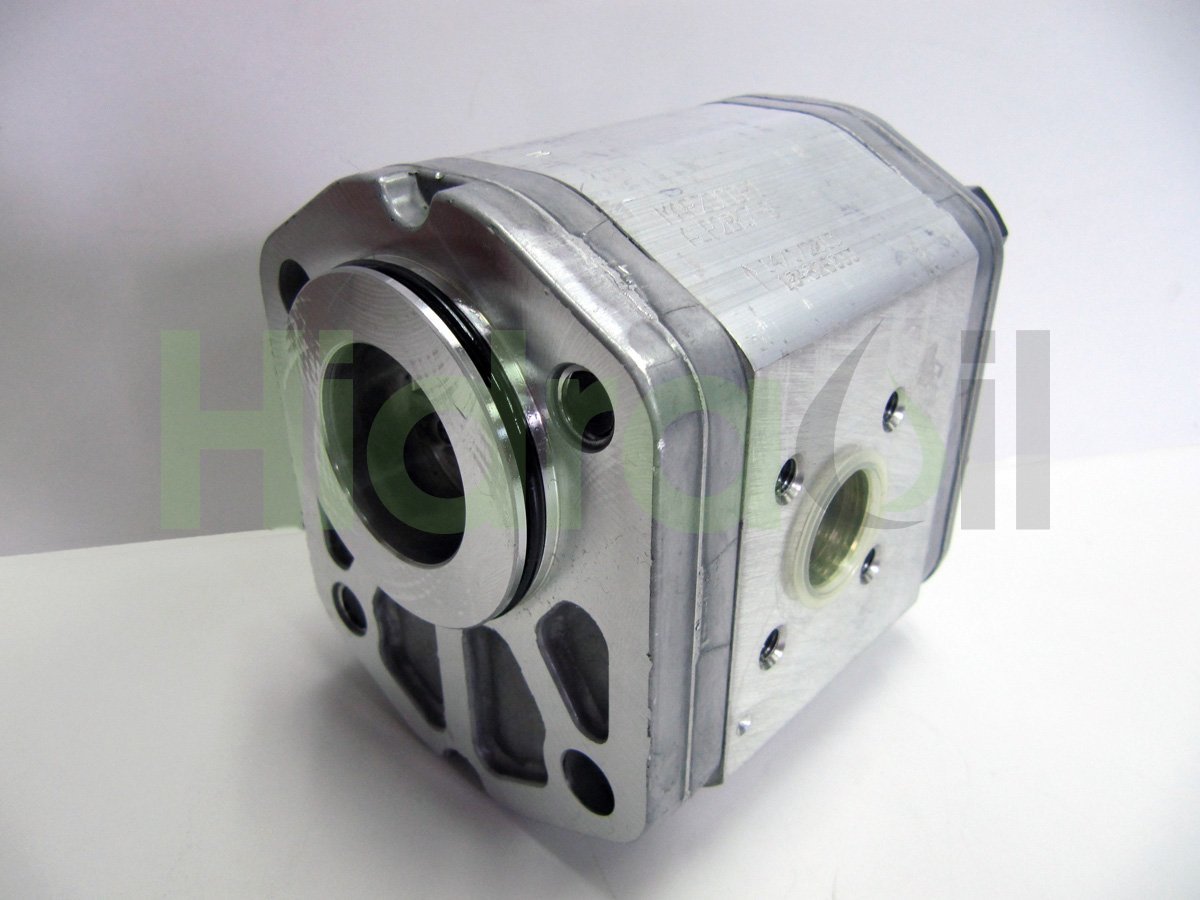

ALP2BK7-S-37 Marzocchi hydraulic gear pump 25.5 cm3 tang shaft 8 mm
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101249
- Brand
- Marzocchi
- Identification number
- ALP2BK7-S-37
- Other numbers
- ALP2BK7S37 2BK7-S-37 2BK7S37
- Approximate weight (kg)
- 3,1
Description
Displacement: 25.5 cm3/rev.
Flow @ 1500 rpm: 38.2 liters/minute.
Maximum working pressure: 170 bar.
Maximum speed: 2600 rpm.
Rotation: Counterclockwise rotation.

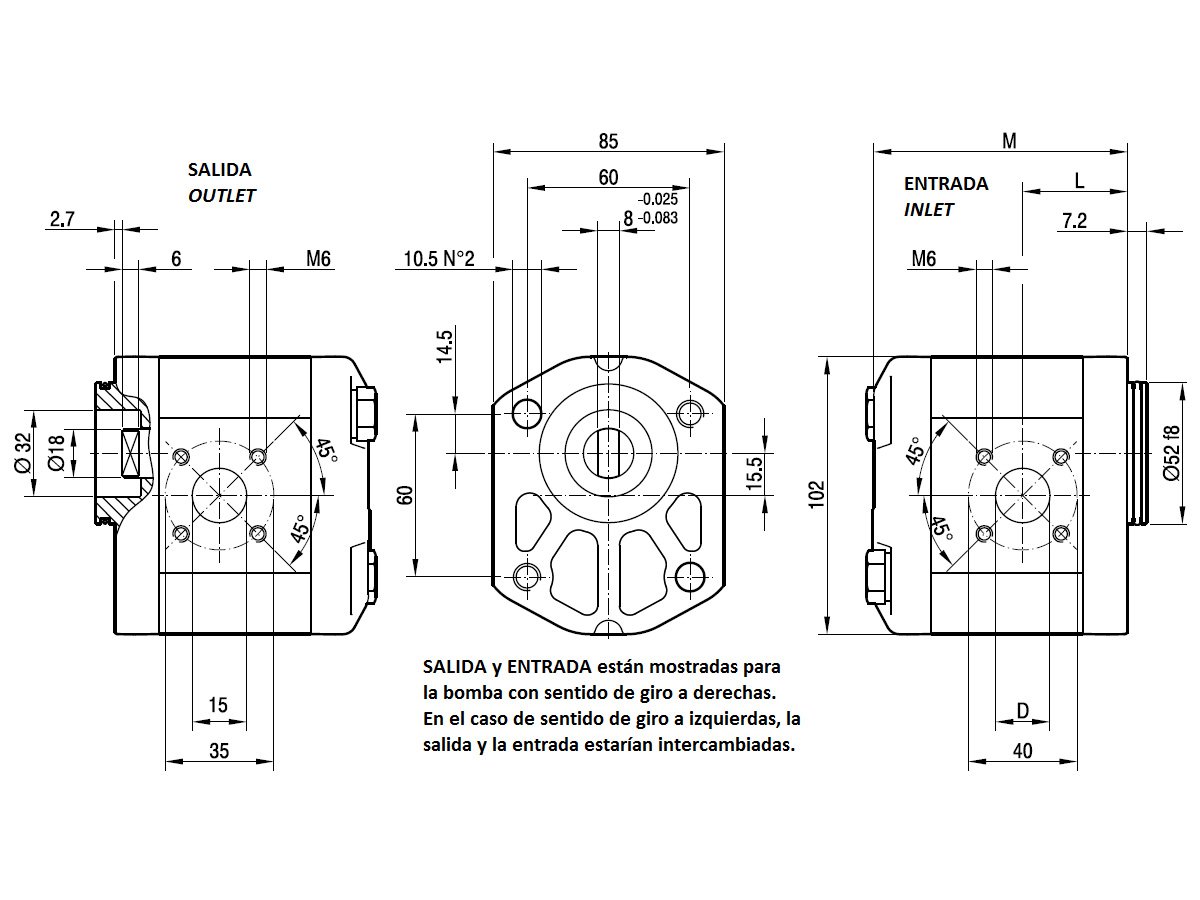

Shaft type: Straight shaft, 18 mm diameter, milled to 8 mm across the flats.
Flange type: 52 mm centering diameter, mounted with 2 diagonal screws.
Inlet ports: Square-pattern flange with 40 mm thread center spacing, M6 threads and a 20 mm oil passage diameter.
Outlet ports: Square-pattern flange with 35 mm thread center spacing, M6 threads and a 15 mm oil passage diameter.
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Aluminum
- Category: Group 2
- Category: Marzocchi
- Category: Tang shaft 8 mm
- Last updated: 2015-07-16 11:19:48
