Product identification

• Hidraoil Part number: GFX101251
• Brand of product: Marzocchi
• Part number: ALP2BK7-S-40
• Other numbers: ALP2BK7S40 2BK7-S-40 2BK7S40
• Approximate weight (kg): 3,2

Description

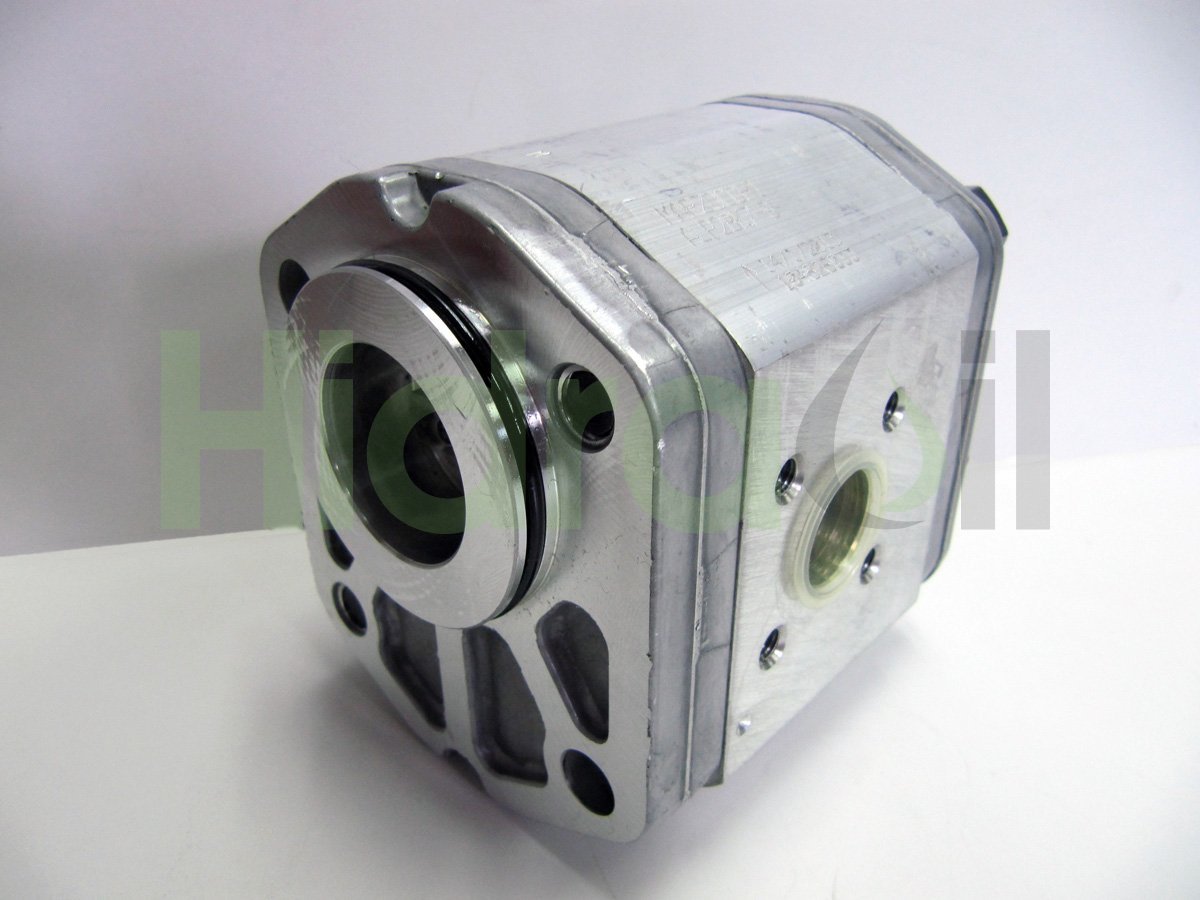

• Hydraulic external gear pump with aluminum case of group 2.
  Displacement: 28.2 cm3/rev.
  Flow @ 1500 rpm: 42.3 liters/minute.
  Max working Pressure: 170 bar.
  Max speed: 2600 rpm.
  Rotation: Counterclockwise rotation.

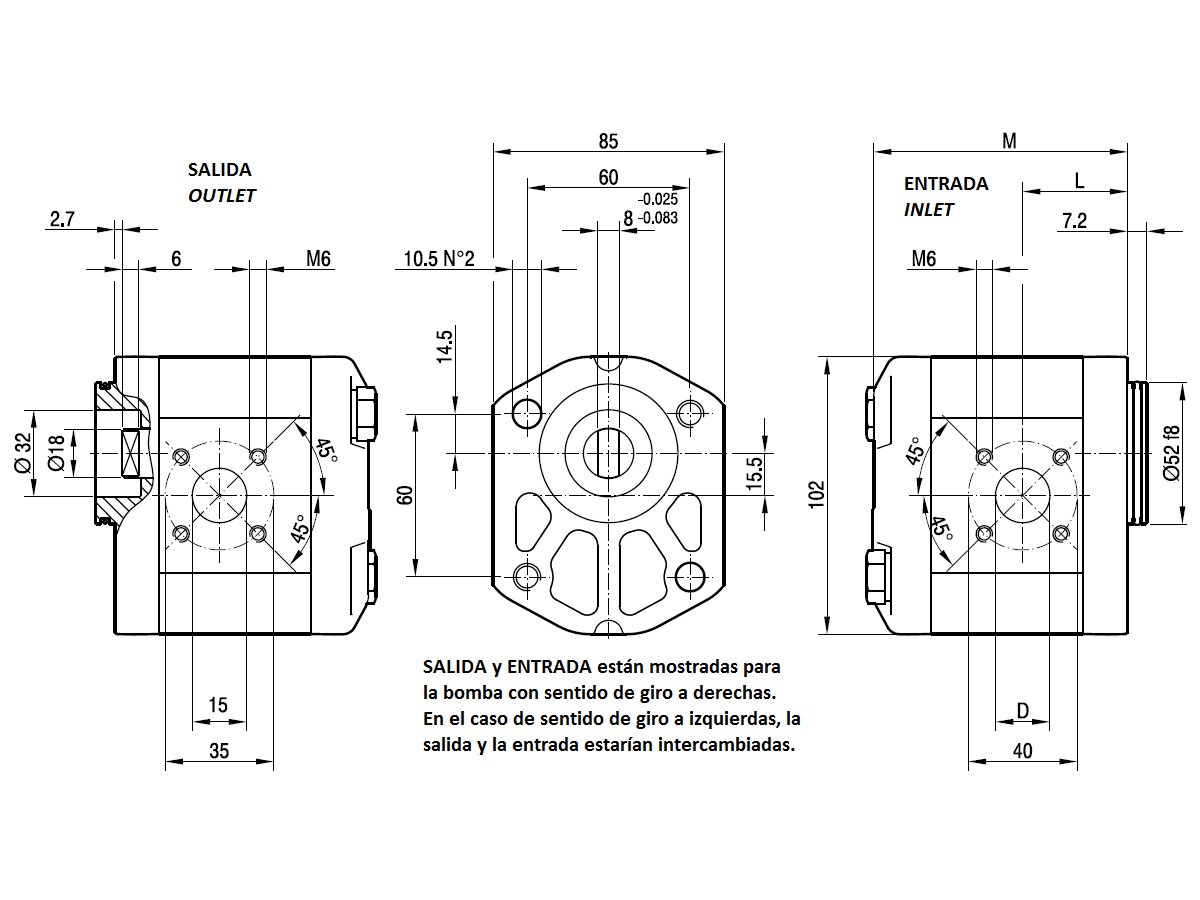

  Shaft type: Parallel diameter 18 mm con fresado from 8 mm entre caras.
  Flange type: Centering diameter 52 mm y fijación mediante 2 tornillos en diagonal.
  Inlet ports: Tipo cuadrada con diámetro from 40 mm entre centros from roscados from M6 con agujero from paso from aceite from 20 mm from diámetro.
  Outlet ports: Tipo cuadrada con diámetro from 35 mm entre centros from roscados from M6 con agujero from paso from aceite from 15 mm from diámetro.
