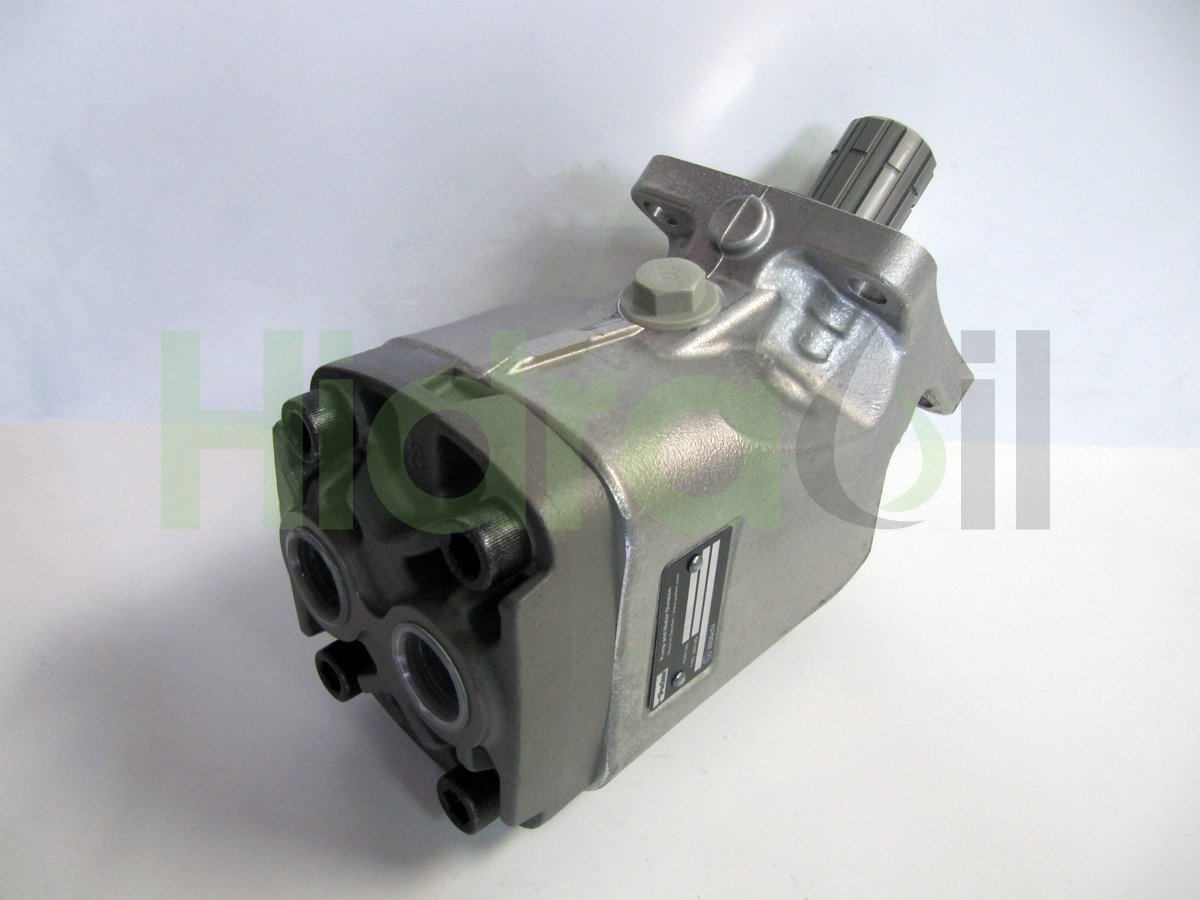

F1-061-M 3781760 Parker hydraulic piston motor 60 cm3 bent-axis with splined shaft z8

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX102095
Brand
Parker
Identification number
F1-061-M 3781760
Other numbers
F1061M 378 1760 F1-061-M_-__-_-000 voac volvo
Approximate weight (kg)
8,5

Description

Fixed-displacement hydraulic bent-axis axial piston motor.
Shaft type: Splined shaft with 8 splines and 34,9 mm outside diameter (B8x32x36 ISO 14/DIN 5462).
Flange type: Square flange with 80 mm centering diameter and mounting holes on a square pattern with 80 mm side spacing.
Displacement: 59,5 cm3/rev.
Ports A and B: G3/4 Threaded Ports (3/4" BSPP).
Drain port: 1/2" GAS. Drain line pressure must not exceed 3 bar.
Rotation: Bidirectional.
Maximum speed: 1700 rpm (intermittent operation: 2200 rpm).
Maximum working pressure: 250 bar (intermittent operation: 350 bar).
Theoretical torque at a pressure drop of 200 bar: 189 Nm.
Intermittent operation is permitted for a maximum of 6 seconds per minute.
