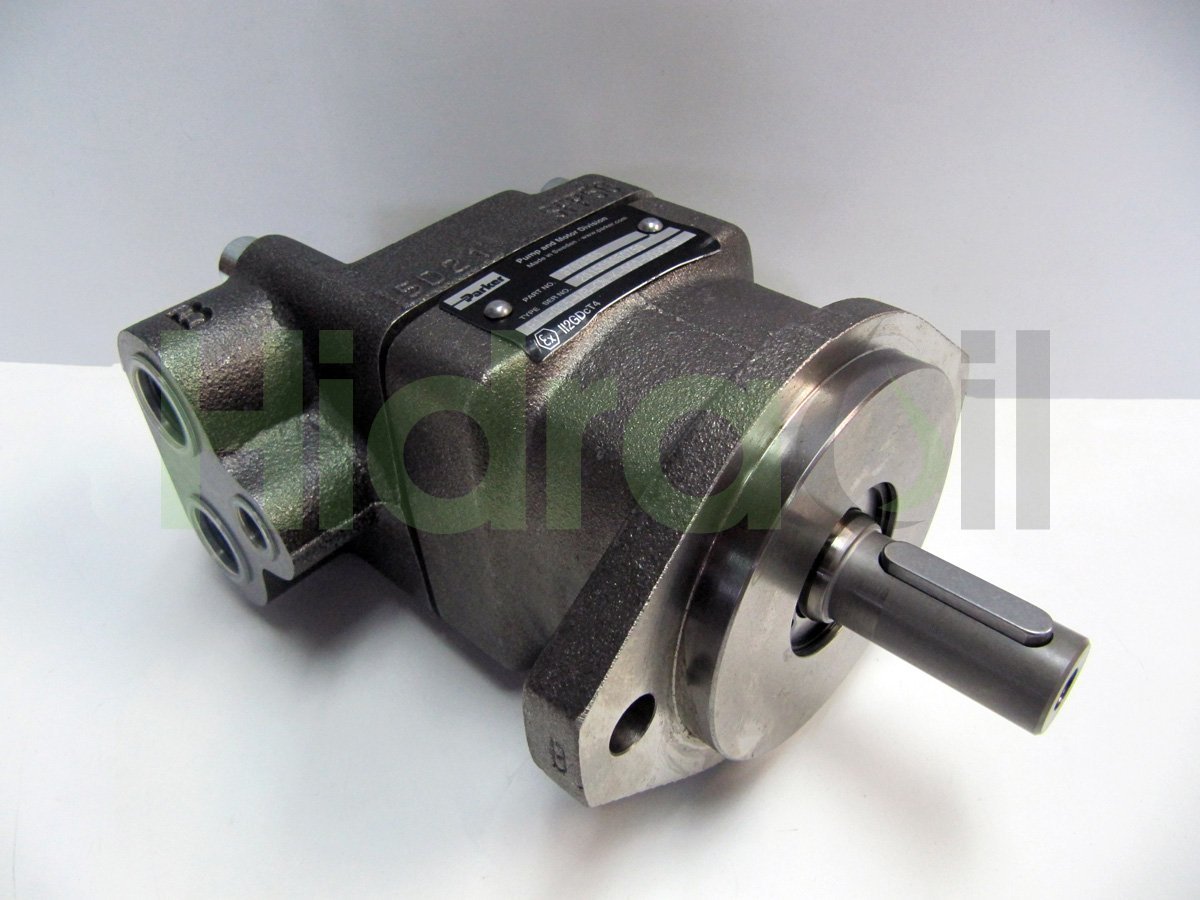

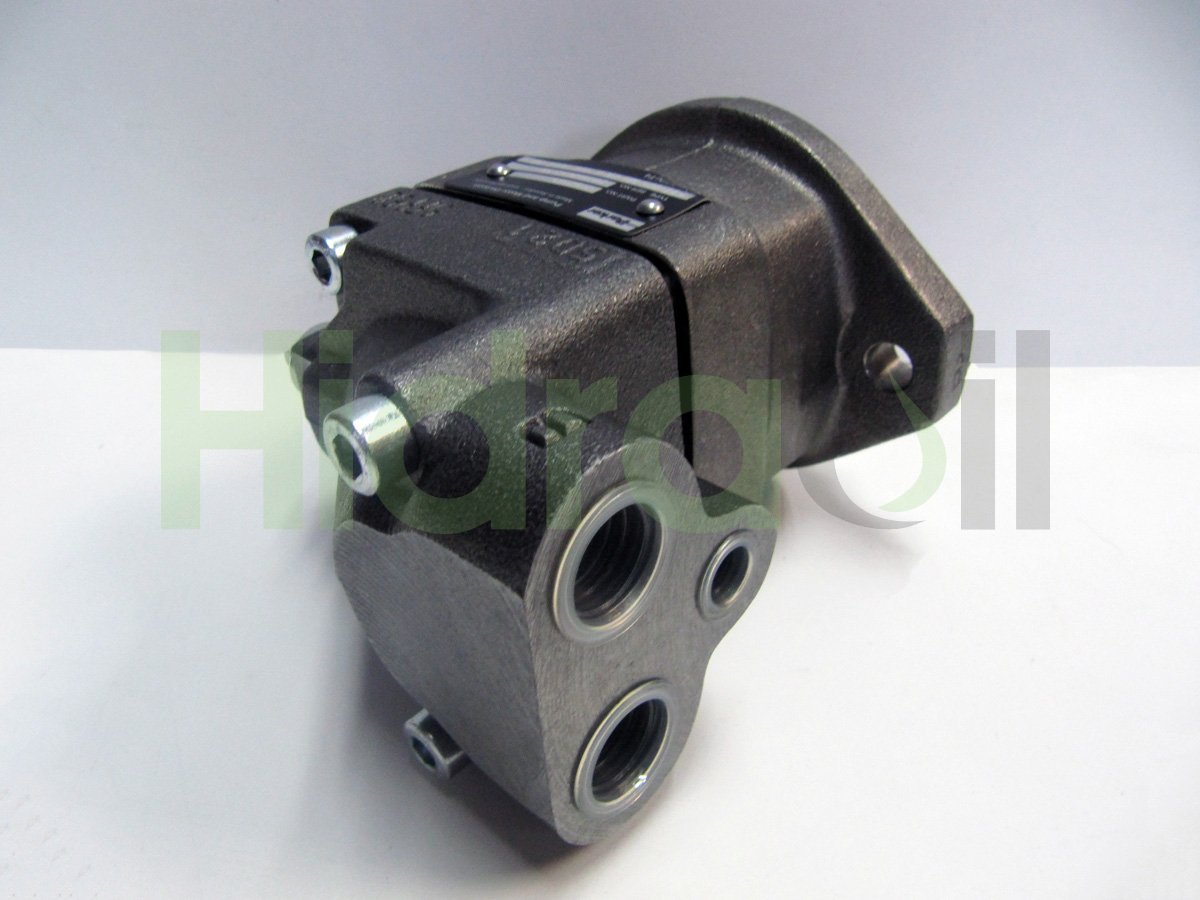

F11-005-MB-CV-K-000 3707249 Parker hydraulic piston motor 5 cm3 with cylindrical shaft high speed type V

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101346
Brand
Parker
Identification number
F11-005-MB-CV-K-000 3707249
Other numbers
F11-005-MB-CV-K-000-0000-00 F11005MBCVK000 F11 005 MB CV K 000 0000 00 F11005MBCVK000000000 3707249 voac volvo
Approximate weight (kg)
4,7

Description

Fixed-displacement hydraulic piston motor for demanding applications.
Shaft type: Straight shaft diameter 18 mm with parallel key 6 mm width.
Flange type: CETOP type 2 holes with centering diameter 80 mm and distance between holes 100 mm..
Displacement: 4.9 cm3/rev.
Ports A and B: G1/2 Threaded Ports (1/2" BSPP)
Drain port: G1/4 Threaded Port (1/4" BSPP)
Rotation: Bidirectional.
Maximum speed: 12800 rpm (intermittent operation: 14000 rpm).
Minimum rotation speed: 50 rpm.
Maximum working pressure: 350 bar (intermittent operation: 420 bar).
Maximum oil flow: 63 liters/minute (intermittent operation: 69 liters/minute).
Torque at 100 bar: 7.8 Nm.
Shaft seal material: Type V.
Intermittent operation is permitted for a maximum of 6 seconds per minute.
Check the specific operating conditions before using this product as a hydraulic pump.
