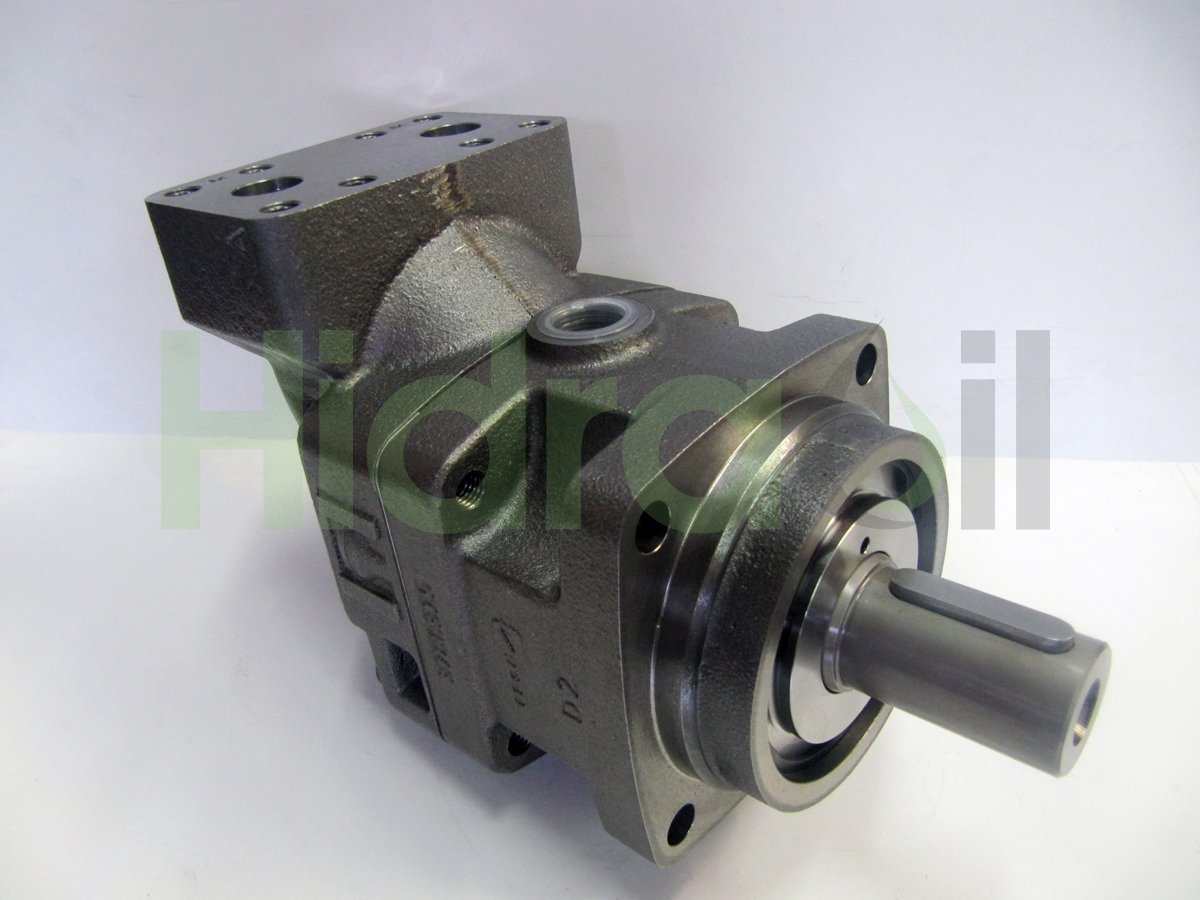

F12-030-MF-IV-P-000-0000-00 3799845 Parker hydraulic piston motor 30 cm3

Parker
Shipping Worldwide

INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

Product identification


  • Hidraoil Part number: GFX107383
  • Brand of product: Parker
  • Part number: F12-030-MF-IV-P-000-0000-00 3799845

Description


  • Hydraulic Piston Motor fixed displacement for applications with high demands.
    Displacement: 30.0 cm3/rev.
    Shaft type: Cilyndrical shaft 25 mm diameter.
    Flange type: ISO flange type with 4 holes and centering diameter 100 mm
    Ports A and B: Flanges type SAE 6000.
    Drain port: M18x1.5.
    Rotation: Bidirectional.
    Max speed: 6700 rpm (intermittent operation: 7300 rpm).
    Minimum rotation speed: 50 rpm.
    Max working pressure: 350 bar.
    Max oil flow: 201 liters/minute (intermittent operation: 219 liters/minute).
    Torque at 100 bar: 47,6 Nm.
    Shaft seal material: Type V.
    Intermittent working value is allowed for up to maximum of 6 seconds per minute.
    Check specific conditions for operating this product as hydraulic pump.

  • Main product category: Hydraulic Motors
  • Subcategory: Piston
  • Approximate weight (kg): 12,0
  • Availability: Inquire about stock
  • Update date: 2024-02-25 15:00:00
