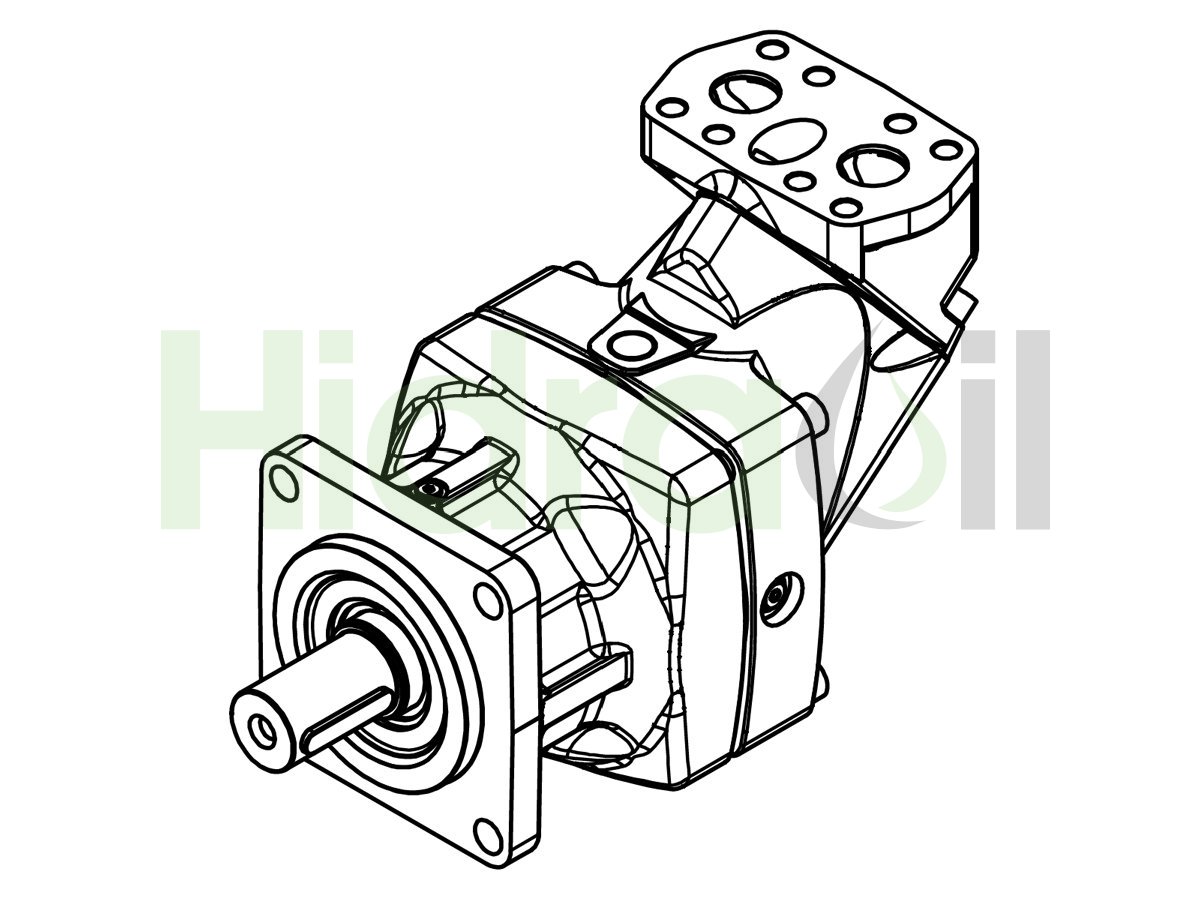

F12-250-QF-SV-K-000-0000-P0 3788847 Parker hydraulic piston motor 250 cm3 SAE straight shaft D50 prepared for speed sensor
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX107385
- Brand
- Parker
- Identification number
- F12-250-QF-SV-K-000-0000-P0 3788847
- Other numbers
- 3788847
- Approximate weight (kg)
- 77,0
Description
Hydraulic Piston Motor fixed displacement for applications with high demands. Prepared for speed sensor
Displacement: 242 cm3/rev.
Shaft type: Cilyndrical shaft 50 mm diameter and 14 mm key width.
Flange type: SAE flange type with 4 holes and centering diameter 152.4 mm.
Ports A and B: -.
Drain port: -.
Rotation: Bidirectional.
Max speed: 2700 rpm (intermittent operation: 3000 rpm).
Minimum rotation speed: 50 rpm.
Max working pressure: 350 bar (intermittent operation: 420 bar).
Max oil flow: 653 liters/minute (intermittent operation: 726 liters/minute).
Torque at 100 bar: 384,1 Nm.
Shaft seal material: Type V.
Intermittent working value is allowed for up to maximum of 6 seconds per minute.
Please refer to specific conditions for operating this product as up to pump.
Displacement: 242 cm3/rev.
Shaft type: Cilyndrical shaft 50 mm diameter and 14 mm key width.
Flange type: SAE flange type with 4 holes and centering diameter 152.4 mm.
Ports A and B: -.
Drain port: -.
Rotation: Bidirectional.
Max speed: 2700 rpm (intermittent operation: 3000 rpm).
Minimum rotation speed: 50 rpm.
Max working pressure: 350 bar (intermittent operation: 420 bar).
Max oil flow: 653 liters/minute (intermittent operation: 726 liters/minute).
Torque at 100 bar: 384,1 Nm.
Shaft seal material: Type V.
Intermittent working value is allowed for up to maximum of 6 seconds per minute.
Please refer to specific conditions for operating this product as up to pump.
More information
- Category: Hydraulic Motors
- Category: Piston
- Category: Axial
- Category: Fixed displacement
- Category: Parker
- Category: F12
- Last updated: 2024-02-26 23:30:00
