Product identification

• Hidraoil Part number: GFX100366
• Brand of product: Hydromatik
• Part number: KVA7VO107DRS/63L-MEK64
• Other numbers: R902036947
• Approximate weight (kg): 24,0

Description

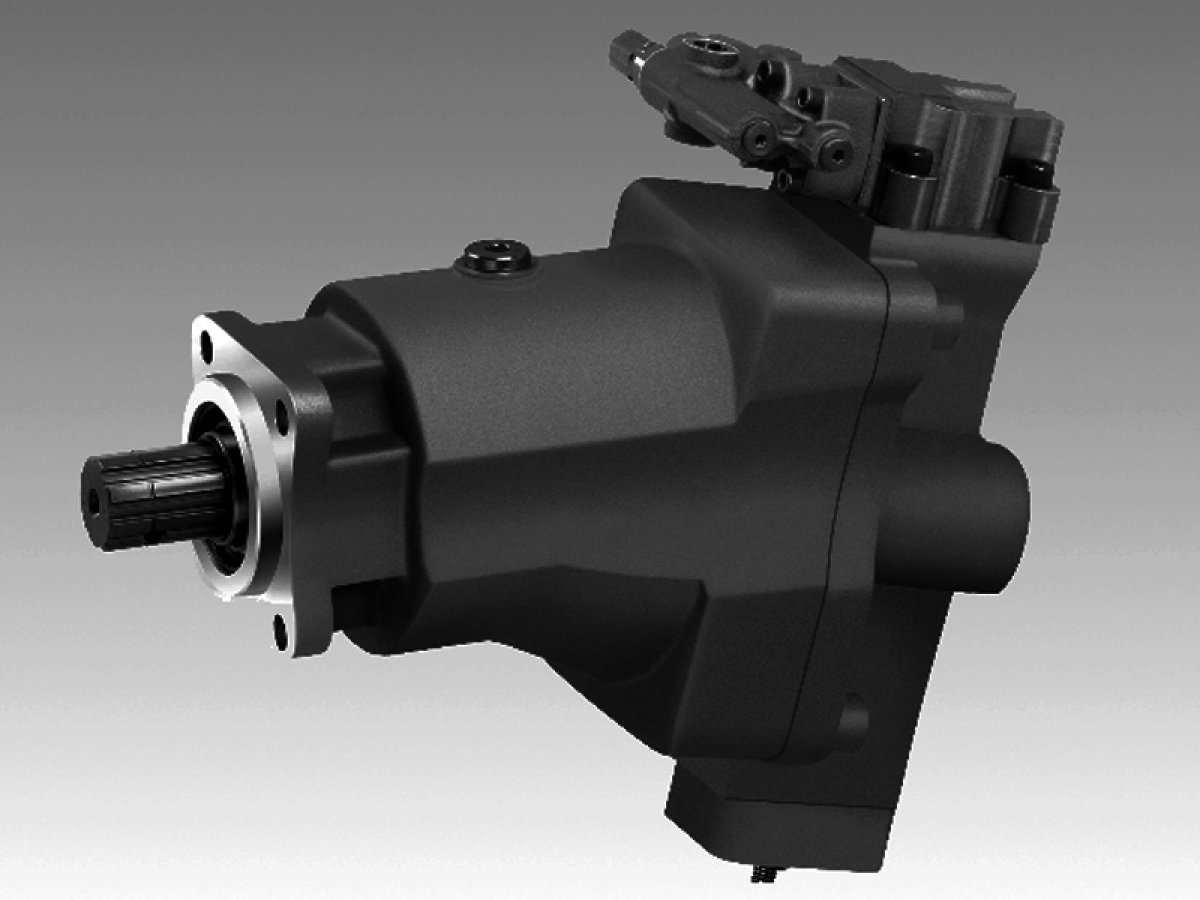

• Hydraulic axial piston pump Hydromatik.
  Type: Variable displacement for open circuit.
  Displacement: 107 cm3/rev.
  Flow @ 1500 rpm: 160,5 liters/minute.
  Max working Pressure: 300 bar.
  Max peak pressure: 350 bar.
  Rotation: Counterclockwise rotation.
  Control Type: DRS (pressure control with Load Sensing LS function).
  Shaft type: Splined 8 tooth.
  Flange type: Square with 80 mm centering diameter and 80x80 mm holes center distance.
