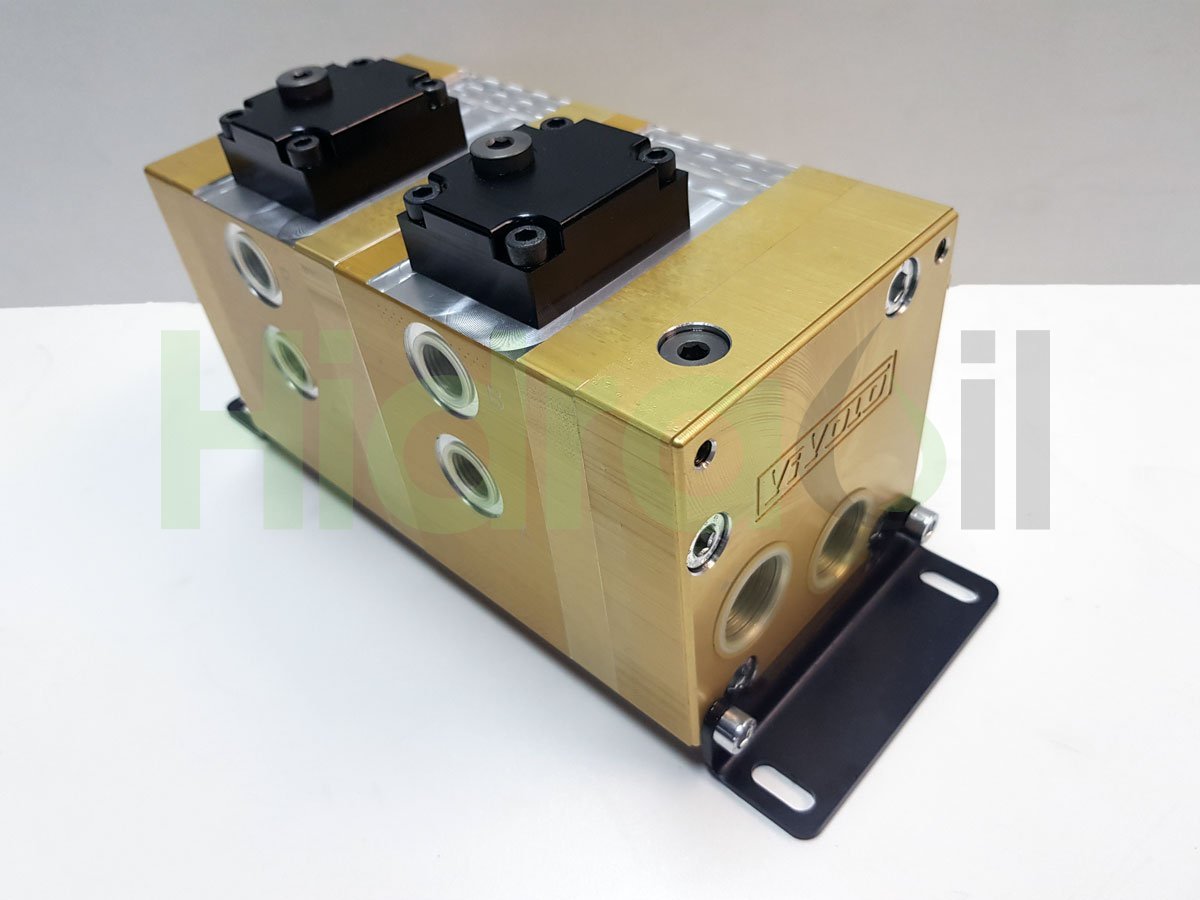

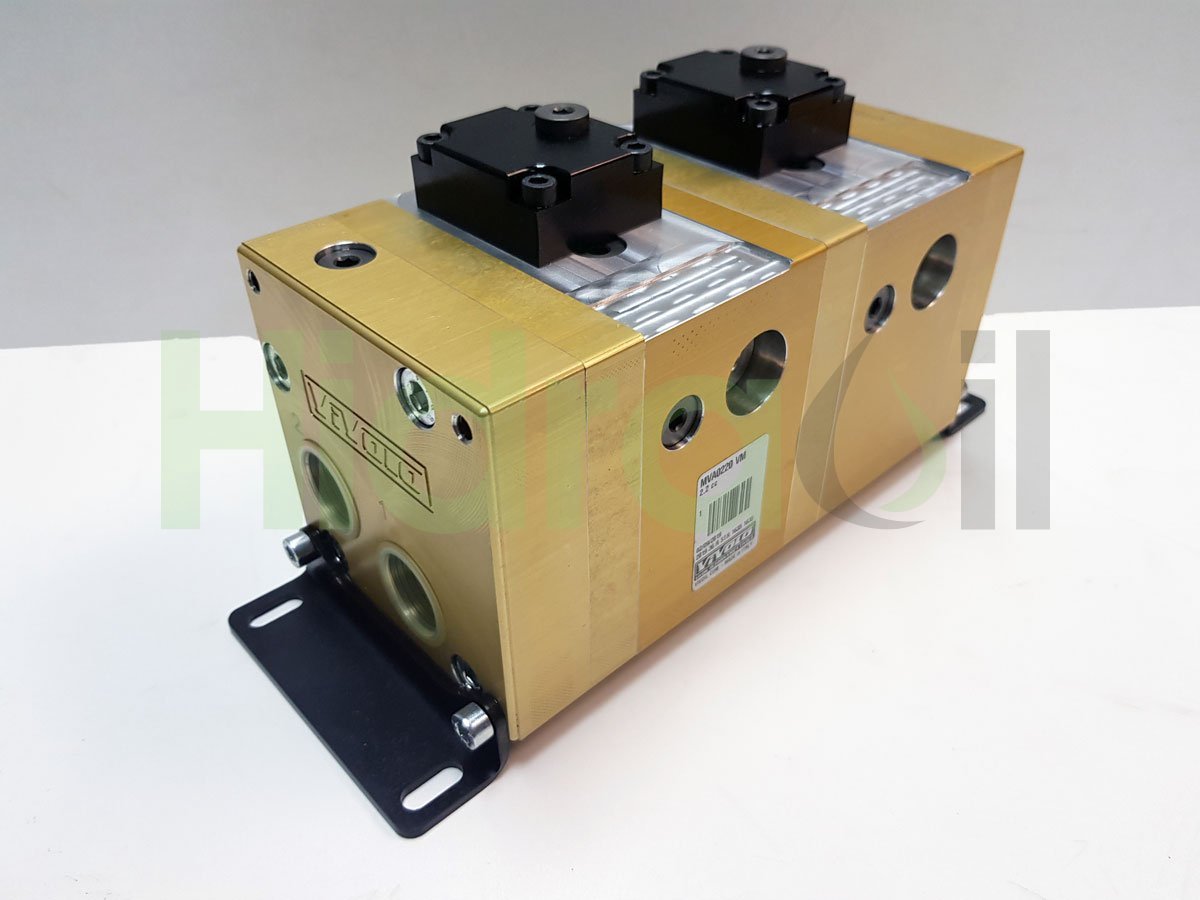

MVA0227 VM Vivolo gear flow divider 2 elements 4.3 cm3 high accuracy Vivoil
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX103015
- Brand
- Vivoil
- Identification number
- MVA0227 VM
- Other numbers
- MVA 02 27 VM MVA0227 VM MVA0227VM
- Approximate weight (kg)
- 6,6
Description
Gear Flow Divider Vivoil MIA-FD with 2 sections for applications requiring a very precise oil flow division. It is modular and expandable; each element is prepared to add CETOP NG6 modular components.
Number of elements 2 elements.
Displacements: 4.3 cm3/rev each element.
Min Oil Flow per element: 5 liters/minute.
Optimal oil flow per element: 9 liters/minute.
Max Oil Flow per element: 26 liters/minute.
A and B ports: 3/8" GAS.
P and T ports: 3/4" GAS.
Max Pressure: 250 bar.
Characteristics: High precision unit (error lower than 1-2% with differential pressure between elements up to 170 bar); auto-compensating; modular; configurable and easy to install.
Number of elements 2 elements.
Displacements: 4.3 cm3/rev each element.
Min Oil Flow per element: 5 liters/minute.
Optimal oil flow per element: 9 liters/minute.
Max Oil Flow per element: 26 liters/minute.
A and B ports: 3/8" GAS.
P and T ports: 3/4" GAS.
Max Pressure: 250 bar.
Characteristics: High precision unit (error lower than 1-2% with differential pressure between elements up to 170 bar); auto-compensating; modular; configurable and easy to install.
More information
- Category: Hydraulic Valves
- Category: Gear flow dividers
- Category: Vivoil Vivolo
- Category: MIA - FD
- Category: 2 Sections
- Availability: Inquire about stock
- Last updated: 2020-11-07 18:15:00
