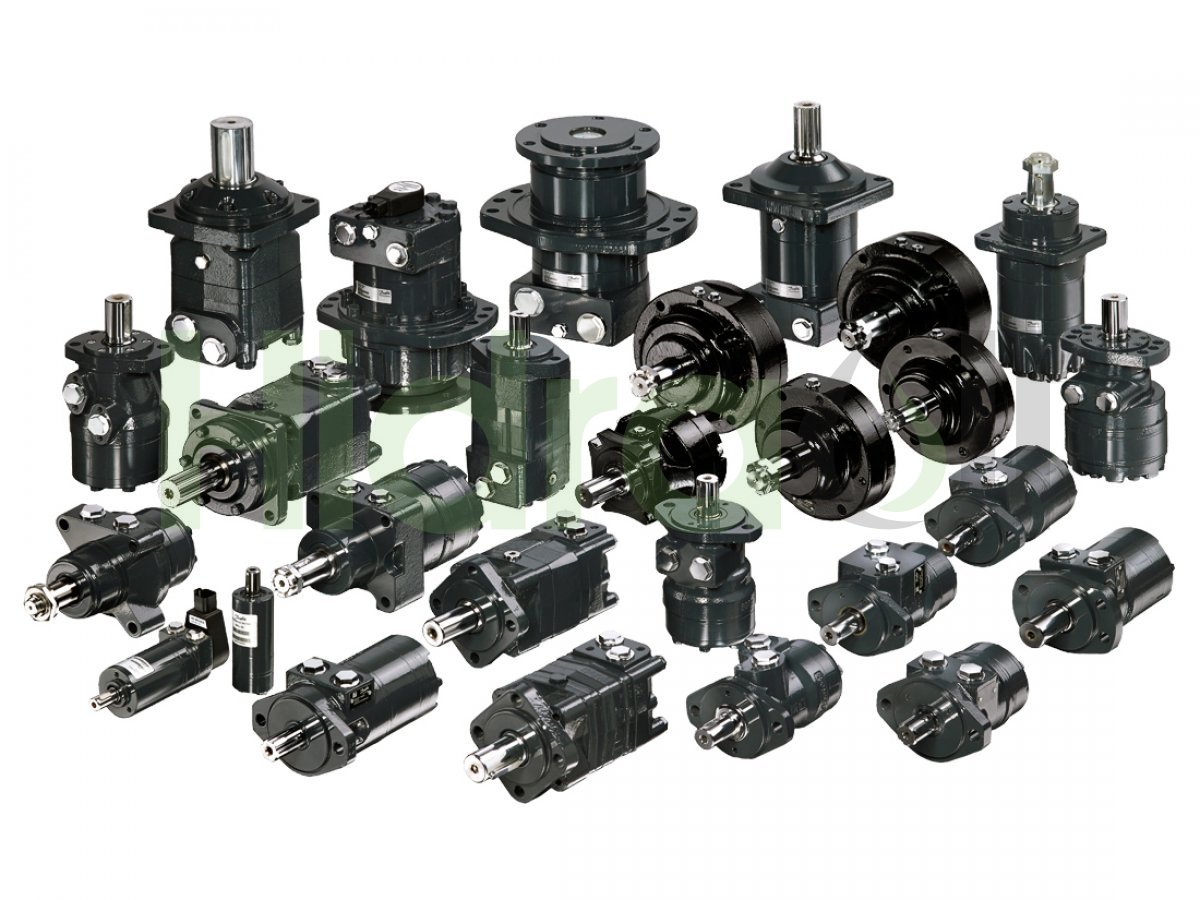

Orbital hydraulic motors White Danfoss orbital hydraulic motor

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101774
Brand
White
Identification number
Motores hidráulicos orbitales Sauer Danfoss
Other numbers
Motor hidráulico orbital Danfoss
Approximate weight (kg)
Inquire for details

Description

Sauer Danfoss offers a wide range of hydraulic orbital motors, with OMM, OMP, OMR, OMH and OMS ranges now branded White, and OMT, OMV, TMK, TMT and TMVW ranges branded Danfoss. Models and variants cover custom equipment and construction, mining, industrial and agricultural machinery.

Careful design, precision machining and controlled production provide high efficiency and help reduce machinery energy consumption.

Used in open- or closed-loop hydraulic systems requiring high torque at low to medium speeds to move moderate to heavy loads.

Danfoss orbital hydraulic motors have the following features:

Displacement: From 8 cm3/rev to 800 cm3/rev.
Rotation speeds: Up to 2500 rpm in small-sized motors and up to 600 rpm in larger orbital motors.
Torque: From 5 Nm to 3400 Nm.
Output power in kW: From 0.5 kW up to 112 kW.
Output power in HP: From 1 HP up to 150 HP.

Specifications and options available in Danfoss orbital hydraulic motors:

Hydraulic motor with corrosion-resistant parts.
High starting torque.
Reduced-length Wheel-type hydraulic motors for optimal use of their bearing capacity.
Hydraulic motors with needle or tapered roller bearings.
High load capacity and a robust universal-joint shaft design provide a long service life under demanding operating conditions.
Motors optimized in their design and manufacturing process for optimal performance at low speeds and throughout their speed range.
Ultra-compact hydraulic motors for seamless integration into applications with very limited available space.
Orbital hydraulic motors with speed sensors that allow monitoring and regulating the rotation speed.
Optional black paint finish.
They can withstand high return pressures without the need for drain piping due to their high-pressure seal.

Links to the main ranges of Danfoss/White orbital hydraulic motors:

Hydraulic Motors Danfoss OML: from 8 to 32 cm3/rev
Hydraulic Motors Danfoss OMM: from 8 to 50 cm3/rev
Hydraulic Motors Danfoss OMP: from 25 to 400 cm3/rev
Hydraulic Motors Danfoss OMPX: from 25 to 400 cm3/rev
Hydraulic Motors Danfoss OMRX: from 50 to 375 cm3/rev
Hydraulic Motors Danfoss OMS: from 80 to 500 cm3/rev
Hydraulic Motors Danfoss OMT: from 160 to 500 cm3/rev
Hydraulic Motors Danfoss OMV: from 315 to 800 cm3/rev

Links to Danfoss motors with reinforced components for heavy-duty applications:

Hydraulic Motors Danfoss TMK: from 160 to 470 cm3/rev
Hydraulic Motors Danfoss TMT: from 250 to 630 cm3/rev
Hydraulic Motors Danfoss TMVW: from 400 to 800 cm3/rev

PDF catalogs and technical data sheets for Danfoss and White Drive hydraulic orbital motors are available in the Documentation section.
