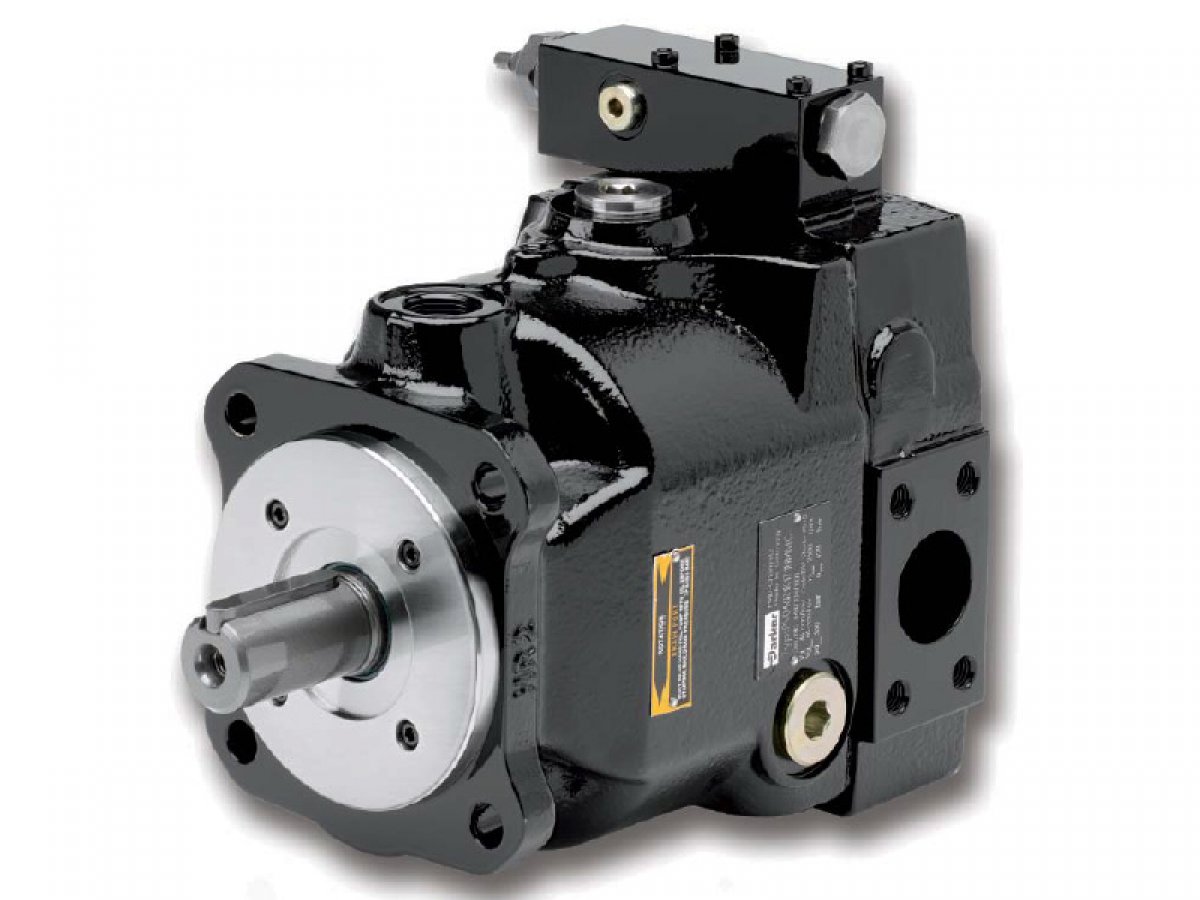

PV063R1K1T1NMMC Parker hydraulic piston pump variable displacement 63 cm3 with cylindrical shaft 40 mm
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100970
- Brand
- Parker
- Identification number
- PV063R1K1T1NMMC
- Other numbers
- PV063 R1 K1 T1 N MMC
- Approximate weight (kg)
- 59,0
Description
Type: Variable displacement for open circuit
Maximum displacement: 63 cm3/rev
Flow @ 1500 rpm: 94,5 liters/minute
Maximum working pressure: 350 bar
Maximum pressure: 420 bar
Maximum speed: 2800 rpm
Minimum speed: 400 rpm
Power at 1500 rpm and 350 bar: 61,5 kW
Rotation: CW rotation
Control type: MMC (Pressure control with integrated pilot valve)
Shaft type: Straight shaft, 40 mm diameter, with a 12 mm wide key.
Flange type: Square flange with 160 mm centering diameter and 200 mm bolt circle diameter.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Parker
- Category: PV-Plus
- Last updated: 2019-08-09 16:07:00
