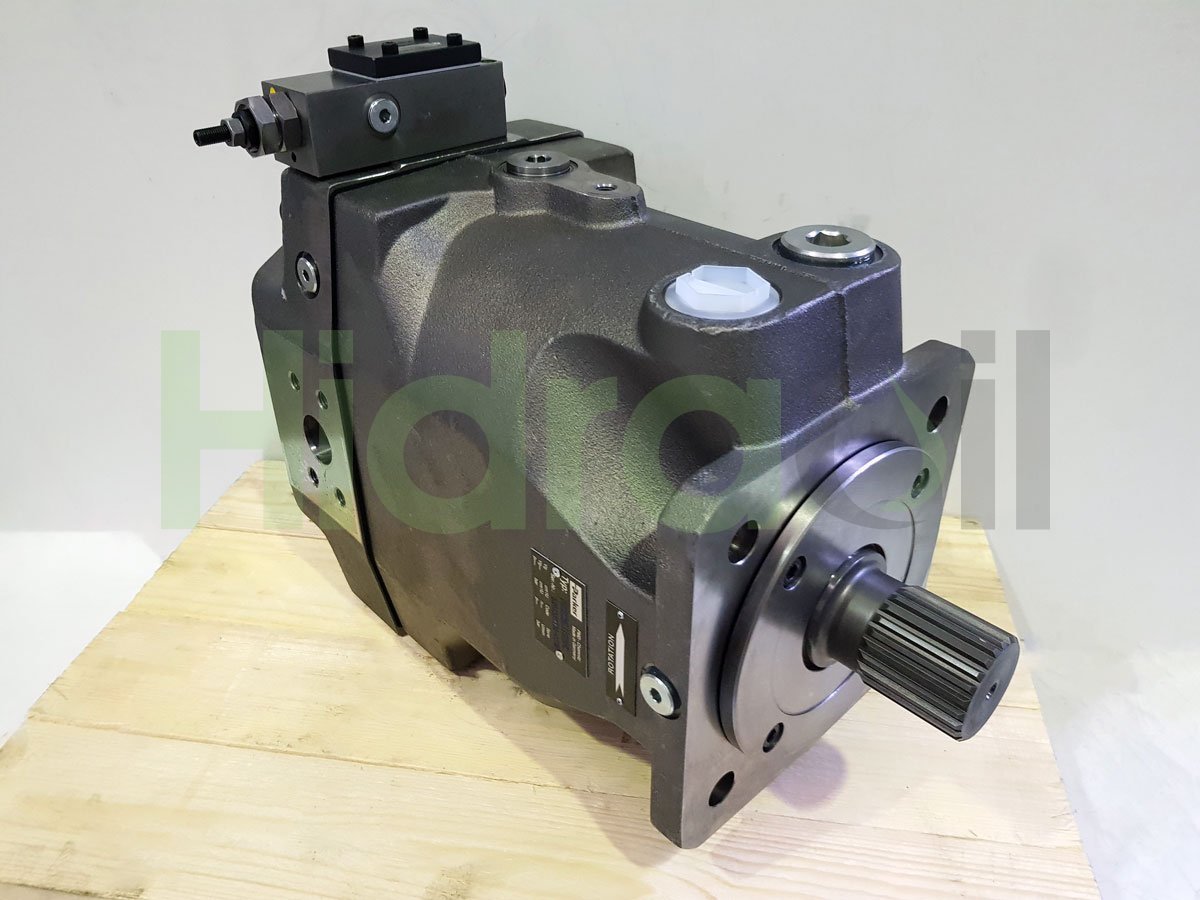

PV180R1L1T1NMFC Parker hydraulic piston pump PVPlus variable displacement 180 cm3 splined shaft DIN z24 and Load Sensing MFC control
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX103242
- Brand
- Parker
- Identification number
- PV180R1L1T1NMFC
- Other numbers
- PV180 R1 L1 T1 N MFC PVPlus
- Approximate weight (kg)
- 90,0
Description
Hydraulic piston pump for High Pressure applications.
Type: Variable displacement for open circuit.
Max displacement: 180 cm3/rev.
Flow @ 1500 rpm: 270 liters/minute.
Max working Pressure: 350 bar.
Max. Pressure: 420 bar.
Max speed: 2200 rpm.
Min. Speed: 400 rpm.
Power at 1500 rpm and 350 bar: 175 kW
Rotation: CW rotation.
Control Type: MFC (Flow Load Sensing control with integrated pilot valve).
Shaft type: Splined W50x2x24 x 9g DIN 5480.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Type: Variable displacement for open circuit.
Max displacement: 180 cm3/rev.
Flow @ 1500 rpm: 270 liters/minute.
Max working Pressure: 350 bar.
Max. Pressure: 420 bar.
Max speed: 2200 rpm.
Min. Speed: 400 rpm.
Power at 1500 rpm and 350 bar: 175 kW
Rotation: CW rotation.
Control Type: MFC (Flow Load Sensing control with integrated pilot valve).
Shaft type: Splined W50x2x24 x 9g DIN 5480.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Parker
- Category: PV-Plus
- Last updated: 2021-04-23 23:14:00
