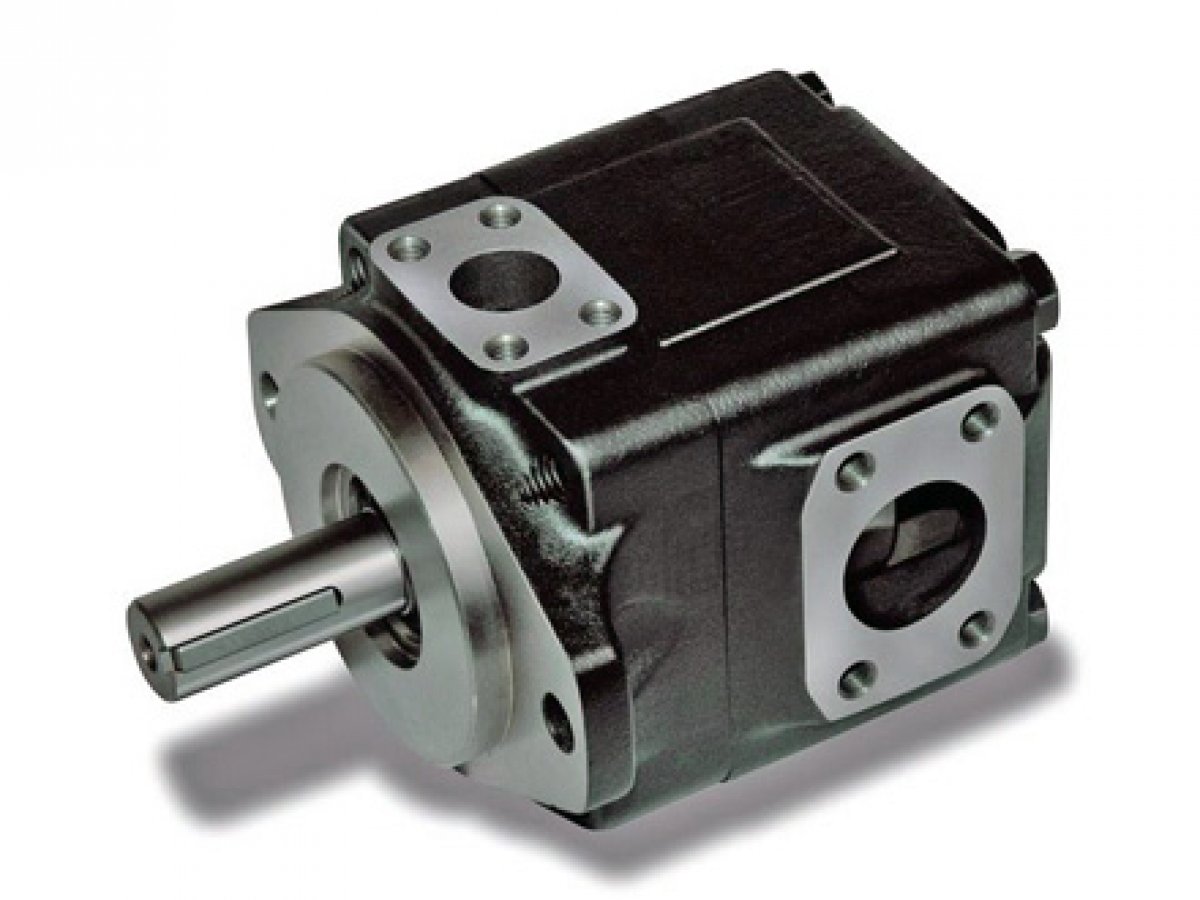

T6C-B10-1R00-B1 Denison Parker hydraulic vane pump 10 GPM straight shaft
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101134
- Brand
- Denison
- Identification number
- T6C-B10-1R00-B1
- Other numbers
- T6C-010-1R00-B1 T6CB101R00B1 T6C0101R00B1 T6C0101R01B1 T6C0101R02B1 T6C0101R03B1
- Approximate weight (kg)
- 15,7
Description
Type: Fixed displacement.
Displacement: 34.1 cm3/rev.
Oil flow: 10 gpm.
Flow at 1500 rpm and 0 bar: 51.1 liters/minute.
Maximum working pressure: 240 bar.
Minimum speed: 600 rpm.
Maximum speed: 2800 rpm.
Flange type: Flange with 101.6 mm centering diameter, 2 mounting holes and 146 mm hole spacing.
Shaft type: Straight shaft, 22.2 mm diameter (SAE B type).
Rotation: Clockwise rotation.
Outlet port position: Depending on part number:
00: Opposite the inlet port.
01: Same side as inlet port.
02: 90º clockwise from the inlet port.
03: 90º counterclockwise from the inlet port.
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Denison
- Category: Single pumps
- Category: T6C
- Category: Straight shaft D22.2 mm
- Last updated: 2015-05-03 13:05:26
