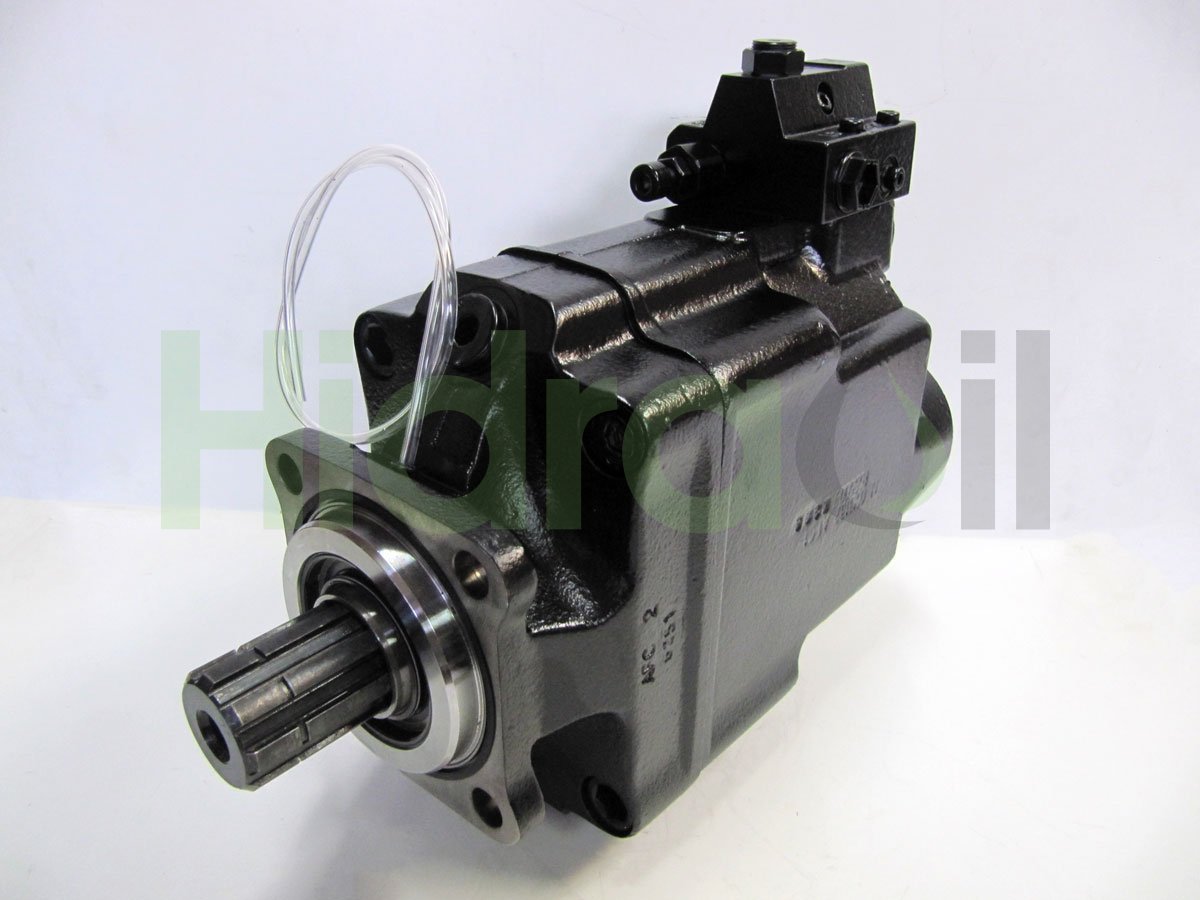

TXV120 0515705 Hydro Leduc hydraulic piston pump variable displacement 120 cm3 LS splined shaft z8 CCW rotation
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101518
- Brand
- Hydro Leduc
- Identification number
- TXV120 0515705
- Other numbers
- TXV 120 TXV1200515705 load sensing
- Approximate weight (kg)
- 26,8
Description
Type: Variable displacement for open circuits, with LS (load-sensing) displacement control.
Maximum displacement: 120 cm3/rev.
Flow @ 1500 rpm: 180 liters/minute.
Maximum working pressure: 360 bar.
Maximum intermittent pressure: 380 bar (max 5%).
Maximum rotational speed: 2100 rpm.
Rotation: Counterclockwise rotation.
Control type: Pressure and flow control, LS (load sensing) system.
Shaft type: Splined 8 tooth.
Flange type: Square flange with 80 mm centering diameter and mounting holes on a square pattern with 80 mm side spacing.
More information
- Category: Hydraulic Pumps
- Category: Piston
- Category: Axial
- Category: Variable displacement
- Category: Hydro Leduc
- Category: TXV
- Category: 120cc
