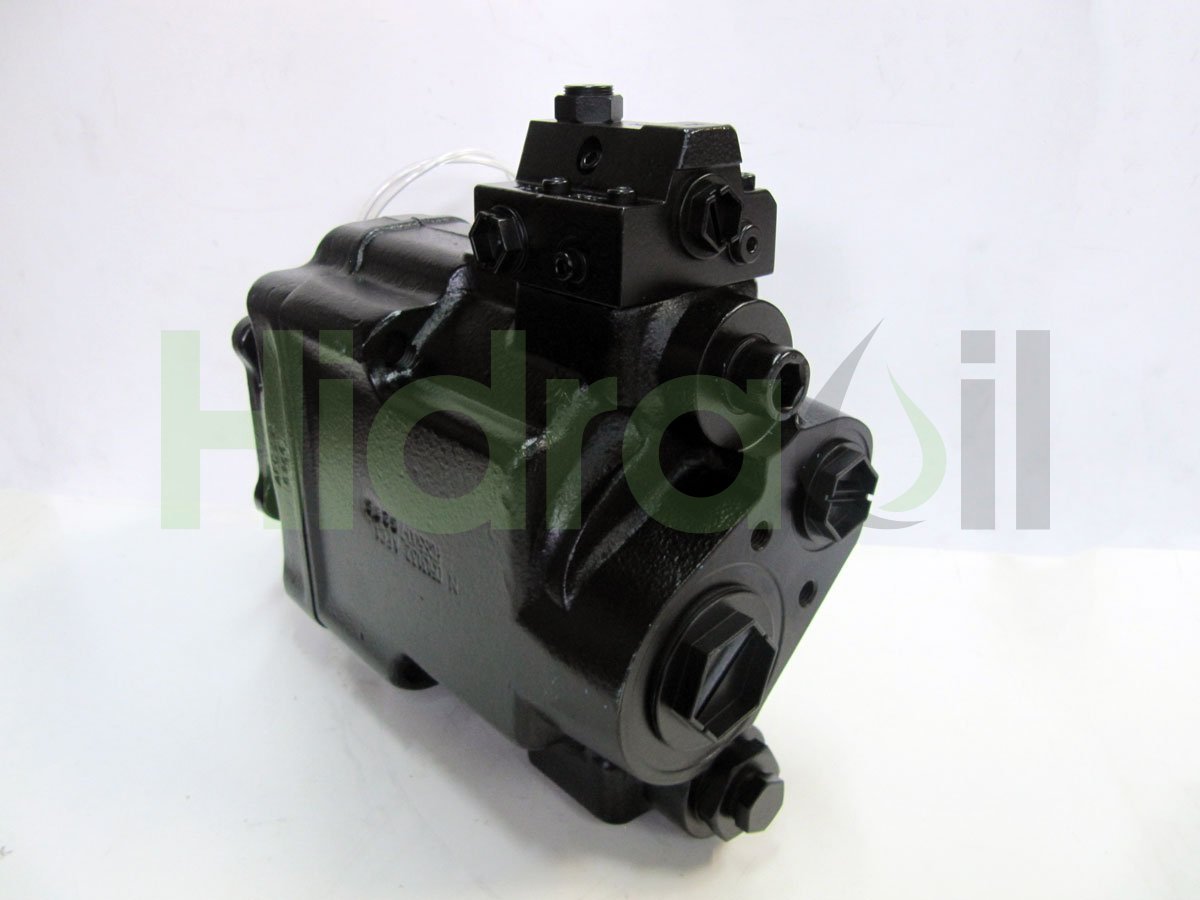

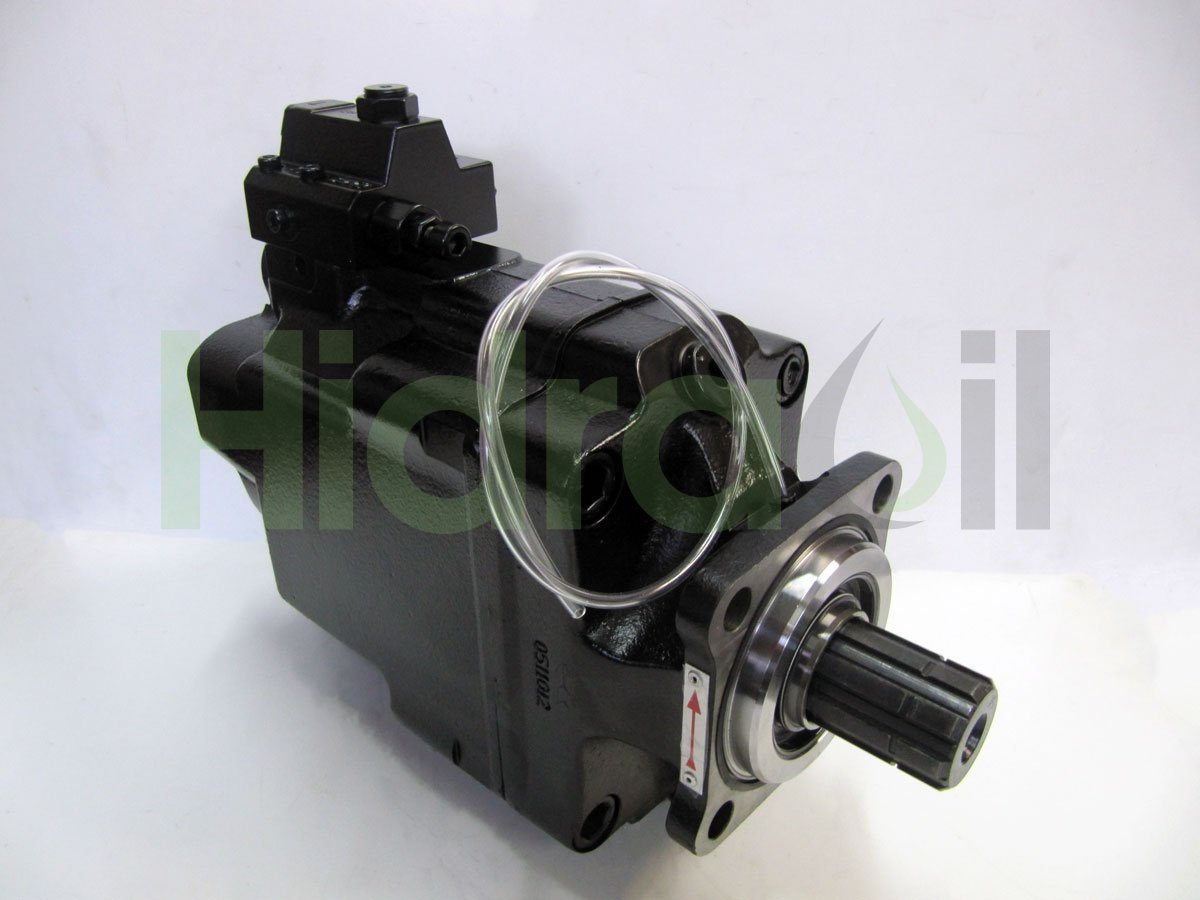

TXV150 0518600 Hydro Leduc hydraulic piston pump variable displacement 150 cm3 LS splined shaft z8 CW rotation

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101521
Brand
Hydro Leduc
Identification number
TXV150 0518600
Other numbers
TXV 150 TXV1500518600 load sensing
Approximate weight (kg)
27,2

Description

Variable-displacement hydraulic axial piston pump.
Type: Variable displacement for open circuits, with LS (load-sensing) displacement control.
Maximum displacement: 150 cm3/rev.
Flow @ 1500 rpm: 225 liters/minute.
Maximum working pressure: 310 bar.
Maximum intermittent pressure: 330 bar (max 5%).
Maximum rotational speed: 2000 rpm.
Rotation: Clockwise rotation.
Control type: Pressure and flow control, LS (load sensing) system.
Shaft type: Splined 8 tooth.
Flange type: Square flange with 80 mm centering diameter and mounting holes on a square pattern with 80 mm side spacing.
