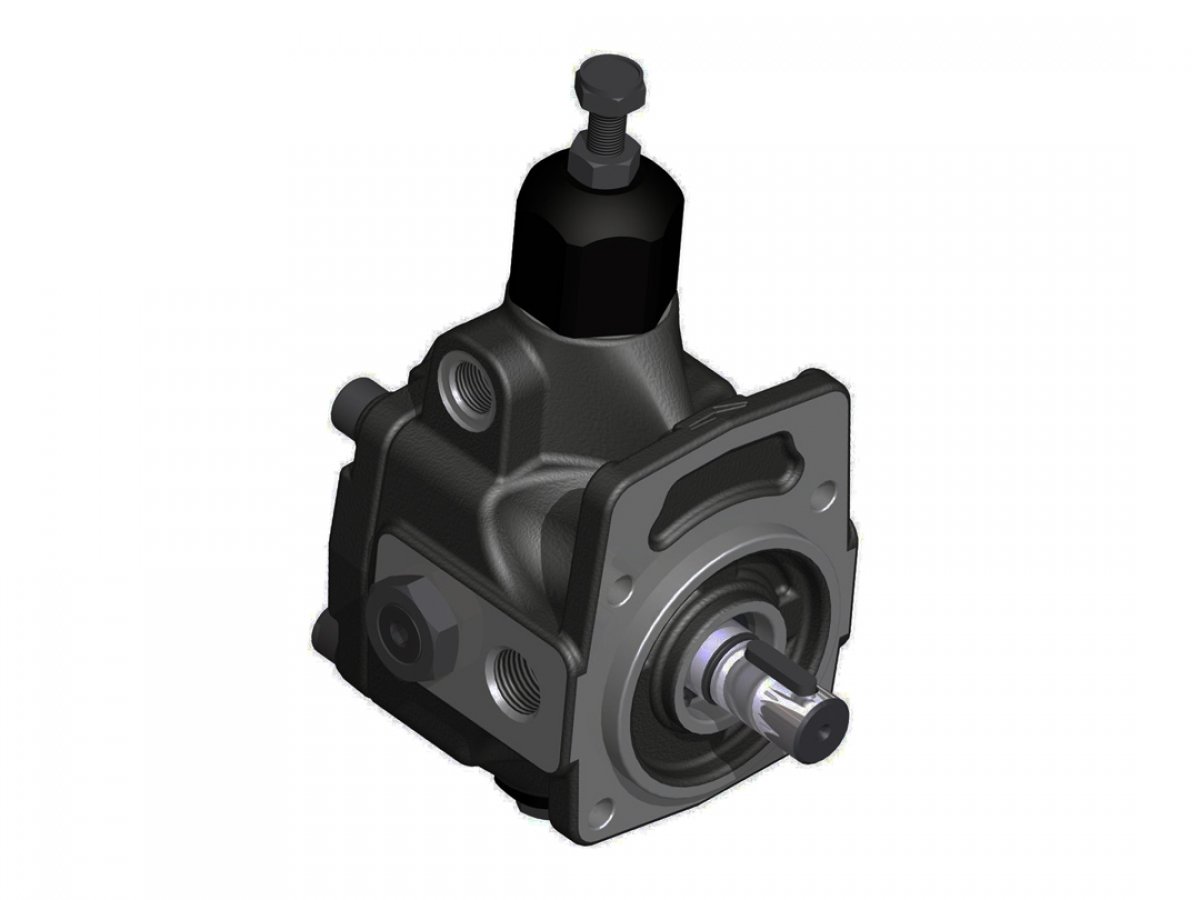

01 PLP 05-16 FHRM-A Berarma hydraulic variable vane pump 16 cm3 with mechanical regulator thru-drive shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX105059
- Brand
- Berarma
- Identification number
- 01 PLP 05-16 FHRM-A
- Other numbers
- 01PLP05-16FHRM-A 01PLP0516FHRMA
- Approximate weight (kg)
- 7,4
Description
Hydraulic variable displacement vane pump with mechanical regulator.
Nominal displacement: 16 cm3/rev.
Flow @ 1450 rpm: 23 liters/minute.
Max working Pressure: 120 bar.
Speed range: From 800 up to 1800 rpm.
Pressure setting range: From 20 up to 120 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Shaft type: Parallel diameter 20 mm con chaveta from ancho 6 mm.
Flange type: Tipo ISO from 4 agujeros con centraje from diámetro 80 mm.
Inlet port: 3/4" GAS.
Outlet port: 1/2" GAS.
Drain port: 3/8" GAS.
Campo from regulación from cilindrada máxima: Permite regular la cilindrada máxima up to un valor mínimo from 3.1c/rev.
Max pressure allowed in drain port: 1 bar.
Notes: Esta versión from bomba tiene predisposición para acoplar otra bomba en su parte posterior para convertirla en bomba doble (tándem).
Nominal displacement: 16 cm3/rev.
Flow @ 1450 rpm: 23 liters/minute.
Max working Pressure: 120 bar.
Speed range: From 800 up to 1800 rpm.
Pressure setting range: From 20 up to 120 bar.
Rotation: Clockwise rotation (looking at the shaft end of the pump).
Shaft type: Parallel diameter 20 mm con chaveta from ancho 6 mm.
Flange type: Tipo ISO from 4 agujeros con centraje from diámetro 80 mm.
Inlet port: 3/4" GAS.
Outlet port: 1/2" GAS.
Drain port: 3/8" GAS.
Campo from regulación from cilindrada máxima: Permite regular la cilindrada máxima up to un valor mínimo from 3.1c/rev.
Max pressure allowed in drain port: 1 bar.
Notes: Esta versión from bomba tiene predisposición para acoplar otra bomba en su parte posterior para convertirla en bomba doble (tándem).
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Variable displacement
- Category: Berarma
- Category: PLP
- Category: plp05
- Category: Thru-drive shaft (-A)
- Last updated: 2022-04-30 06:11:00
