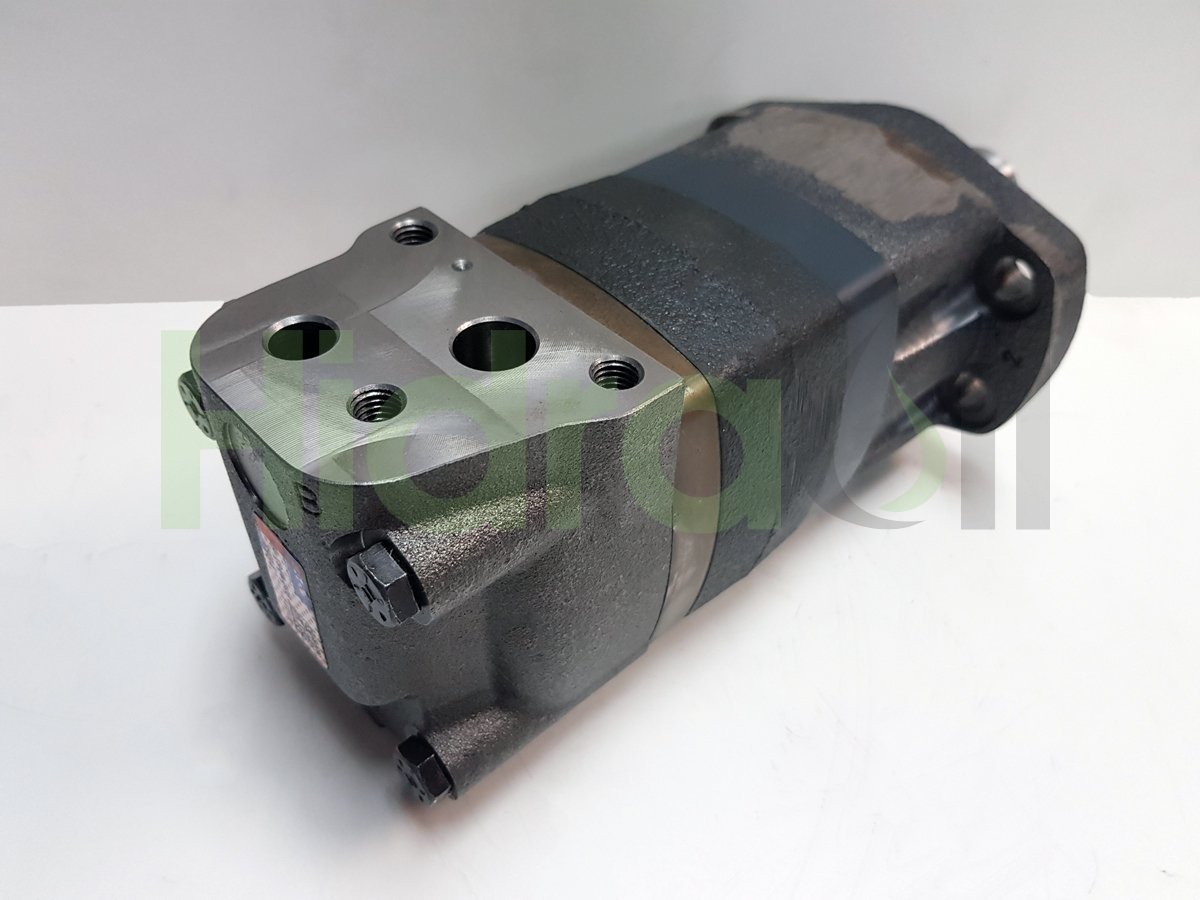

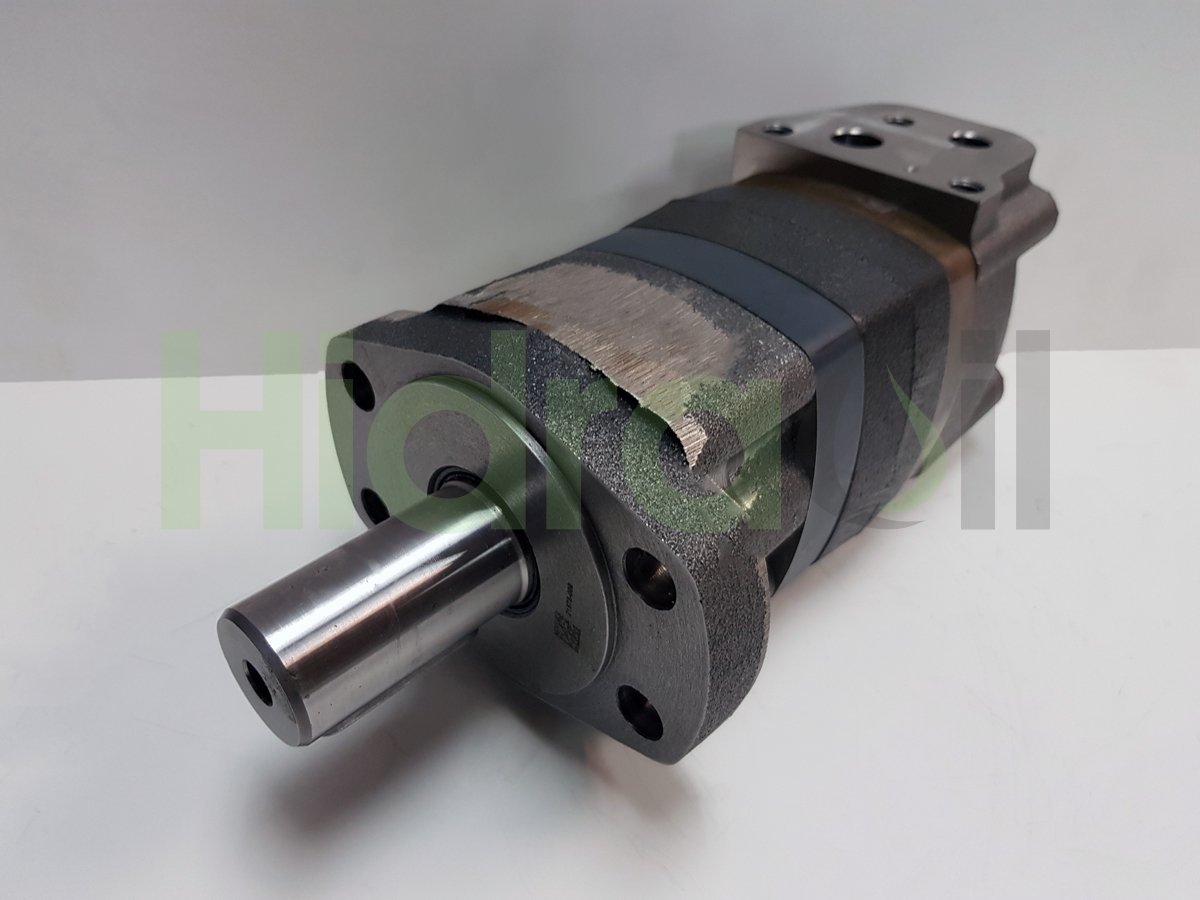

104-1944-006 Char-Lynn Eaton hydraulic orbital motorl 245 cm3 with cylindrical shaft 32 mm and magneto flange
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102409
- Brand
- Char-Lynn Eaton
- Identification number
- 104-1944-006
- Other numbers
- 104-1944-004 104-1944-005 motor hidráulico charlin charlyn charlynn
- Approximate weight (kg)
- 11,5
Description
Motor hidráulico Eaton Char-Lynn from tipo orbital for low speed and high torque applications.
Shaft type: Parallel diameter 32 mm.
Flange type: Tipo Magneto from 4 taladros con centraje from diámetro 82,5 mm.
Displacement: 245 cm3/rev.
Side Ports: -.
Drain Port: -.
Max speed: 308 rpm (intermittent operation: 462 rpm)
Max. Torque: 660 Nm (intermittent operation: 820 Nm)
Max. Pressure Drop: 205 bar (intermittent operation: 260 bar; peak load:310 bar)
Max oil flow: 75 liters/minute (intermittent operation: 115 liters/minute)
Shaft type: Parallel diameter 32 mm.
Flange type: Tipo Magneto from 4 taladros con centraje from diámetro 82,5 mm.
Displacement: 245 cm3/rev.
Side Ports: -.
Drain Port: -.
Max speed: 308 rpm (intermittent operation: 462 rpm)
Max. Torque: 660 Nm (intermittent operation: 820 Nm)
Max. Pressure Drop: 205 bar (intermittent operation: 260 bar; peak load:310 bar)
Max oil flow: 75 liters/minute (intermittent operation: 115 liters/minute)
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Char-Lynn Eaton
- Category: 2000 Series
- Availability: Inquire about stock
- Last updated: 2019-11-13 11:33:00
