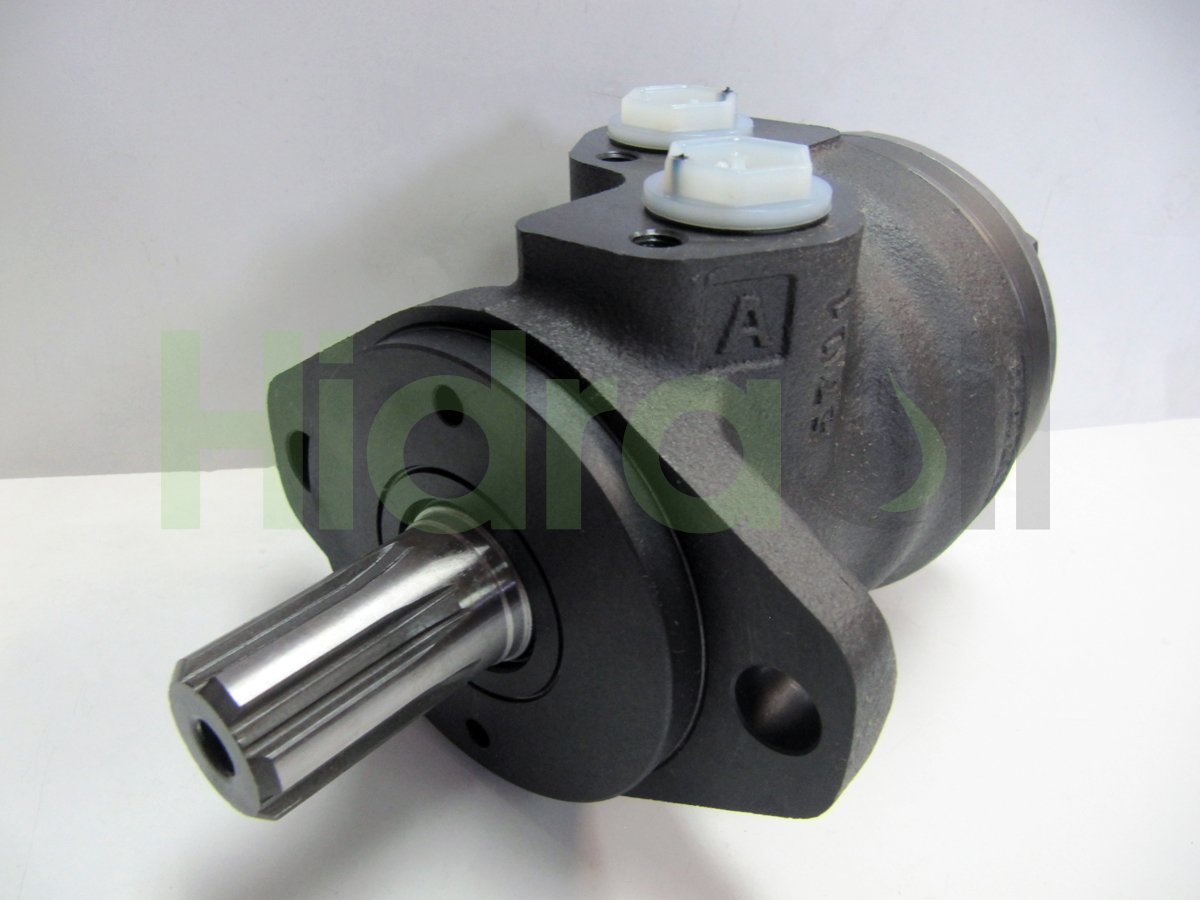

11185567 OMR X 125 White hydraulic orbital motor 125 cm3 with splined shaft z6 and 1 inch diameter
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102143
- Brand
- White
- Identification number
- 11185567 OMR X 125
- Other numbers
- OMRX 125 OMRX125
- Approximate weight (kg)
- 7,2
Description
Hydraulic orbital motor White (former Danfoss / Sauer Danfoss) OMRX range for high torque and low/medium speed applications.
Feature: assembles Check Valves and High Pressure Shaft Seal (HPS).

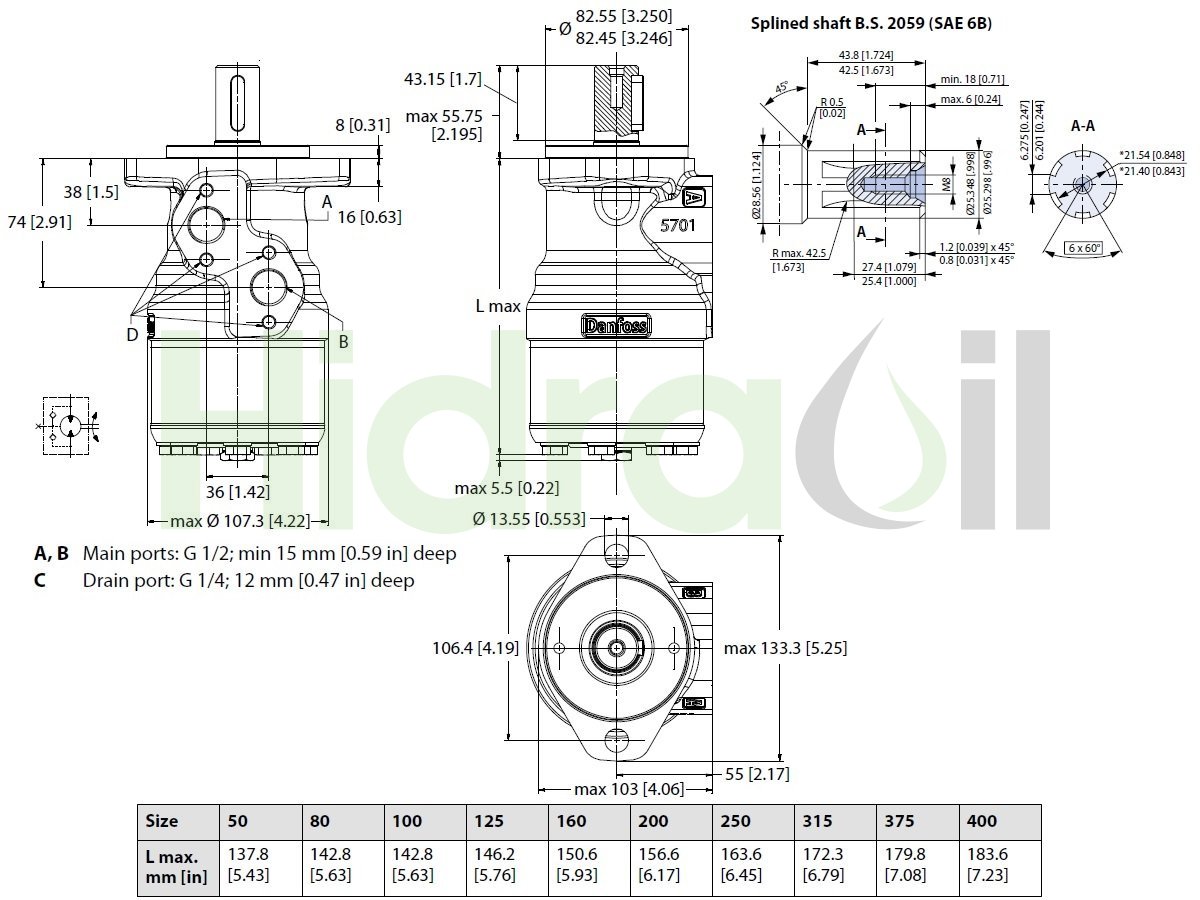

Shaft type: Splined from 6 estrías con 1 pulgada from diámetro exterior y rosca M8. Eje según norma B.S. 2059 - SAE 6B. Mecánicamente este eje permite un par motor máximo from 400 Nm.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 124.1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Velocidad from giro máxima: 475 rpm (intermittent operation: 600 rpm).
Par motor máximo: 330 Nm (intermittent operation: 360 Nm). Atención al máximo par motor permitido por el eje from este motor (340 Nm).
Max. Output Power: 14.0 kW (intermittent operation: 17.5 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 295 Nm.
Min. starting torque at max. press. drop int.: 335 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Feature: assembles Check Valves and High Pressure Shaft Seal (HPS).
Shaft type: Splined from 6 estrías con 1 pulgada from diámetro exterior y rosca M8. Eje según norma B.S. 2059 - SAE 6B. Mecánicamente este eje permite un par motor máximo from 400 Nm.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Displacement: 124.1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Velocidad from giro máxima: 475 rpm (intermittent operation: 600 rpm).
Par motor máximo: 330 Nm (intermittent operation: 360 Nm). Atención al máximo par motor permitido por el eje from este motor (340 Nm).
Max. Output Power: 14.0 kW (intermittent operation: 17.5 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 295 Nm.
Min. starting torque at max. press. drop int.: 335 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMRX
- Category: Splined shaft z6 - Flange A2
- Last updated: 2019-04-22 13:09:00
