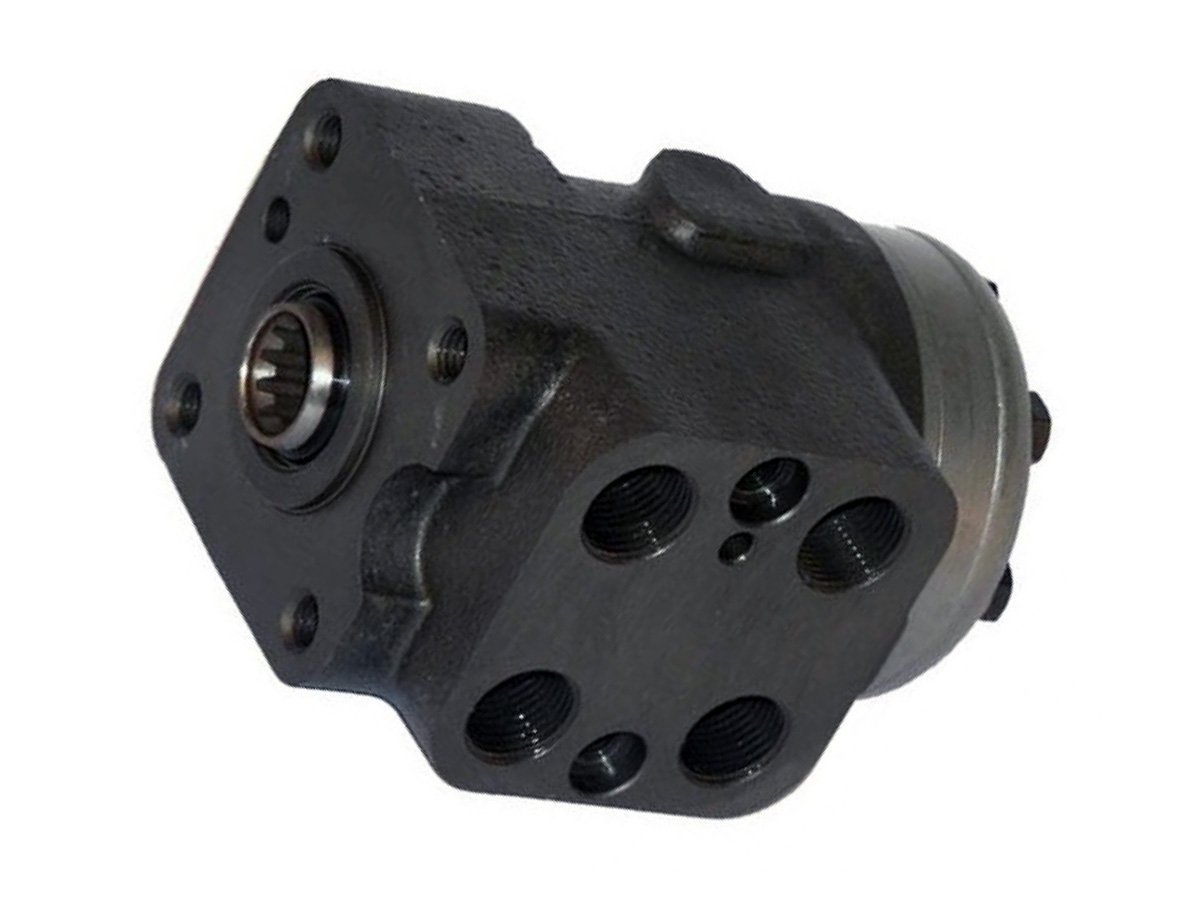

150-0173 OSPB 100 CN Sauer Danfoss steering unit orbitrol 100 cm3 3/4-16 UNF closed center without valves
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101286
- Brand
- Sauer Danfoss
- Identification number
- 150-0173 OSPB 100 CN
- Other numbers
- OSPB100CN 1500173
- Approximate weight (kg)
- 5,4
Description
Steering Unit Orbitrol from centro cerrado sin válvulas.
Displacement: 100 cm3/rev.
Type: Centro cerrado (caudal variable es necesario), sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4-16 UNF.
Oil flow: 10 liters/minute.
Max pressure in P: 175 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
Displacement: 100 cm3/rev.
Type: Centro cerrado (caudal variable es necesario), sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4-16 UNF.
Oil flow: 10 liters/minute.
Max pressure in P: 175 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
More information
- Category: Actuators
- Category: Steering Units
- Category: Sauer Danfoss
- Category: OSPB-CN
- Last updated: 2016-03-08 16:54:51
