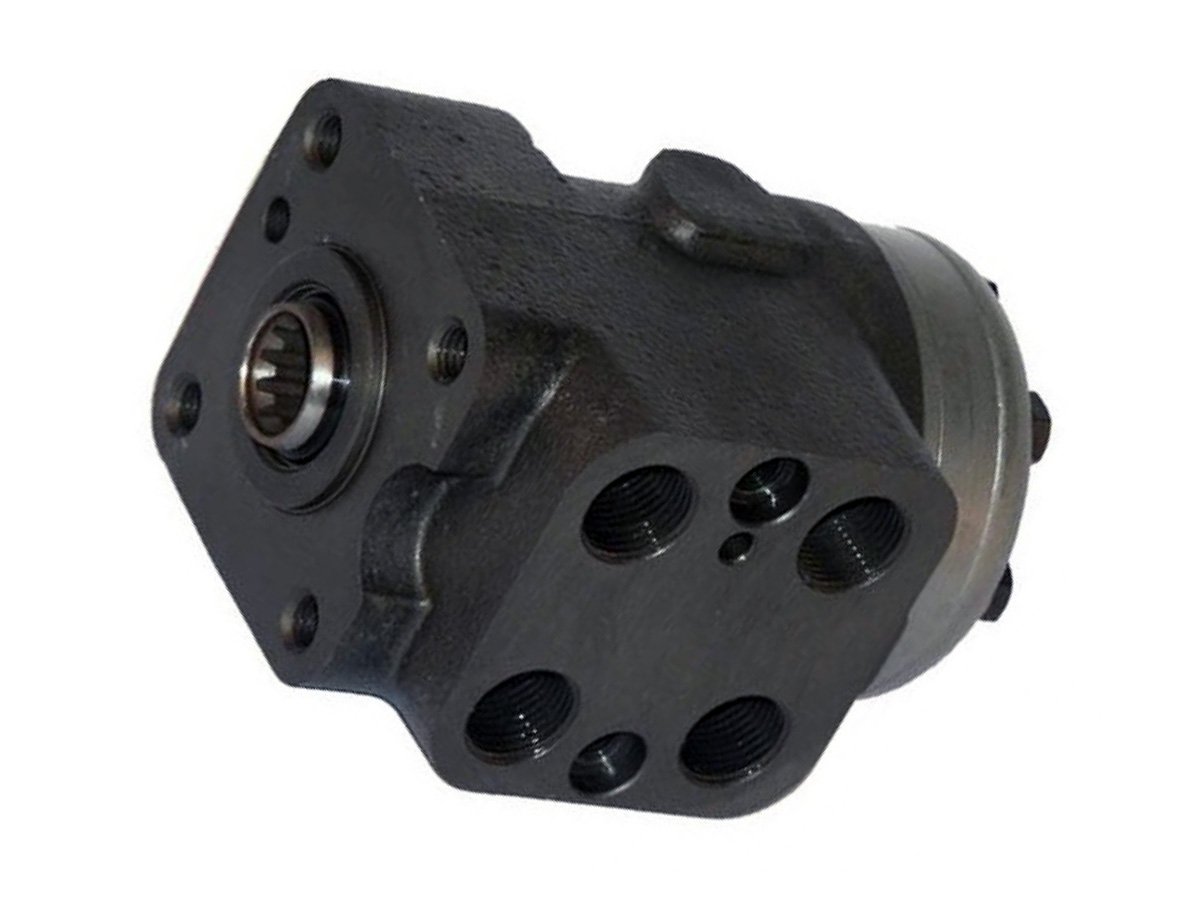

150G4104 OSPB 315 CN Sauer Danfoss steering unit orbitrol 315 cm3 closed center without valves
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101025
- Brand
- Sauer Danfoss
- Identification number
- 150G4104 OSPB 315 CN
- Other numbers
- OSPB315CN
- Approximate weight (kg)
- 6,2
Description
Steering Unit Orbitrol from centro cerrado sin válvulas.
Displacement: 315 cm3/rev.
Type: Centro cerrado (caudal variable es necesario), sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4-16 UNF.
Oil flow: 32 liters/minute.
Max pressure in P: 175 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
Displacement: 315 cm3/rev.
Type: Centro cerrado (caudal variable es necesario), sin reacción sobre el volante cuando hay impacto en las ruedas y el conductor no está utilizando la dirección.
Ports size: 3/4-16 UNF.
Oil flow: 32 liters/minute.
Max pressure in P: 175 bar.
Max pressure in T: 40 bar.
Max pressure in L and R: 280 bar.
More information
- Category: Actuators
- Category: Steering Units
- Category: Sauer Danfoss
- Category: OSPB-CN
- Last updated: 2015-03-31 15:22:49
