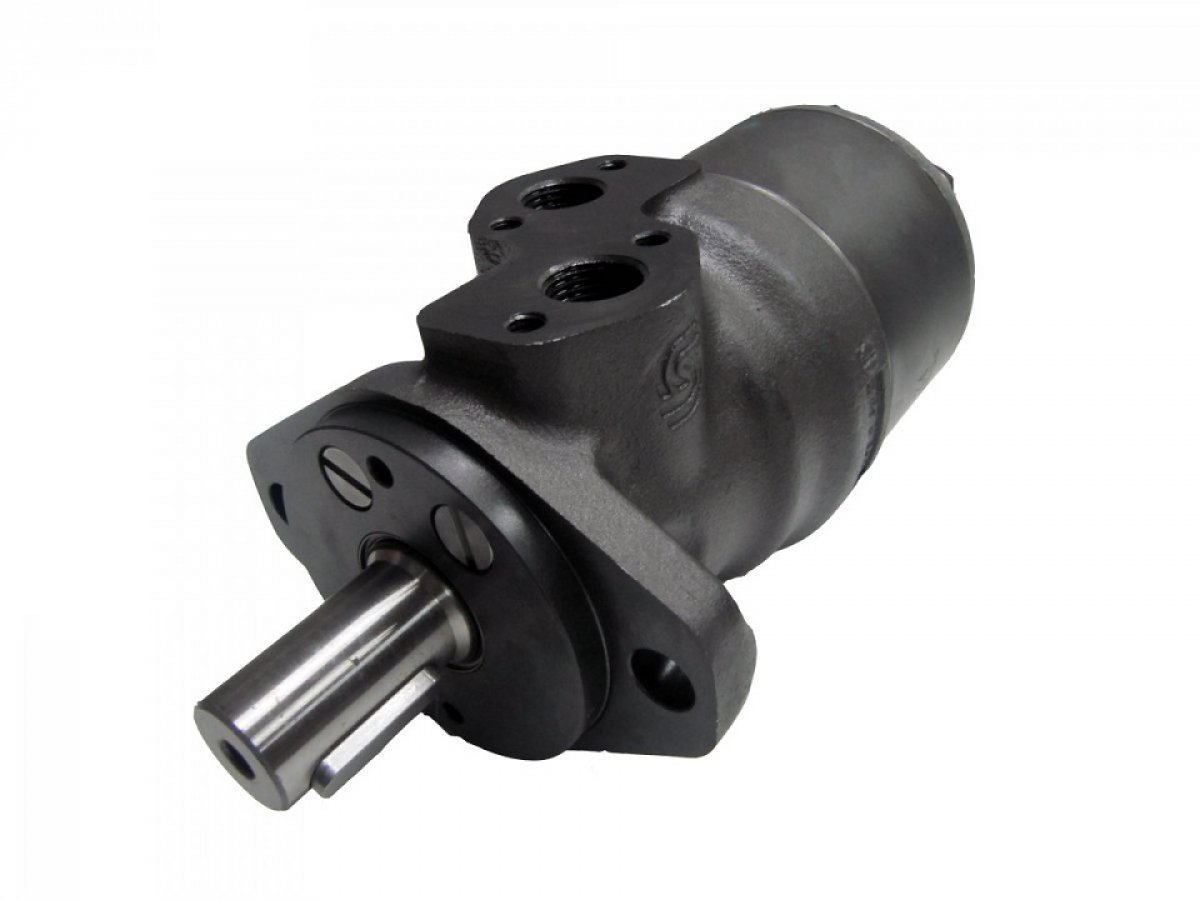

151-0208 OMR 125 Sauer Danfoss hydraulic orbital motor 125 cm3 straight shaft 32 mm
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100121
- Brand
- Sauer Danfoss
- Identification number
- 151-0208 OMR 125
- Other numbers
- 1510208 OMR125
- Approximate weight (kg)
- 7,2
Description
Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gerotor/Geroller width (geroller): 21,8 mm
Displacement: 125,7 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 475 rpm (intermittent operation: 600 rpm)
Max. Torque: 300 Nm (intermittent operation: 340 Nm; peak load:370 Nm)
Max. Output Power: 12,5 kW (intermittent operation: 14,5 kW)
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 9 bar
Min. starting torque at max. press. drop cont.: 250 Nm
Min. starting torque at max. press. drop int.: 280 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gerotor/Geroller width (geroller): 21,8 mm
Displacement: 125,7 cm3
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 475 rpm (intermittent operation: 600 rpm)
Max. Torque: 300 Nm (intermittent operation: 340 Nm; peak load:370 Nm)
Max. Output Power: 12,5 kW (intermittent operation: 14,5 kW)
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 9 bar
Min. starting torque at max. press. drop cont.: 250 Nm
Min. starting torque at max. press. drop int.: 280 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 32 mm
- Category: Flange Tipo A2
- Last updated: 2015-10-06 22:34:37
