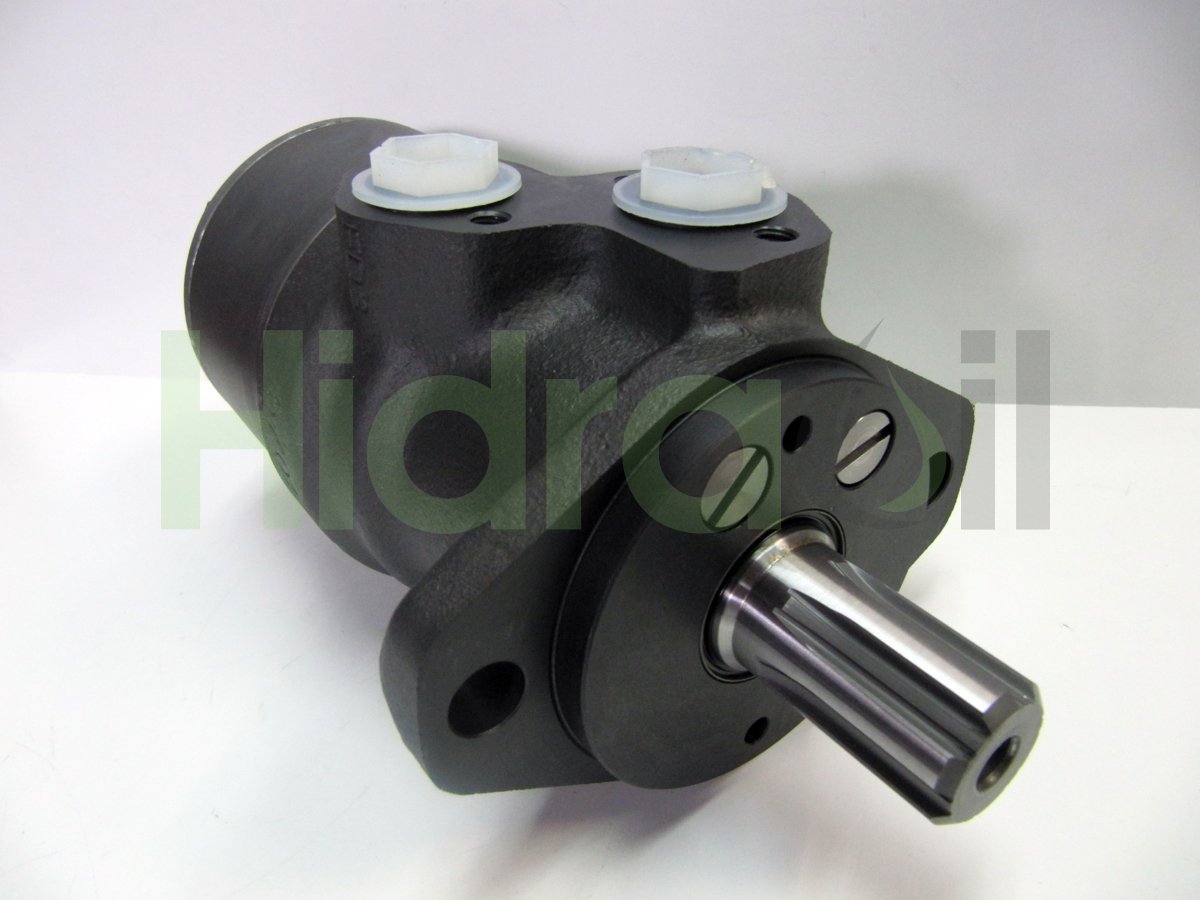

151-0237 OMR 100 Sauer Danfoss hydraulic orbital motor 100 cm3 with splined shaft z6 and 1 inch diameter
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102150
- Brand
- Sauer Danfoss
- Identification number
- 151-0237 OMR 100
- Other numbers
- 151-0237-5 OMR100 15102375 151 0237 5
- Approximate weight (kg)
- 7,0
Description
Hydraulic Orbital Motor for Low speed and High Torque applications con retén del eje reforzado.
Shaft type: Splined from 6 estrías con 1 pulgada from diámetro exterior y rosca M8. Eje según norma B.S. 2059 - SAE 6B. Mecánicamente este eje permite un par motor máximo from 400 Nm.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gerotor/Geroller width: 17.4 mm.
Displacement: 99.8 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 600 rpm (intermittent operation: 750 rpm).
Max. Torque: 240 Nm (intermittent operation: 280 Nm; peak load:320 Nm).
Max. Output Power: 13 kW (intermittent operation: 15 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 200 Nm.
Min. starting torque at max. press. drop int.: 230 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 6 estrías con 1 pulgada from diámetro exterior y rosca M8. Eje según norma B.S. 2059 - SAE 6B. Mecánicamente este eje permite un par motor máximo from 400 Nm.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gerotor/Geroller width: 17.4 mm.
Displacement: 99.8 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 600 rpm (intermittent operation: 750 rpm).
Max. Torque: 240 Nm (intermittent operation: 280 Nm; peak load:320 Nm).
Max. Output Power: 13 kW (intermittent operation: 15 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 10 bar.
Min. starting torque at max. press. drop cont.: 200 Nm.
Min. starting torque at max. press. drop int.: 230 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Splined shaft z6
- Availability: Inquire about stock
- Last updated: 2019-04-22 13:48:00
