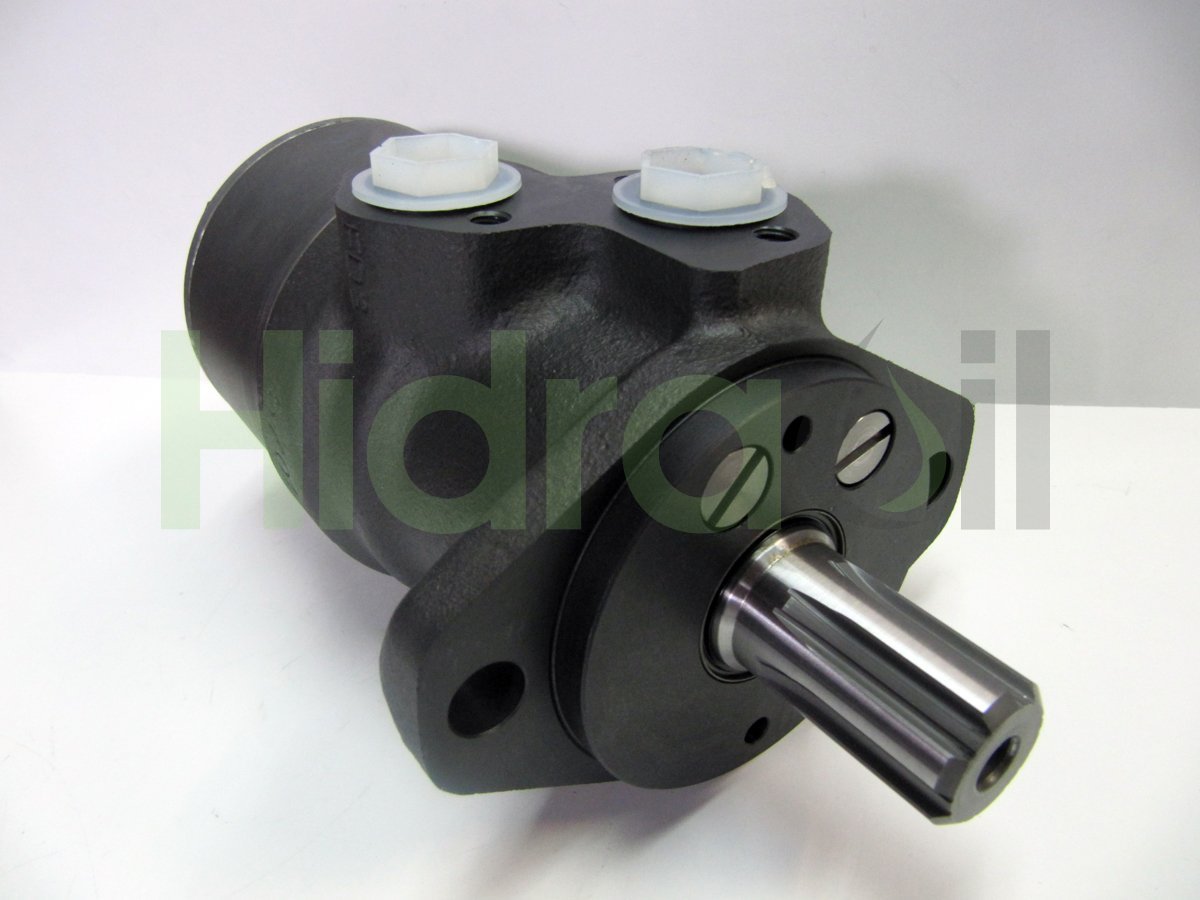

151-0238 OMR 160 Sauer Danfoss hydraulic orbital motor 160 cm3 splined shaft z6
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101435
- Brand
- Sauer Danfoss
- Identification number
- 151-0238 OMR 160
- Other numbers
- 1510238 151 0238 OMR160 151-0238-5 15102385 151 0238 5
- Approximate weight (kg)
- 7,5
Description
Hydraulic Orbital Motor for Low speed and High Torque applications con retén del eje reforzado.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 20,8 mm
Displacement: 159,6 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 375 rpm (intermittent operation: 470 rpm)
Max. Torque: 360 Nm (intermittent operation: 430 Nm; peak load:460 Nm)
Max. Output Power: 12.5 kW (intermittent operation: 14 kW)
Max. Pressure Drop: 165 bar (intermittent operation: 200 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 7 bar
Min. starting torque at max. press. drop cont.: 300 Nm
Min. starting torque at max. press. drop int.: 350 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 20,8 mm
Displacement: 159,6 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Drain Port: 1/4" GAS
Max speed: 375 rpm (intermittent operation: 470 rpm)
Max. Torque: 360 Nm (intermittent operation: 430 Nm; peak load:460 Nm)
Max. Output Power: 12.5 kW (intermittent operation: 14 kW)
Max. Pressure Drop: 165 bar (intermittent operation: 200 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 7 bar
Min. starting torque at max. press. drop cont.: 300 Nm
Min. starting torque at max. press. drop int.: 350 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Splined shaft z6
- Last updated: 2019-04-22 13:49:00
