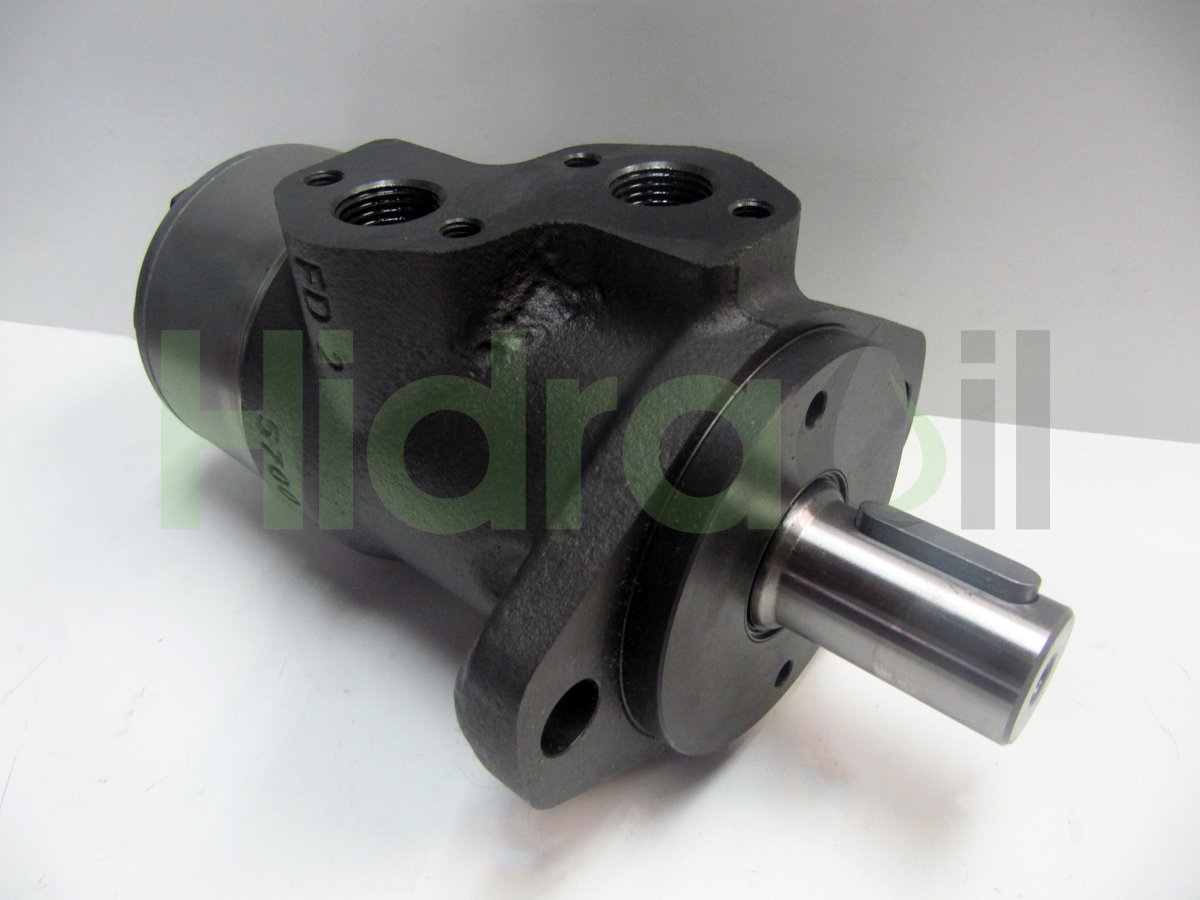

151-0317 OMP 315 Sauer Danfoss hydraulic orbital motor 315 cm3 straight shaft without drain port
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101289
- Brand
- Sauer Danfoss
- Identification number
- 151-0317 OMP 315
- Other numbers
- 1510317 OMP315
- Approximate weight (kg)
- 6,9
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes..
Gearwheel set case width (L1): 40.9 mm.
Displacement: 306,1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: Without Drain port.
Max speed: 195 rpm (intermittent operation: 245 rpm).
Max. Torque: 300 Nm (intermittent operation: 390 Nm; peak load:600 Nm).
Max. Output Power: 5 kW (intermittent operation: 7 kW).
Max. Pressure Drop: 75 bar (intermittent operation: 100 bar; peak load:160 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 280 Nm.
Min. starting torque at max. press. drop int.: 370 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes..
Gearwheel set case width (L1): 40.9 mm.
Displacement: 306,1 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: Without Drain port.
Max speed: 195 rpm (intermittent operation: 245 rpm).
Max. Torque: 300 Nm (intermittent operation: 390 Nm; peak load:600 Nm).
Max. Output Power: 5 kW (intermittent operation: 7 kW).
Max. Pressure Drop: 75 bar (intermittent operation: 100 bar; peak load:160 bar).
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
Max. starting pressure with unloaded shaft: 5 bar.
Min. starting torque at max. press. drop cont.: 280 Nm.
Min. starting torque at max. press. drop int.: 370 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Category: Straight shaft 25 mm
- Category: Without case drain
- Last updated: 2015-10-06 18:42:19
