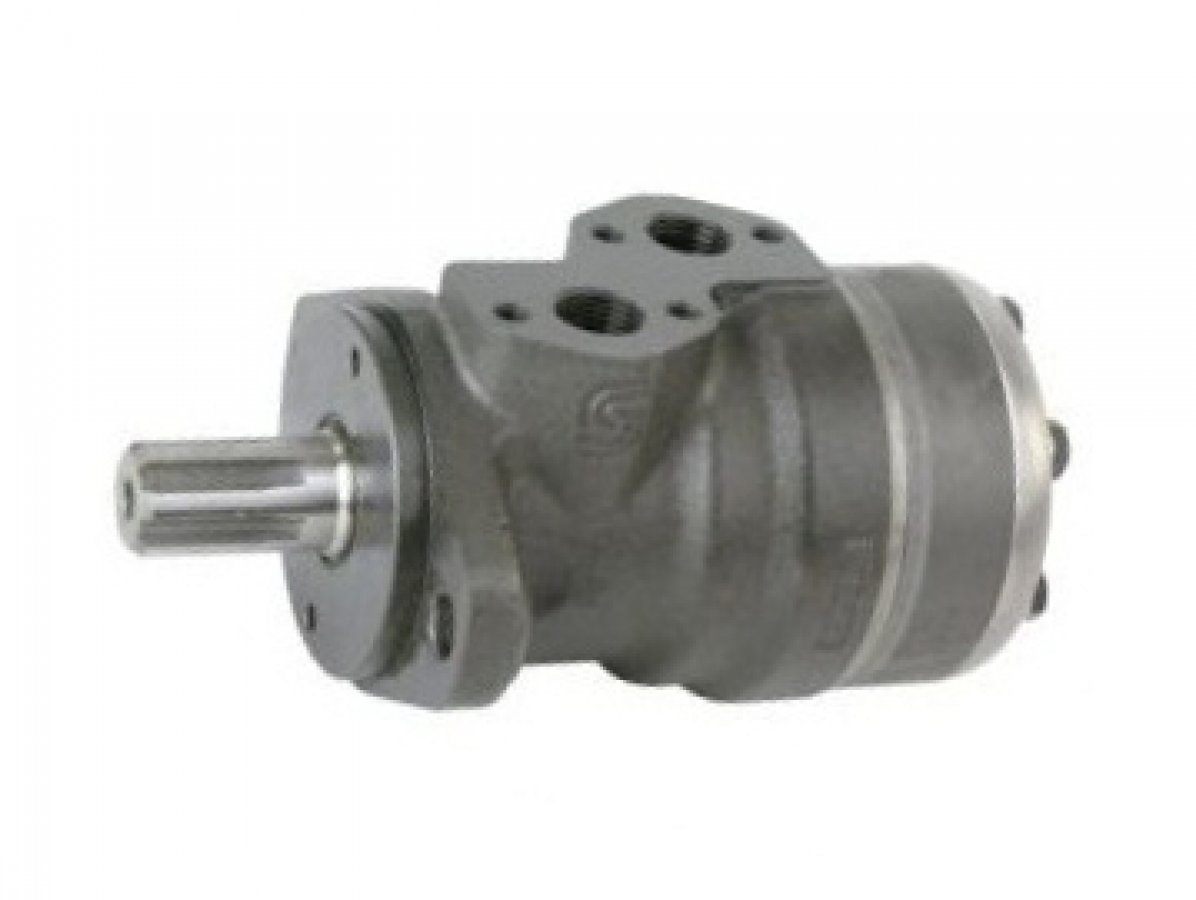

151-0334 OMP 160 Sauer Danfoss hydraulic orbital motor 160 cm3 splined shaft z6

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX100152
Identification number
151-0334 OMP 160
Other numbers
1510334 OMP160
Approximate weight (kg)
6,2

Description

Hydraulic orbital motor for high-torque applications at low to medium speeds.
Shaft type: Splined shaft with 6 teeth and 25,4 mm outside diameter.
Flange type: SAE-A type, 2 mounting holes, A2 flange, 82.5 mm centering diameter and 106.4 mm hole spacing.
Gearwheel housing width (L1): 20,8 mm
Displacement: 155,7 cm3
Side ports: Threaded 1/2" GAS
Drain port: No drain.
Maximum speed: 385 rpm (intermittent operation: 480 rpm)
Maximum torque: 300 Nm (intermittent operation: 370 Nm; peak load:430 Nm)
Maximum output power: 10 kW (intermittent operation: 12 kW)
Maximum pressure drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar)
Maximum oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Maximum starting pressure with the shaft unloaded: 7 bar
Minimum starting torque at maximum continuous pressure drop: 280 Nm
Minimum starting torque at maximum intermittent pressure drop: 350 Nm
Intermittent operation: the stated values are permitted for a maximum of 10% of each minute.
Peak load: the stated values are permitted for a maximum of 1% of each minute.
