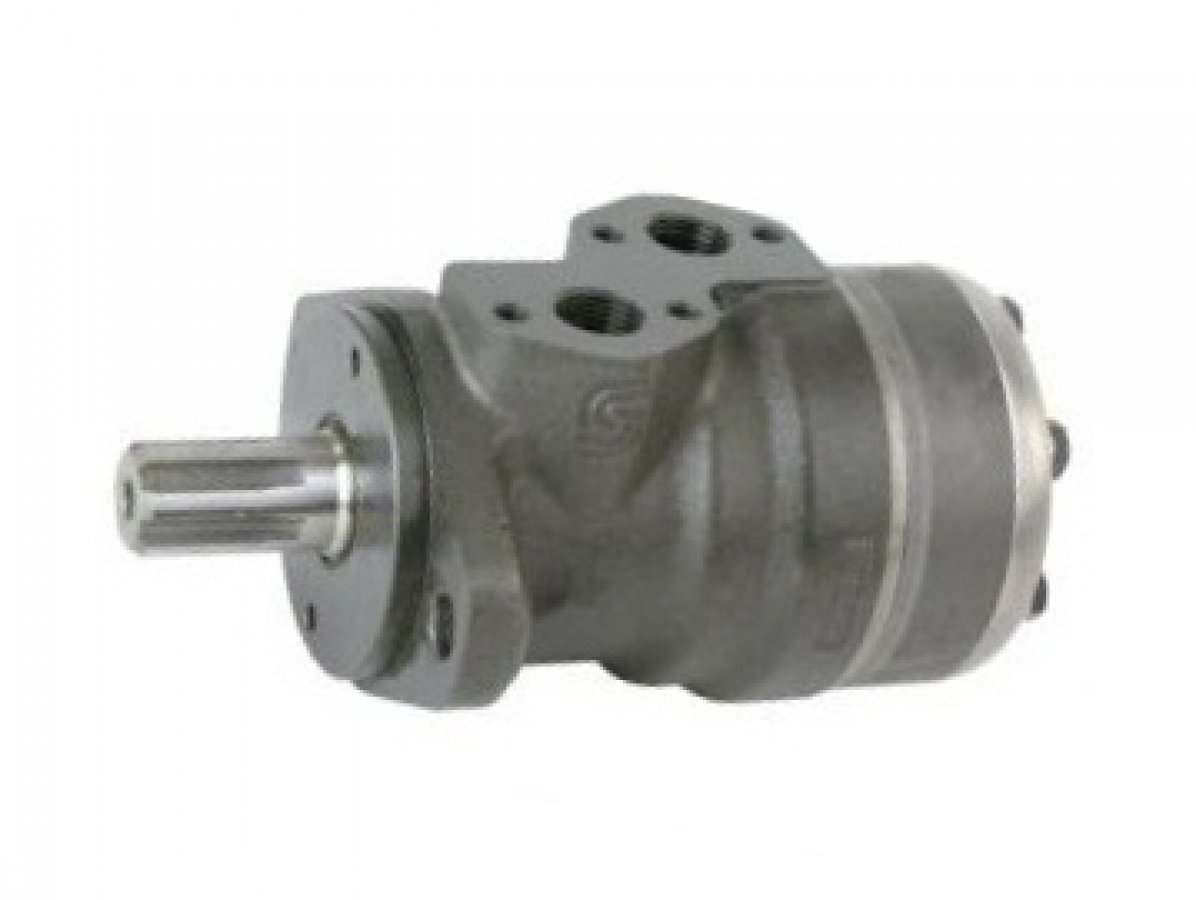

151-0336 OMP 250 Sauer Danfoss hydraulic orbital motor 250 cm3 splined shaft z6
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100154
- Brand
- Sauer Danfoss
- Identification number
- 151-0336 OMP 250
- Other numbers
- 1510336 OMP250
- Approximate weight (kg)
- 6,6
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 32,5 mm
Displacement: 242,3 cm3
Side Ports: Threaded 1/2" GAS
Drain Port: sin drenaje
Max speed: 250 rpm (intermittent operation: 310 rpm)
Max. Torque: 360 Nm (intermittent operation: 460 Nm; peak load:550 Nm)
Max. Output Power: 8 kW (intermittent operation: 10,5 kW)
Max. Pressure Drop: 105 bar (intermittent operation: 140 bar; peak load:180 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 330 Nm
Min. starting torque at max. press. drop int.: 440 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 32,5 mm
Displacement: 242,3 cm3
Side Ports: Threaded 1/2" GAS
Drain Port: sin drenaje
Max speed: 250 rpm (intermittent operation: 310 rpm)
Max. Torque: 360 Nm (intermittent operation: 460 Nm; peak load:550 Nm)
Max. Output Power: 8 kW (intermittent operation: 10,5 kW)
Max. Pressure Drop: 105 bar (intermittent operation: 140 bar; peak load:180 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 330 Nm
Min. starting torque at max. press. drop int.: 440 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Last updated: 2015-01-17 22:56:21
