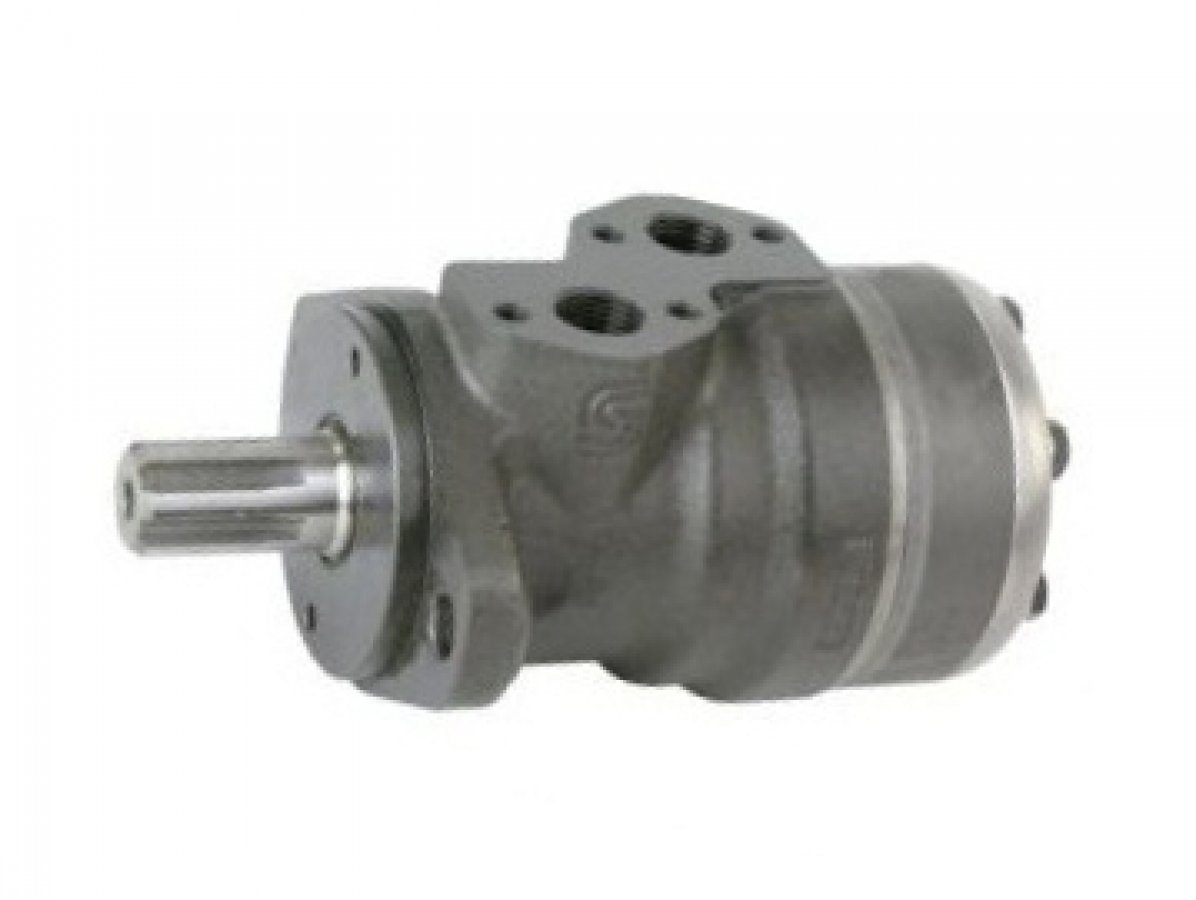

151-0633 OMP 125 Sauer Danfoss hydraulic orbital motor 125 cm3 splined shaft z6

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX100160
Identification number
151-0633 OMP 125
Other numbers
1510633 OMP125
Approximate weight (kg)
6,0

Description

Hydraulic orbital motor for high-torque applications at low to medium speeds.
Shaft type: Splined shaft with 6 teeth and 25,4 mm outside diameter.
Flange type: SAE-A type, 2 mounting holes, A2 flange, 82.5 mm centering diameter and 106.4 mm hole spacing.
Gearwheel housing width (L1): 16,7 mm
Displacement: 125 cm3
Side ports: Threaded 1/2" GAS
Drain port: G1/4 Threaded Port (1/4" BSPP)
Maximum speed: 480 rpm (intermittent operation: 600 rpm)
Maximum torque: 240 Nm (intermittent operation: 290 Nm; peak load:370 Nm)
Maximum output power: 10 kW (intermittent operation: 12 kW)
Maximum pressure drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar)
Maximum oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Maximum starting pressure with the shaft unloaded: 9 bar
Minimum starting torque at maximum continuous pressure drop: 210 Nm
Minimum starting torque at maximum intermittent pressure drop: 270 Nm
Intermittent operation: the stated values are permitted for a maximum of 10% of each minute.
Peak load: the stated values are permitted for a maximum of 1% of each minute.
More information

GFX100160 · Hidraoil Fluid Power
