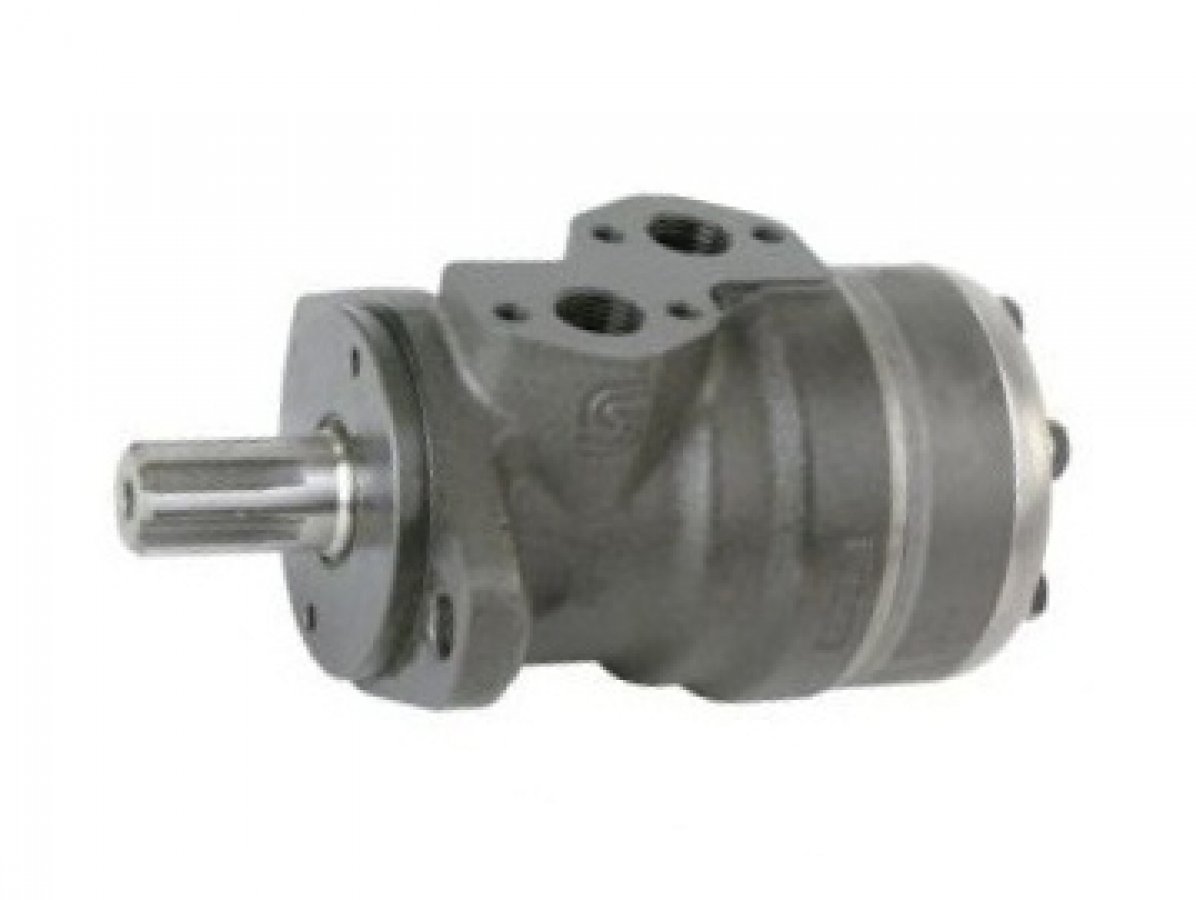

151-0637 OMP 315 Sauer Danfoss hydraulic orbital motor 315 cm3 splined shaft z6
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100164
- Brand
- Sauer Danfoss
- Identification number
- 151-0637 OMP 315
- Other numbers
- 1510637 OMP315
- Approximate weight (kg)
- 6,9
Description
Shaft type: Splined shaft with 6 teeth and 25,4 mm outside diameter.
Flange type: SAE-A type, 2 mounting holes, A2 flange, 82.5 mm centering diameter and 106.4 mm hole spacing.
Gearwheel housing width (L1): 40,9 mm
Displacement: 306,1 cm3
Side ports: Threaded 1/2" GAS
Drain port: G1/4 Threaded Port (1/4" BSPP)
Maximum speed: 195 rpm (intermittent operation: 245 rpm)
Maximum torque: 360 Nm (intermittent operation: 470 Nm; peak load:540 Nm)
Maximum output power: 6 kW (intermittent operation: 7,5 kW)
Maximum pressure drop: 90 bar (intermittent operation: 120 bar; peak load:160 bar)
Maximum oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Maximum starting pressure with the shaft unloaded: 5 bar
Minimum starting torque at maximum continuous pressure drop: 340 Nm
Minimum starting torque at maximum intermittent pressure drop: 450 Nm
Intermittent operation: the stated values are permitted for a maximum of 10% of each minute.
Peak load: the stated values are permitted for a maximum of 1% of each minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Last updated: 2015-01-17 23:15:57
