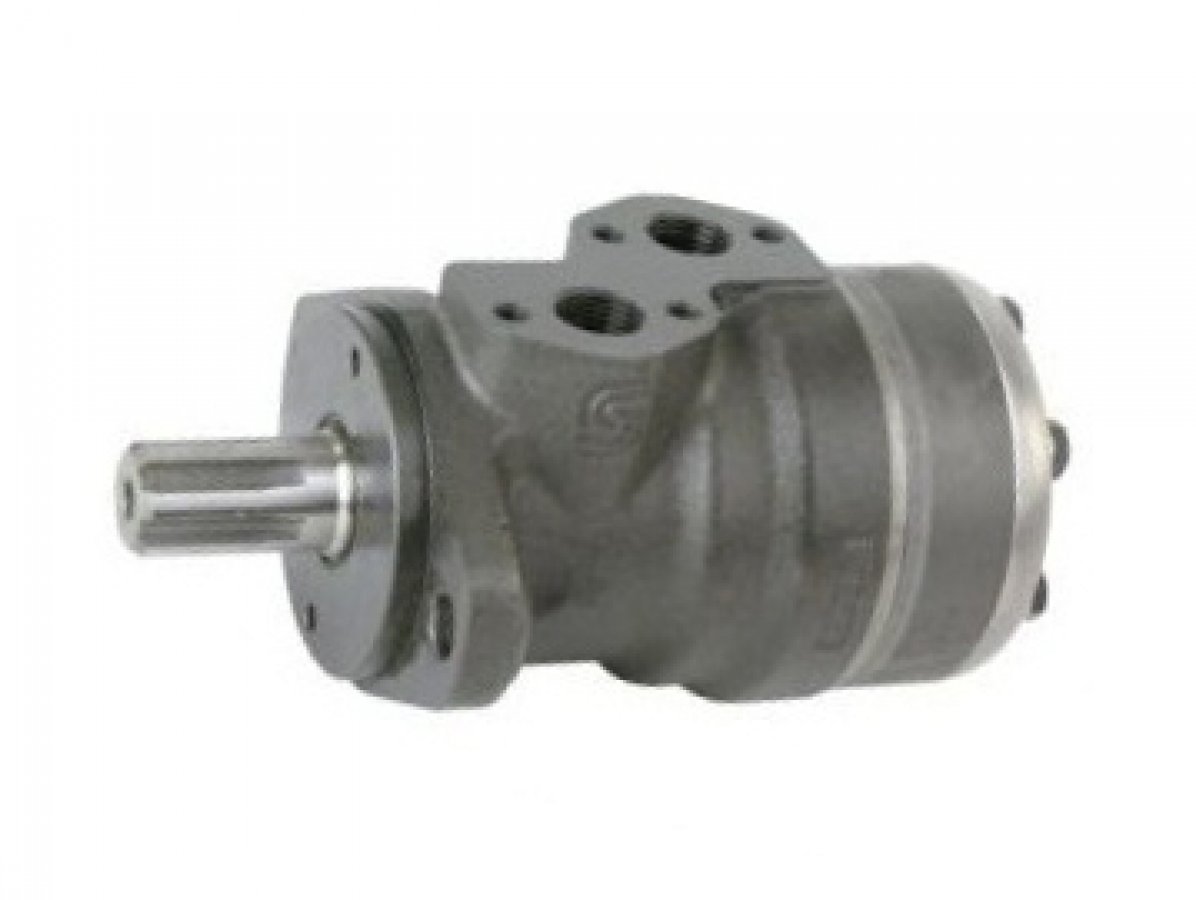

151-0638 OMP 400 Sauer Danfoss hydraulic orbital motor 400 cm3 splined shaft z6
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100165
- Brand
- Sauer Danfoss
- Identification number
- 151-0638 OMP 400
- Other numbers
- 1510638 OMP400
- Approximate weight (kg)
- 7,4
Description
Hydraulic orbital motor for high torque and low/medium speed applications.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 52 mm
Displacement: 389,2 cm3
Side Ports: Threaded 1/2" GAS
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 155 rpm (intermittent operation: 190 rpm)
Max. Torque: 360 Nm (intermittent operation: 460 Nm; peak load:560 Nm)
Max. Output Power: 5 kW (intermittent operation: 6 kW)
Max. Pressure Drop: 70 bar (intermittent operation: 90 bar; peak load:130 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 345 Nm
Min. starting torque at max. press. drop int.: 425 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 52 mm
Displacement: 389,2 cm3
Side Ports: Threaded 1/2" GAS
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 155 rpm (intermittent operation: 190 rpm)
Max. Torque: 360 Nm (intermittent operation: 460 Nm; peak load:560 Nm)
Max. Output Power: 5 kW (intermittent operation: 6 kW)
Max. Pressure Drop: 70 bar (intermittent operation: 90 bar; peak load:130 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 345 Nm
Min. starting torque at max. press. drop int.: 425 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMP
- Last updated: 2015-01-17 23:16:25
