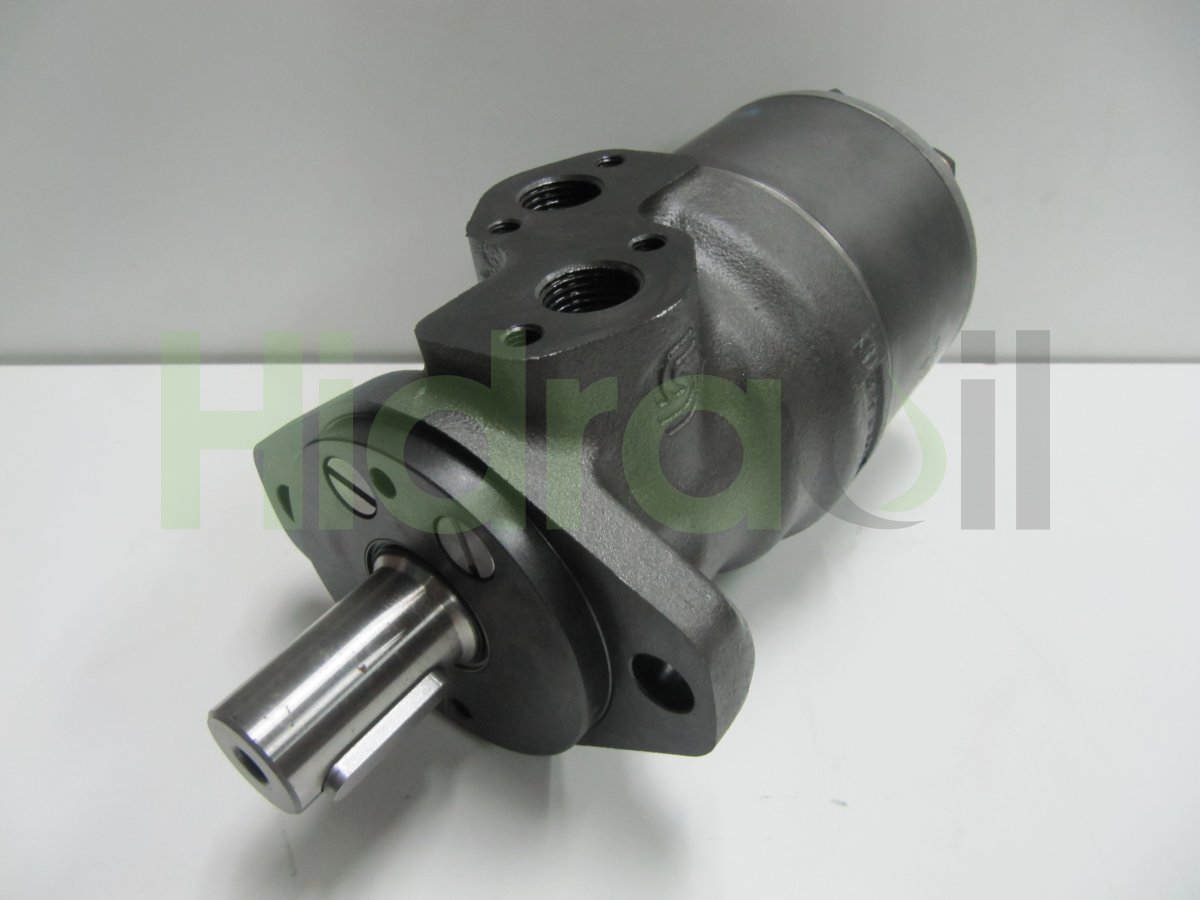

151-0717 OMR 315 Sauer Danfoss hydraulic orbital motor 315 cm3 straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100018
- Brand
- Sauer Danfoss
- Identification number
- 151-0717 OMR 315
- Other numbers
- 1510717 OMR315 OMR 315
- Approximate weight (kg)
- 9,0
Description
Hydraulic orbital motor for high torque applications. Geroller type.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Tipo A2 (SAE-A) con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from los 2 taladros
Gearwheel set case width (L1): 54.8 mm.
Displacement: 315.7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 190 rpm (intermittent operation: 240 rpm)
Max. Torque: 300 Nm (intermittent operation: 420 Nm; peak load:610 Nm)
Max. Output Power: 5 kW (intermittent operation: 6,5 kW)
Max. Pressure Drop: 70 bar (intermittent operation: 100 bar; peak load:150 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 260 Nm
Min. starting torque at max. press. drop int.: 350 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Tipo A2 (SAE-A) con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from los 2 taladros
Gearwheel set case width (L1): 54.8 mm.
Displacement: 315.7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 190 rpm (intermittent operation: 240 rpm)
Max. Torque: 300 Nm (intermittent operation: 420 Nm; peak load:610 Nm)
Max. Output Power: 5 kW (intermittent operation: 6,5 kW)
Max. Pressure Drop: 70 bar (intermittent operation: 100 bar; peak load:150 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 5 bar
Min. starting torque at max. press. drop cont.: 260 Nm
Min. starting torque at max. press. drop int.: 350 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Straight shaft 25 mm - Flange A2
- Category: With case drain
- Last updated: 2015-10-06 18:22:38
