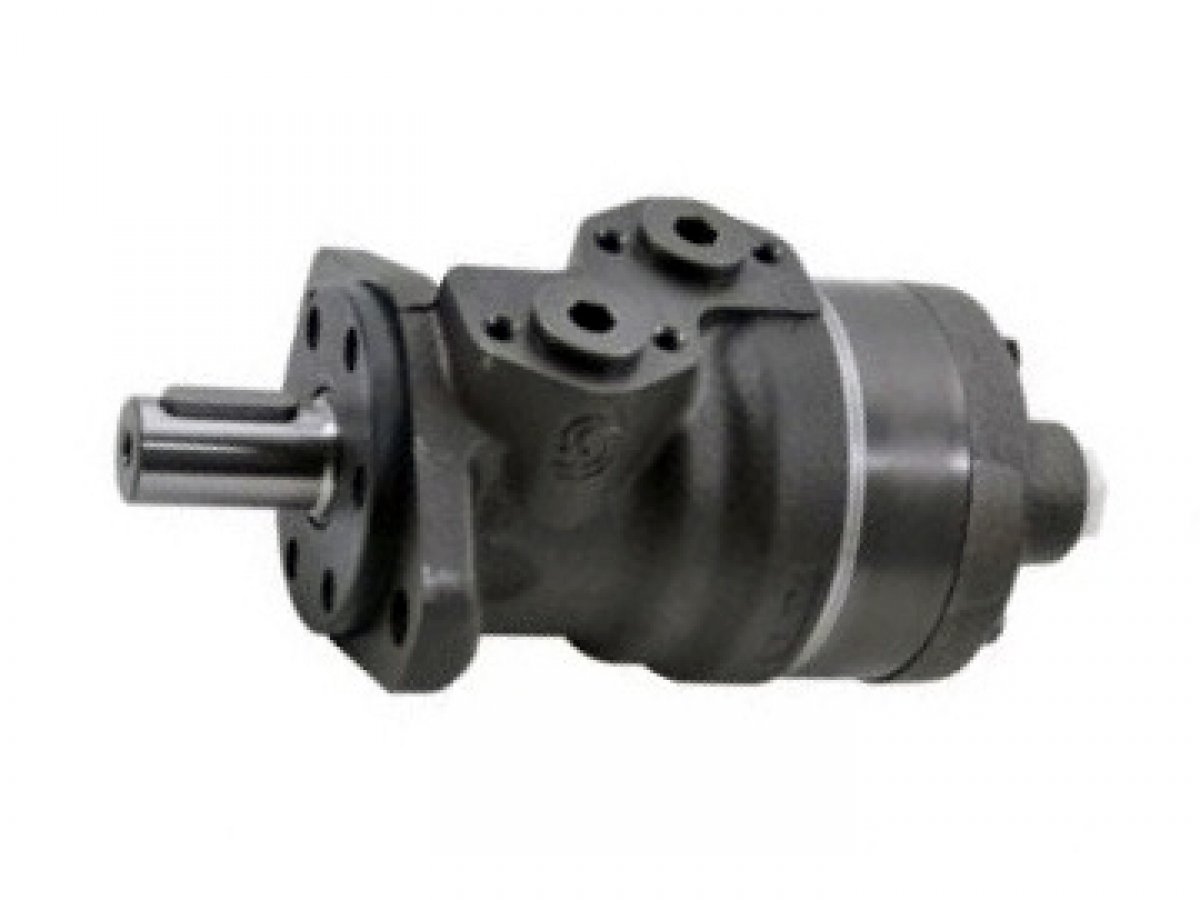

151-6194 OMR 160 Sauer Danfoss hydraulic orbital motor 160 cm3 with straight shaft and rear ports
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100113
- Brand
- Sauer Danfoss
- Identification number
- 151-6194 OMR 160
- Other numbers
- 1516194 OMR160
- Approximate weight (kg)
- 7,5
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 27,8 mm
Displacement: 159,6 cm3
Rear ports: Threaded 1/2" GAS
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 375 rpm (intermittent operation: 470 rpm)
Max. Torque: 300 Nm (intermittent operation: 390 Nm; peak load:460 Nm)
Max. Output Power: 10 kW (intermittent operation: 12,5 kW)
Max. Pressure Drop: 130 bar (intermittent operation: 175 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 7 bar
Min. starting torque at max. press. drop cont.: 240 Nm
Min. starting torque at max. press. drop int.: 320 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
Gearwheel set case width (L1): 27,8 mm
Displacement: 159,6 cm3
Rear ports: Threaded 1/2" GAS
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 375 rpm (intermittent operation: 470 rpm)
Max. Torque: 300 Nm (intermittent operation: 390 Nm; peak load:460 Nm)
Max. Output Power: 10 kW (intermittent operation: 12,5 kW)
Max. Pressure Drop: 130 bar (intermittent operation: 175 bar; peak load:225 bar)
Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
Max. starting pressure with unloaded shaft: 7 bar
Min. starting torque at max. press. drop cont.: 240 Nm
Min. starting torque at max. press. drop int.: 320 Nm
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMR
- Category: Rear Ports
- Last updated: 2022-06-07 07:25:00
