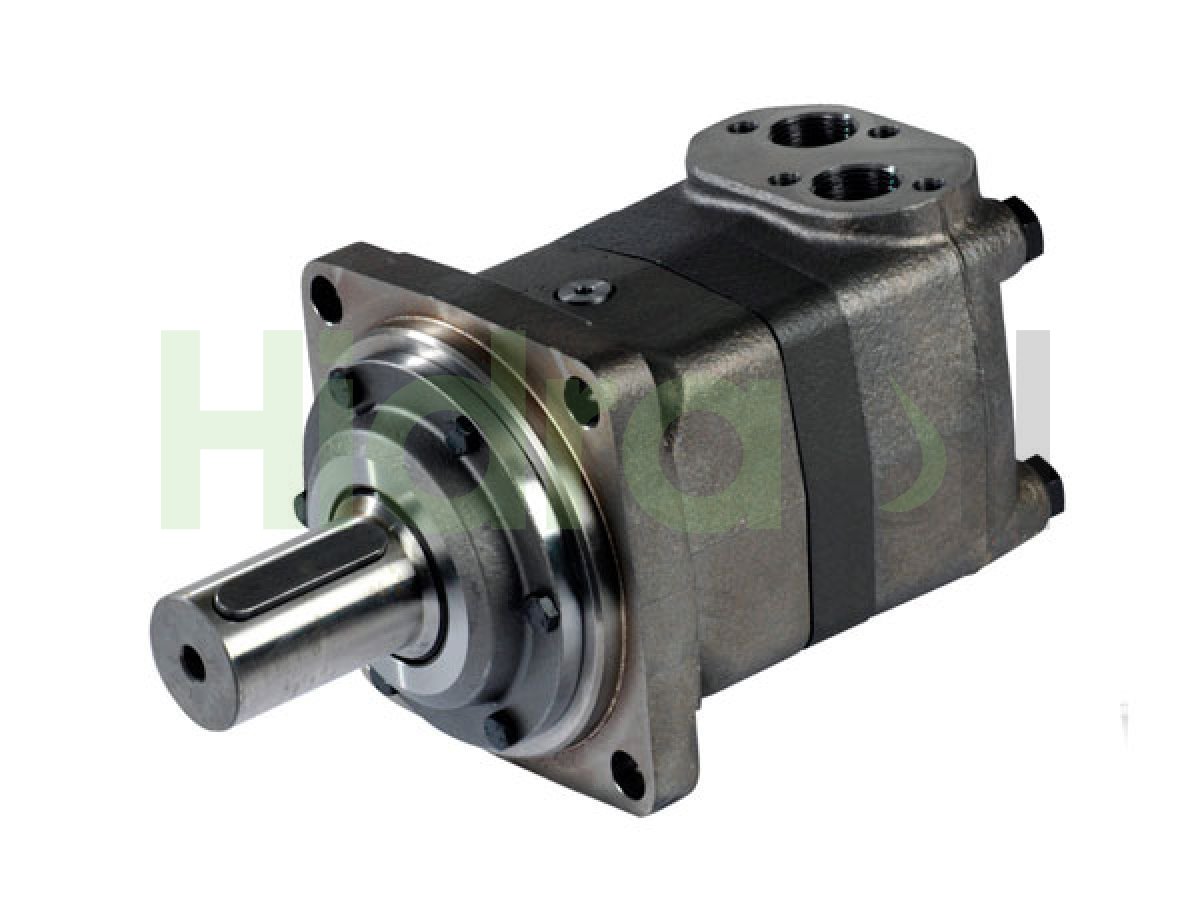

151B2152 OMV 500 Danfoss hydraulic orbital motor 500 cm3 straight shaft 2.25 inches
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101692
- Brand
- Danfoss
- Identification number
- 151B2152 OMV 500
- Other numbers
- 151B 2152 OMV500
- Approximate weight (kg)
- 33,5
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Parallel diameter 57,1 mm (2-1/4") con chaveta from ancho 12,7 mm.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 37,0 mm.
Displacement: 499,6 cm3/rev.
Side Ports: Threaded 1-5/16"-12 UN.
Drain Port: 9/16"-18 UNF GAS.
Max speed: 400 rpm (intermittent operation: 480 rpm).
Max. Torque: 1460 Nm (intermittent operation: 1760 Nm).
Max. Output Power: 53,5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 1130 Nm.
Min. starting torque at max. press. drop int.: 1360 Nm.
Maximum inlet pressure: 210 bar (intermittent operation: 250 bar; peak load:300 bar).
Maximum return pressure with drain line: 140 bar (intermittent operation: 175 bar; peak load:210 bar).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Parallel diameter 57,1 mm (2-1/4") con chaveta from ancho 12,7 mm.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Gerotor/Geroller width (L1): 37,0 mm.
Displacement: 499,6 cm3/rev.
Side Ports: Threaded 1-5/16"-12 UN.
Drain Port: 9/16"-18 UNF GAS.
Max speed: 400 rpm (intermittent operation: 480 rpm).
Max. Torque: 1460 Nm (intermittent operation: 1760 Nm).
Max. Output Power: 53,5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 1130 Nm.
Min. starting torque at max. press. drop int.: 1360 Nm.
Maximum inlet pressure: 210 bar (intermittent operation: 250 bar; peak load:300 bar).
Maximum return pressure with drain line: 140 bar (intermittent operation: 175 bar; peak load:210 bar).
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMV
- Category: Straight shaft D57.1mm - 2.25 inch
- Last updated: 2018-09-16 20:02:38
