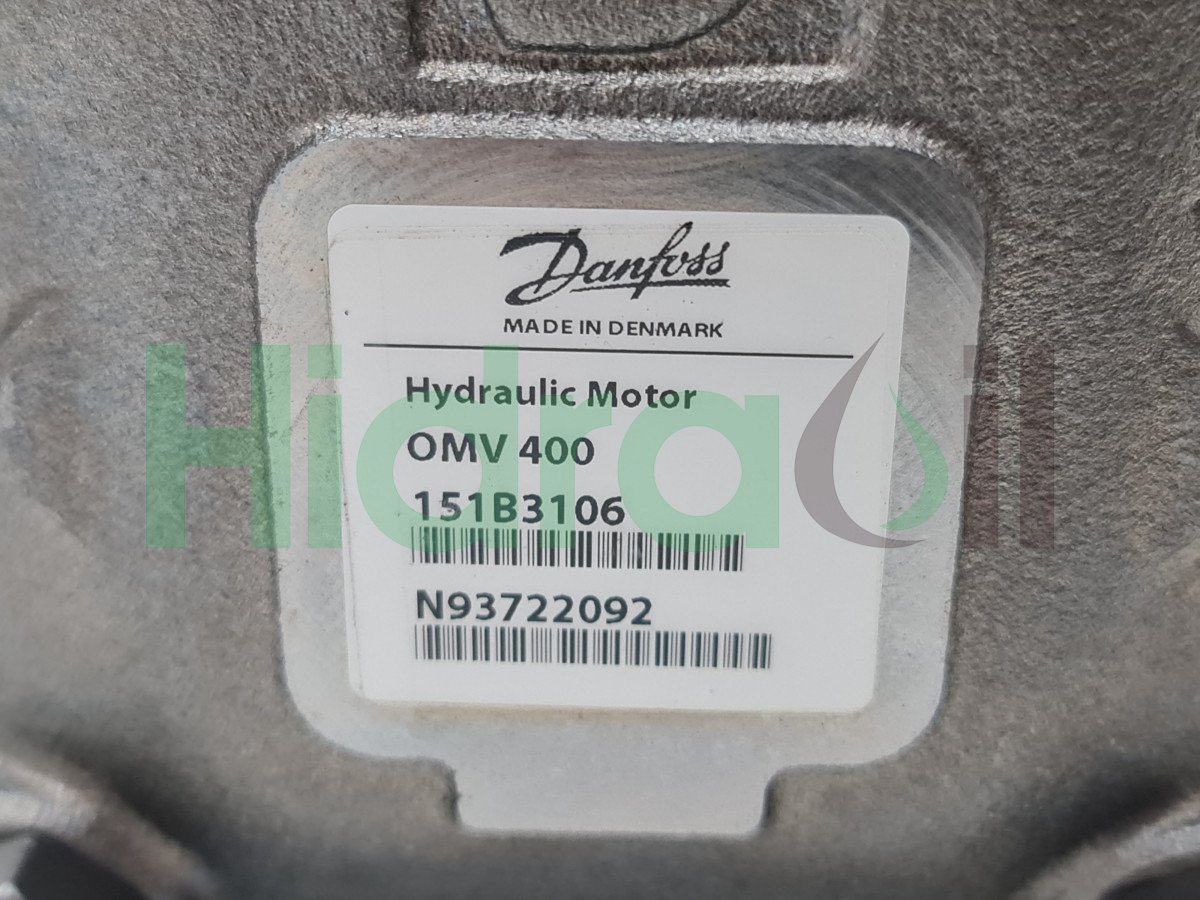

151B3106 OMV 400 Danfoss hydraulic orbital motor 400 cm3 with splined shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX105201
- Brand
- Danfoss
- Identification number
- 151B3106 OMV 400
- Other numbers
- 151B 3106 OMV400
- Approximate weight (kg)
- 32,6
Description
Hydraulic orbital motor OMV from manufacturer Danfoss (former Sauer Danfoss) for hydraulic equipment requiring high Torque at low / medium Speed.
Shaft type: Splined from 16 dientes con diámetro exterior 53.95 mm.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Displacement: 400.9 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 500 rpm (intermittent operation: 600 rpm).
Max. Torque: 1180 Nm (intermittent operation: 1410 Nm).
Max. Output Power: 53.5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak: 280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 910 Nm.
Min. starting torque at max. press. drop int.: 1090 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
Shaft type: Splined from 16 dientes con diámetro exterior 53.95 mm.
Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
Displacement: 400.9 cm3/rev.
Side Ports: G1 Threaded Ports (1" BSPP).
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 500 rpm (intermittent operation: 600 rpm).
Max. Torque: 1180 Nm (intermittent operation: 1410 Nm).
Max. Output Power: 53.5 kW (intermittent operation: 64 kW).
Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak: 280 bar).
Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
Max. starting pressure with unloaded shaft: 8 bar.
Min. starting torque at max. press. drop cont.: 910 Nm.
Min. starting torque at max. press. drop int.: 1090 Nm.
Intermittent operation: the permissible values may occur for max. 10% of every minute.
Peak load: the permissible values may occur for max. 1% of every minute.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMV
- Category: Splined shaft z16
- Last updated: 2022-07-23 07:01:00
