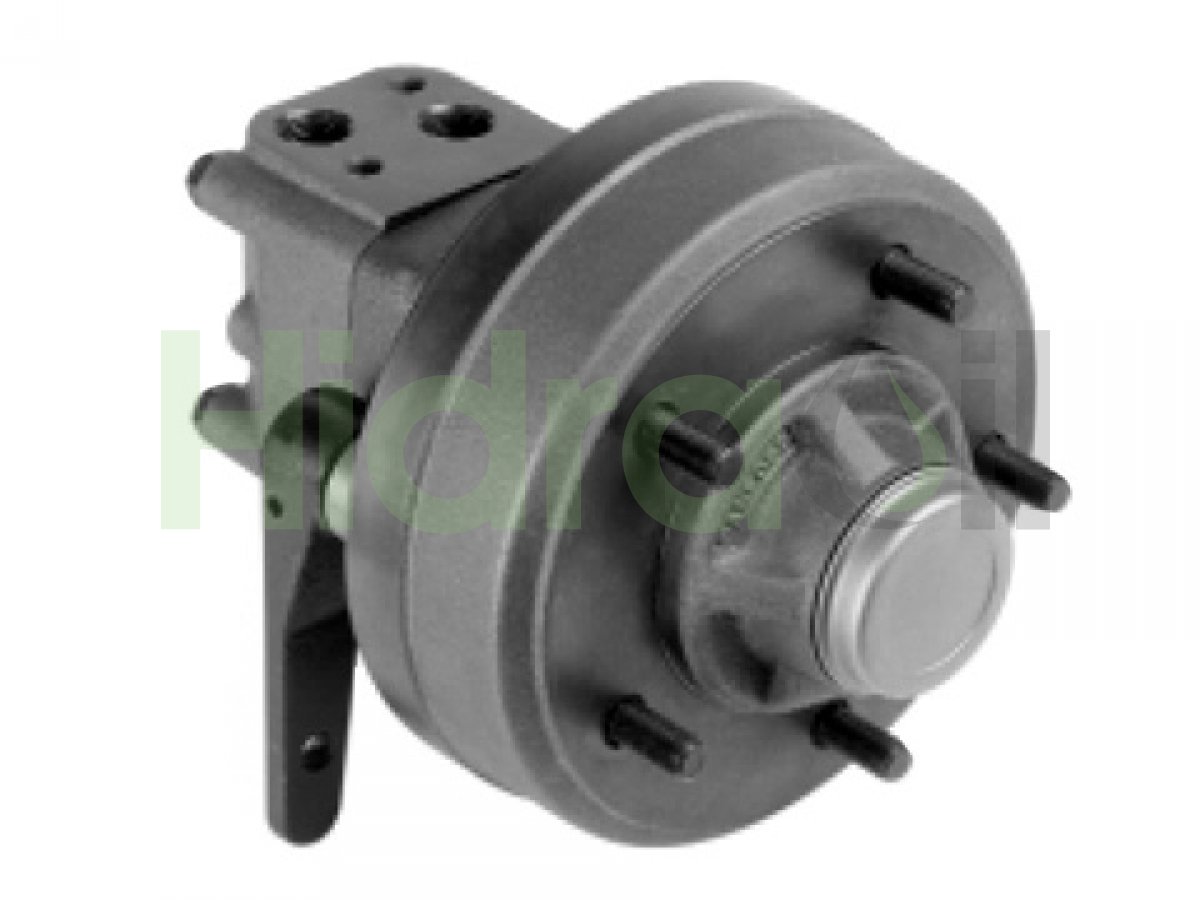

151F0675 OMSB 160 Sauer Danfoss hydraulic orbital motor 160 cm3 with drum brake
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101156
- Brand
- Danfoss White
- Identification number
- 151F0675 OMSB 160
- Other numbers
- 151F0075 OMSB160
- Approximate weight (kg)
- Inquire for details
Description
Hydraulic orbital motor for High Torque applications. (gerotor) from baja velocidad y alto par con freno tambor incorporado.
Posición palanca from freno: En el lado derecho (mirando el tambor from frente y las conexiones en la parte superior).
Flange type: -.
Gerotor/Geroller width (gerotor/geroller): 27.8 mm.
Displacement: 159,7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 470 rpm (intermittent operation: 560 rpm).
Max. Torque: - Nm (intermittent operation: - Nm).
Max. Output Power: - kW (intermittent operation: - kW).
Max. Pressure Drop: - bar (intermittent operation: - bar; peak load:- bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Posición palanca from freno: En el lado derecho (mirando el tambor from frente y las conexiones en la parte superior).
Flange type: -.
Gerotor/Geroller width (gerotor/geroller): 27.8 mm.
Displacement: 159,7 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 470 rpm (intermittent operation: 560 rpm).
Max. Torque: - Nm (intermittent operation: - Nm).
Max. Output Power: - kW (intermittent operation: - kW).
Max. Pressure Drop: - bar (intermittent operation: - bar; peak load:- bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMS
- Category: With drum brake
