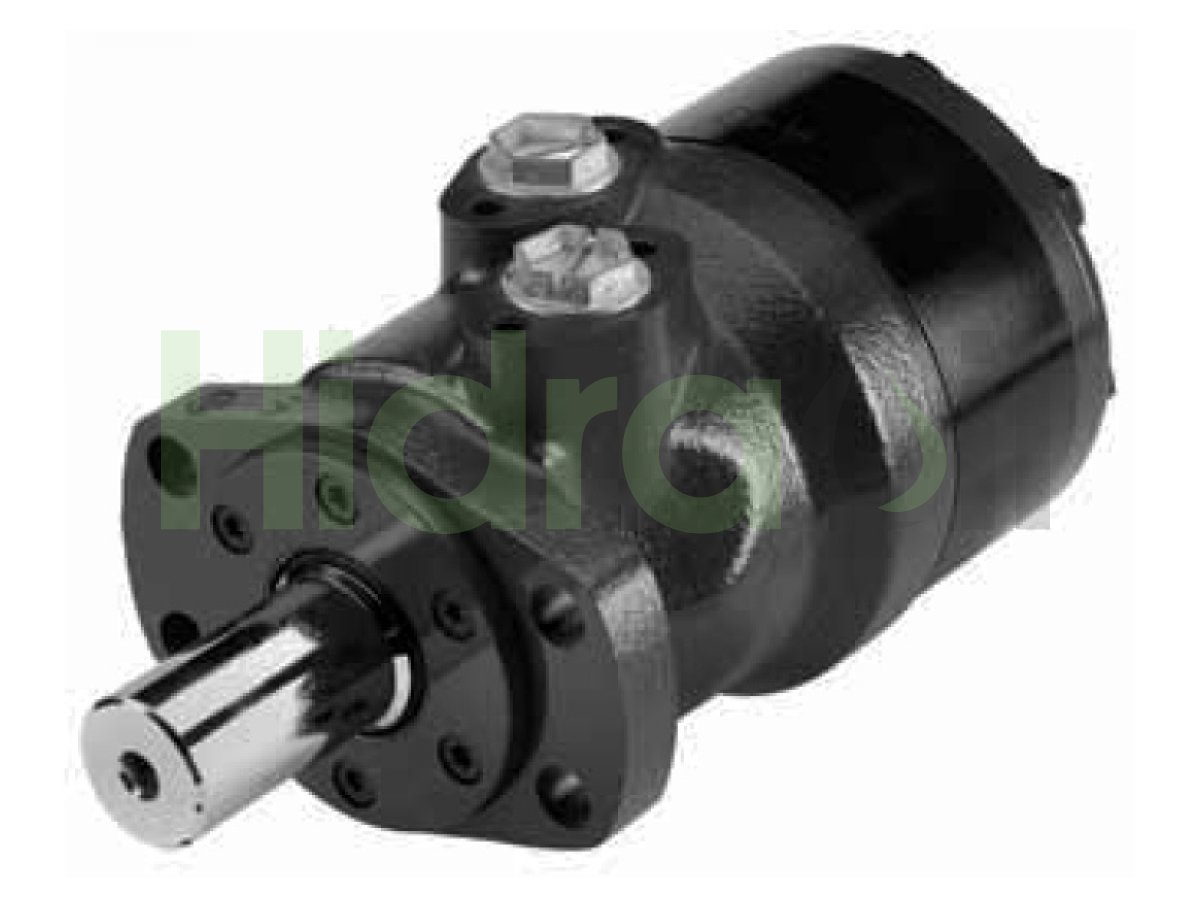

151H1003 OMH 250 White hydraulic orbital motor 250 cm3 with straight shaft D32
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX102943
- Brand
- White
- Identification number
- 151H1003 OMH 250
- Other numbers
- 151H 1003 OMH250
- Approximate weight (kg)
- 11,0
Description
Hydraulic orbital motor White (former Sauer Danfoss) for high torque and low/medium speed applications.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: 4 holes Flange Magneto type with 82.5 mm centering diameter and 106.4 mm diameter between hole centers.
Displacement: 252.0 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 295 rpm (intermittent operation: 350 rpm).
Max. Torque: 610 Nm (intermittent operation: 700 Nm).
Max. Output Power: 16.0 kW (intermittent operation: 18.5 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak: 225 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 7 bar.
Min. starting torque at max. press. drop cont.: 520 Nm.
Min. starting torque at max. press. drop int.: 590 Nm.
Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
Flange type: 4 holes Flange Magneto type with 82.5 mm centering diameter and 106.4 mm diameter between hole centers.
Displacement: 252.0 cm3/rev.
Side Ports: G1/2 Threaded Ports (1/2" BSPP)
Drain Port: G1/4 Threaded Port (1/4" BSPP)
Max speed: 295 rpm (intermittent operation: 350 rpm).
Max. Torque: 610 Nm (intermittent operation: 700 Nm).
Max. Output Power: 16.0 kW (intermittent operation: 18.5 kW).
Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak: 225 bar).
Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
Max. starting pressure with unloaded shaft: 7 bar.
Min. starting torque at max. press. drop cont.: 520 Nm.
Min. starting torque at max. press. drop int.: 590 Nm.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: Sauer Danfoss
- Category: OMH
- Category: Straight shaft D32
- Last updated: 2020-10-01 23:58:00
