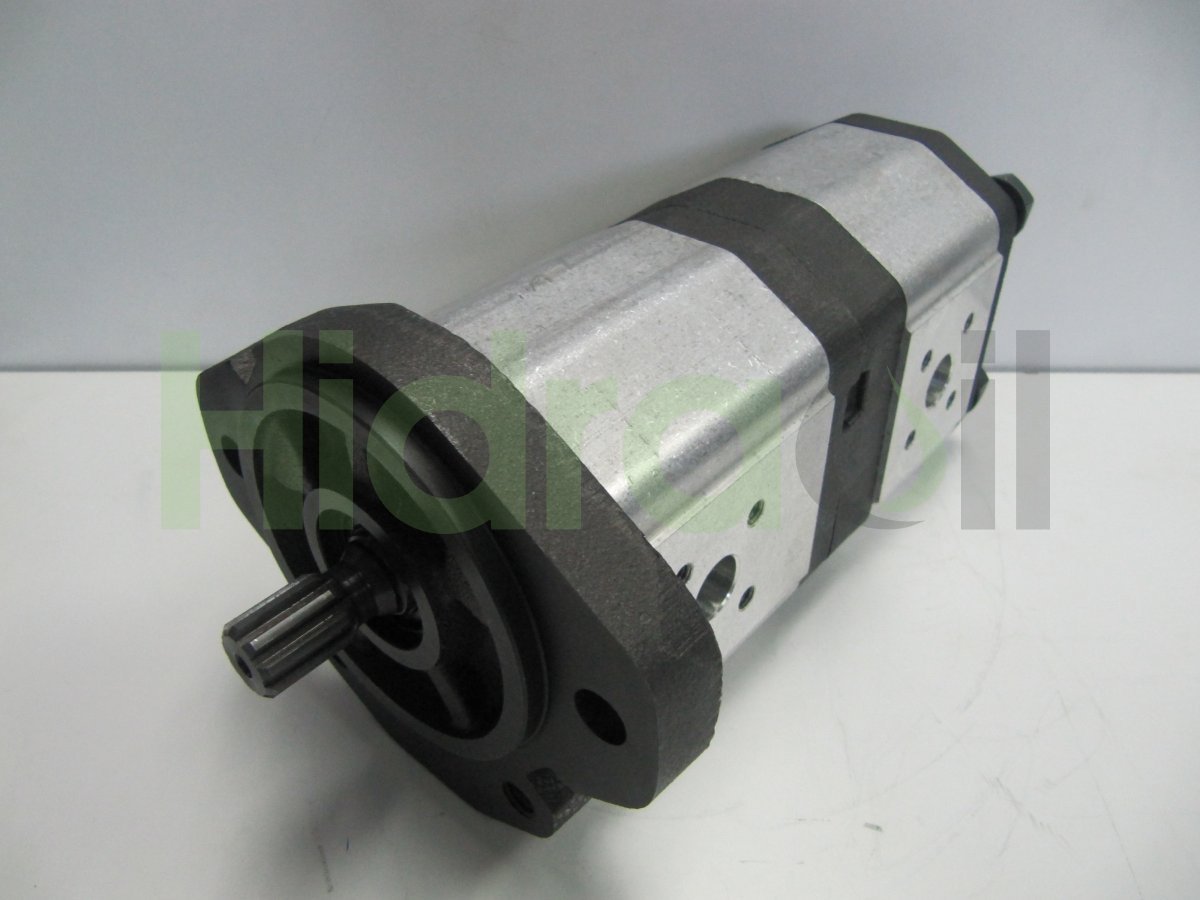

1LM27-12DG09F Roquet hydraulic double gear pump 18+8 cm3 splined shaft z9
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100299
- Brand
- Roquet
- Identification number
- 1LM27-12DG09F
- Other numbers
- 1LM2712DG09F
- Approximate weight (kg)
- 6,2
Description
Hydraulic external gear tandem pump Roquet with aluminum case of group 2.
Type: Fixed displacement.
Displacement: 18+8 cm3/rev
Rotation: Clockwise rotation.
Flange type: SAE-A type. Centraje from 82,5 mm.
Shaft type: Splined with 9 teeth and external diameter 15.45 mm. ANSI B 92.1 9T 16/32 SP.
Inlet ports: D40xM6xD20.
Outlet ports: D35xM6xD20.
Flow @ 1500 rpm: 27+12 liters/minute (39 liters/minute total).
Type: Fixed displacement.
Displacement: 18+8 cm3/rev
Rotation: Clockwise rotation.
Flange type: SAE-A type. Centraje from 82,5 mm.
Shaft type: Splined with 9 teeth and external diameter 15.45 mm. ANSI B 92.1 9T 16/32 SP.
Inlet ports: D40xM6xD20.
Outlet ports: D35xM6xD20.
Flow @ 1500 rpm: 27+12 liters/minute (39 liters/minute total).
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Aluminum
- Category: Group 2+2
- Category: Roquet
- Last updated: 2016-12-14 22:17:34
