Product identification

---

• Hidraoil Part number: GFX101848
• Brand of product: Cessna
• Part number: 24207 LAN
• Other numbers: 24207LAN
• Approximate weight (kg): 2,6

Description

---

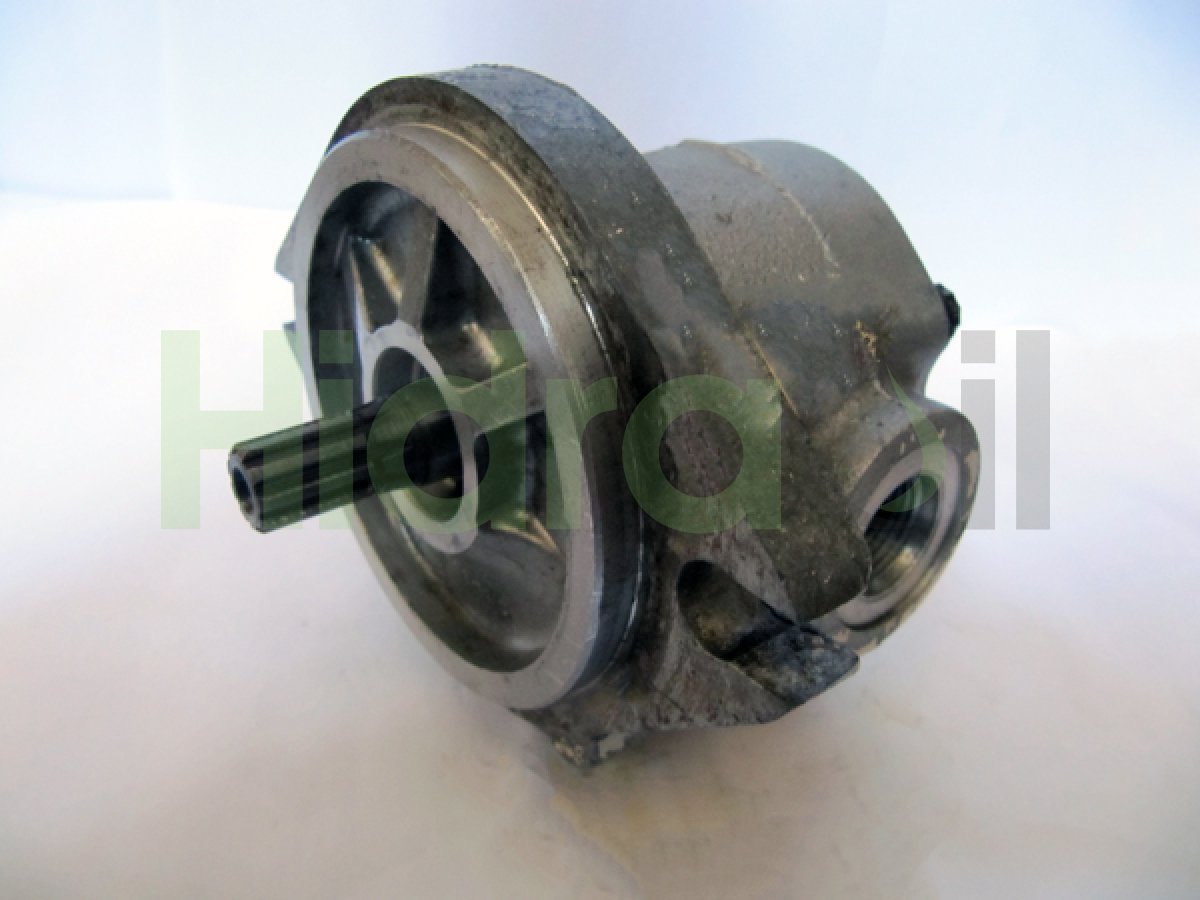

• Hydraulic external gear pump with Aluminum body interchangeable with 24207 LAN.

  Check total Length of this replacement pump: 101 mm. It is around 20 mm larger than the original pump so check if there is physical clearance: Check if there is at least 20–25 mm of empty space around the old pump's mounting position.

  Rotation: Counterclockwise rotation.
  Flange type: 2 holes flange.
  Shaft type: Splined.
  Inlet port: Threaded.
  Outlet port: Threaded.
