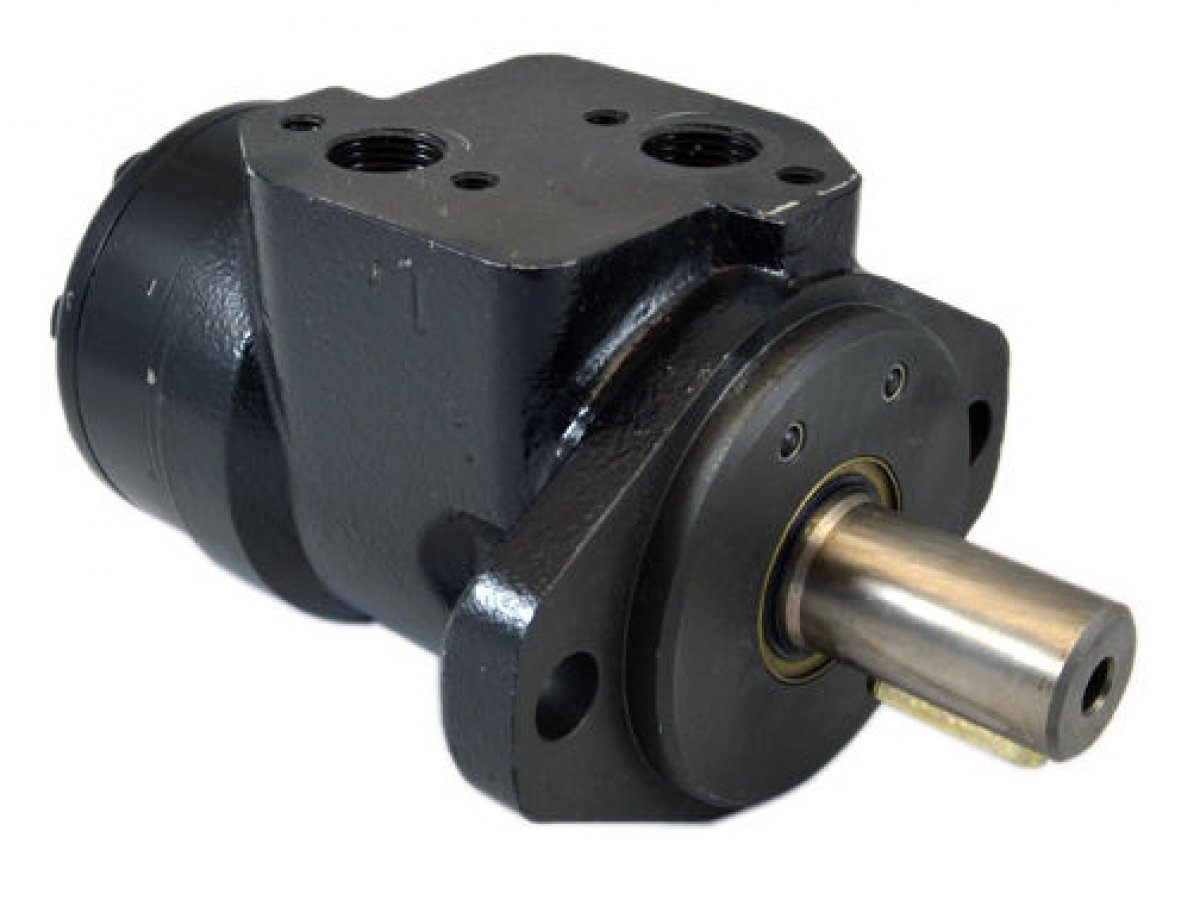

255400A6312BAAAA White drive hydraulic orbital motor 400 cm3 with 25 mm straight shaft 2 hole mount GAS ports
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100090
- Brand
- White
- Identification number
- 2552400A6312BAAAA
- Other numbers
- 255400A6312AAAAA 256400A6312BAAAA 256400A6312AAAAA
- Approximate weight (kg)
- 9,8
Description
Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Tipo SAE-A con centraje from diámetro 82.5 mm y distancia entre los 2 taladros from 106.4 mm
Displacement: 400 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Max speed: 152 rpm (intermittent operation: 190 rpm)
Max. Torque: 551 Nm (intermittent operation: 698 Nm)
Max. Pressure Drop: 104 bar (intermittent operation: 138 bar; peak load:155 bar)
Max oil flow: 61 liters/minute (intermittent operation: 76 liters/minute)
Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
Flange type: Tipo SAE-A con centraje from diámetro 82.5 mm y distancia entre los 2 taladros from 106.4 mm
Displacement: 400 cm3/rev
Side Ports: Threaded G1/2 ports (1/2" BSPP)
Max speed: 152 rpm (intermittent operation: 190 rpm)
Max. Torque: 551 Nm (intermittent operation: 698 Nm)
Max. Pressure Drop: 104 bar (intermittent operation: 138 bar; peak load:155 bar)
Max oil flow: 61 liters/minute (intermittent operation: 76 liters/minute)
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: White Drive
- Category: WR
- Last updated: 2015-05-04 17:22:29
