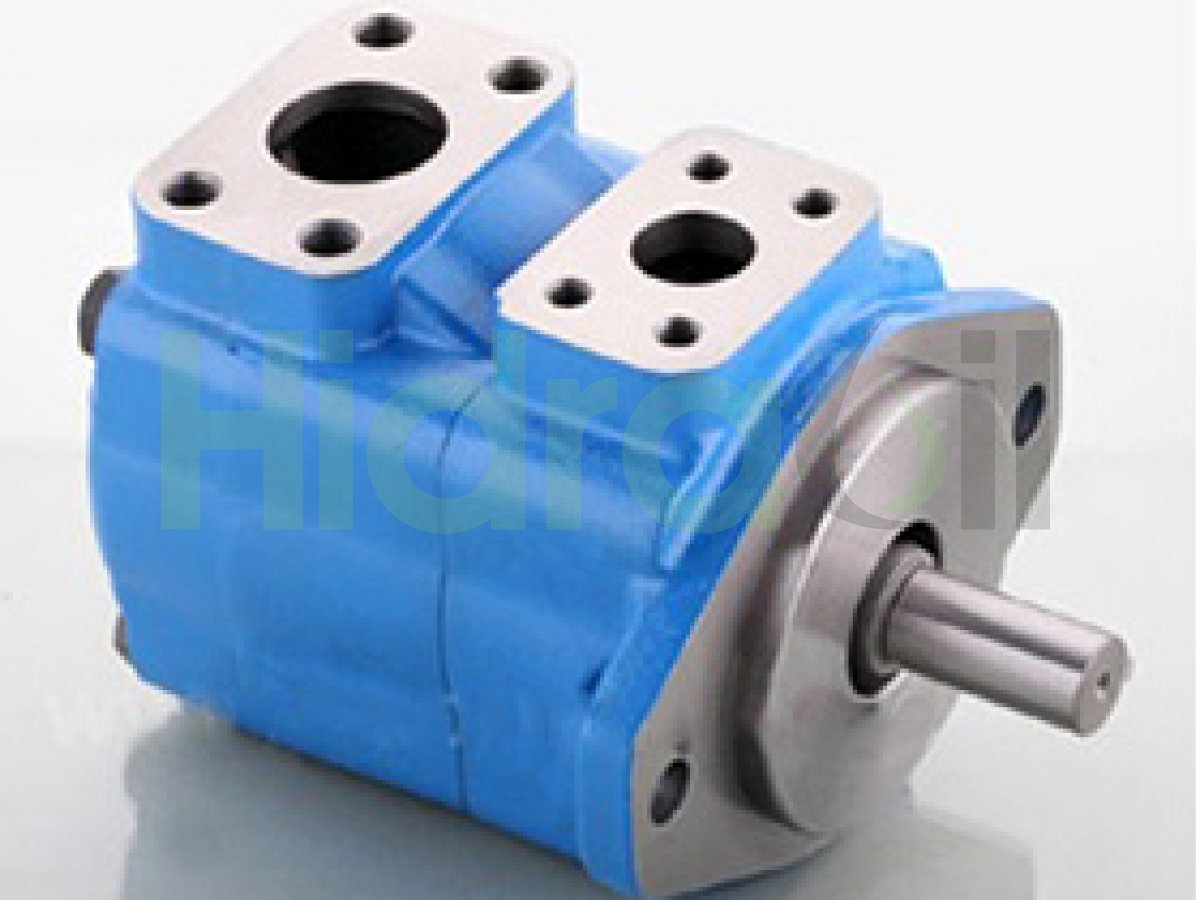

25VQ 14A 1C Vickers hydraulic vane pump 14 GPM straight shaft
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101111
- Brand
- Vickers
- Identification number
- 25VQ 14A 1C
- Other numbers
- 25VQ 14A 1C20 25VQ14A1C 25VQ14A1C20
- Approximate weight (kg)
- 14,5
Description
Hydraulic vane pump Parker fixed displacement.
Flow @ 1200 rpm y 7 bar (100 psi): 53 liters/minute (14 USgpm).
Displacement: 45.4 cm3/rev.
Max working pressure: 210 bar (3000 psi).
Max speed: 2700 rpm.
Flange type: SAE-B 2 holes with 101.6mm centering diameter and 146.1 mm between holes.
Shaft type: Eje cilíndrico from diámetro 22,22 mm con chaveta.
Inlet port: Tipo SAE para 4 tornillos con 69.9x35.7 mm from distancia entre ellos y con agujero paso from aceite from 38.1 mm.
Outlet port: Tipo SAE 4 tornillos con 52.4x26.2 mm from distancia entre ellos y con agujero paso from aceite from 25.4 mm.
Posición from la toma from salida: En línea con la from entrada.
Rotation: Clockwise rotation.
Flow @ 1200 rpm y 7 bar (100 psi): 53 liters/minute (14 USgpm).
Displacement: 45.4 cm3/rev.
Max working pressure: 210 bar (3000 psi).
Max speed: 2700 rpm.
Flange type: SAE-B 2 holes with 101.6mm centering diameter and 146.1 mm between holes.
Shaft type: Eje cilíndrico from diámetro 22,22 mm con chaveta.
Inlet port: Tipo SAE para 4 tornillos con 69.9x35.7 mm from distancia entre ellos y con agujero paso from aceite from 38.1 mm.
Outlet port: Tipo SAE 4 tornillos con 52.4x26.2 mm from distancia entre ellos y con agujero paso from aceite from 25.4 mm.
Posición from la toma from salida: En línea con la from entrada.
Rotation: Clockwise rotation.
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: 25VQ
- Category: Straight shaft D22.2 mm
- Last updated: 2015-04-25 00:15:02
