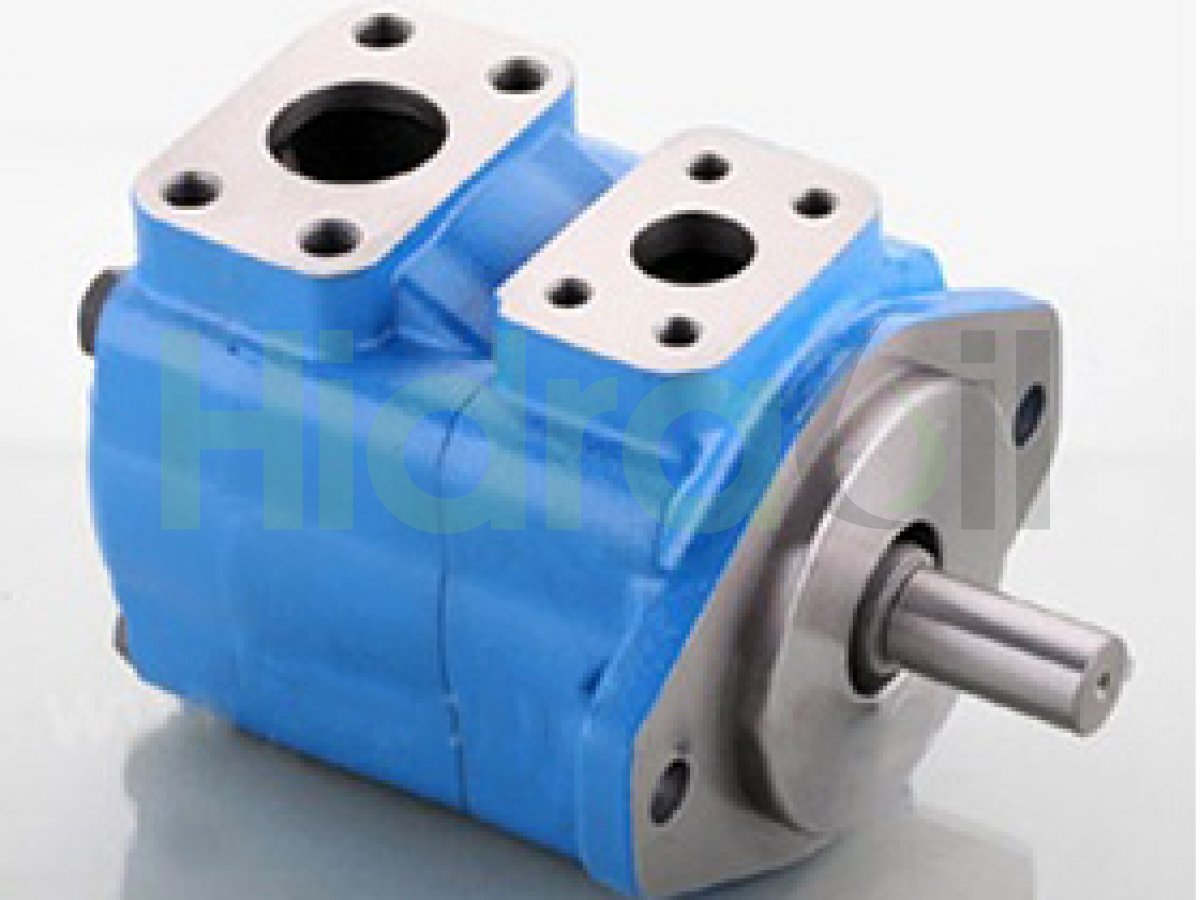

25VQ 17A 1A Vickers hydraulic vane pump 17 GPM straight shaft

Price and availability SHIPPING WORLDWIDE
REQUEST PRICE & AVAILABILITY

Availability: Inquire about stock

Price and availability

Payment and shipping methods

Visa · Mastercard · PayPal · Stripe · Google Pay

DHL · FedEx · UPS

Product identification

Hidraoil Part number
GFX101115
Brand
Vickers
Identification number
25VQ 17A 1A
Other numbers
25VQ 17A 1A20 25VQ17A1A 25VQ17A1A20
Approximate weight (kg)
14,5

Description

Parker fixed-displacement hydraulic vane pump.
Flow at 1200 rpm and 7 bar (100 psi): 64.3 liters/minute (17 USgpm).
Displacement: 55.2 cm3/rev.
Maximum working pressure: 210 bar (3000 psi).
Maximum speed: 2500 rpm.
Flange type: SAE-B 2 holes with 101.6mm centering diameter and 146.1 mm between holes.
Shaft type: Cylindrical shaft, 22,22 mm diameter, with a key.
Inlet port: SAE type for 4 screws, 69.9x35.7 mm hole spacing and a 38.1 mm oil passage diameter.
Outlet port: SAE type for 4 screws, 52.4x26.2 mm hole spacing and a 25.4 mm oil passage diameter.
Outlet port position: Opposite the inlet port.
Rotation: Clockwise rotation.
