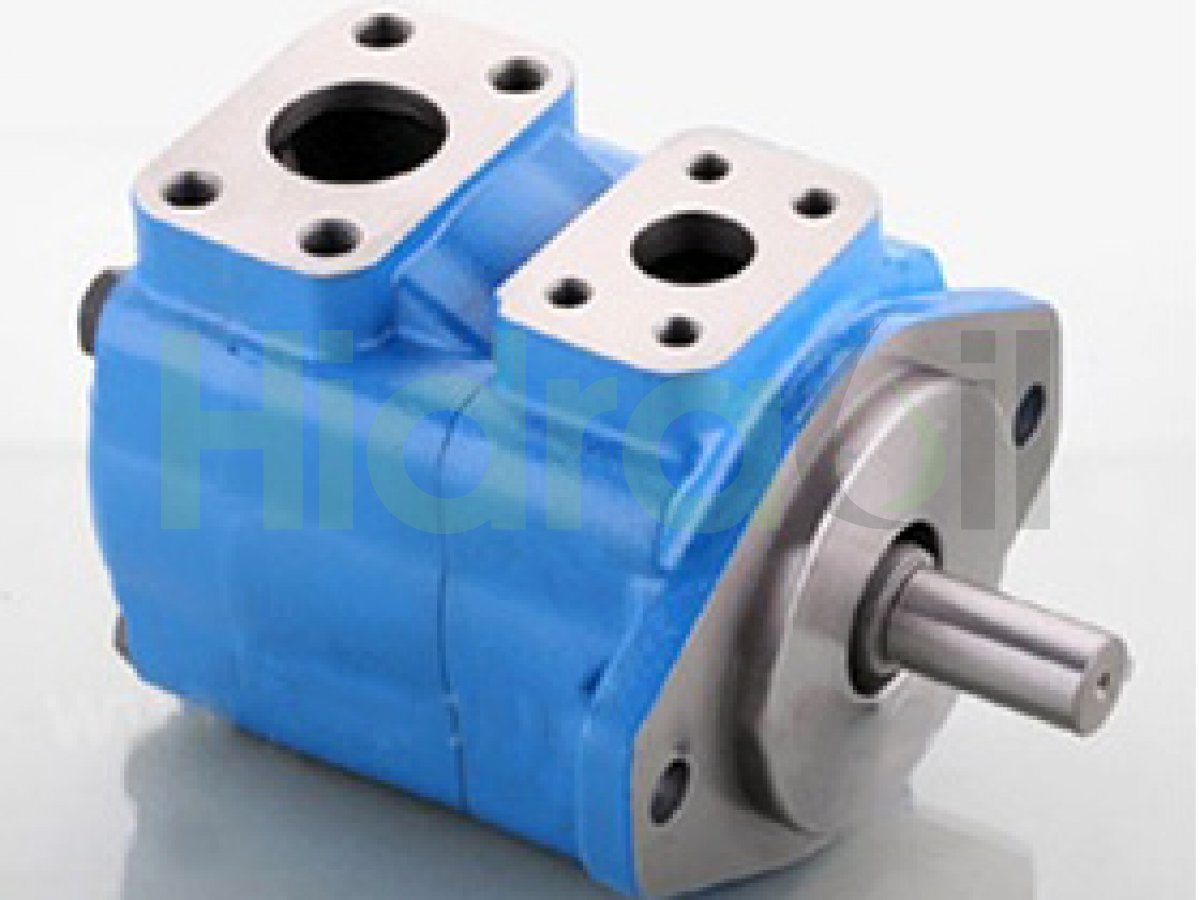

25VQ 21A 1C Vickers hydraulic vane pump 21 GPM straight shaft
Price and availability SHIPPING WORLDWIDEThe images are indicative and may differ from the final product delivered.
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX101113
- Brand
- Vickers
- Identification number
- 25VQ 21A 1C
- Other numbers
- 25VQ 21A 1C20 25VQ21A1C 25VQ21A1C20
- Approximate weight (kg)
- 14,5
Description
Flow at 1200 rpm and 7 bar (100 psi): 79.5 liters/minute (21 USgpm).
Displacement: 67.5 cm3/rev.
Maximum working pressure: 210 bar (3000 psi).
Maximum speed: 2500 rpm.
Flange type: SAE-B 2 holes with 101.6mm centering diameter and 146.1 mm between holes.
Shaft type: Cylindrical shaft, 22,22 mm diameter, with a key.
Inlet port: SAE type for 4 screws, 69.9x35.7 mm hole spacing and a 38.1 mm oil passage diameter.
Outlet port: SAE type for 4 screws, 52.4x26.2 mm hole spacing and a 25.4 mm oil passage diameter.
Outlet port position: In line with the inlet port.
Rotation: Clockwise rotation.
More information
- Category: Hydraulic Pumps
- Category: Vane
- Category: Fixed displacement
- Category: Vickers
- Category: 25VQ
- Category: Straight shaft D22.2 mm
