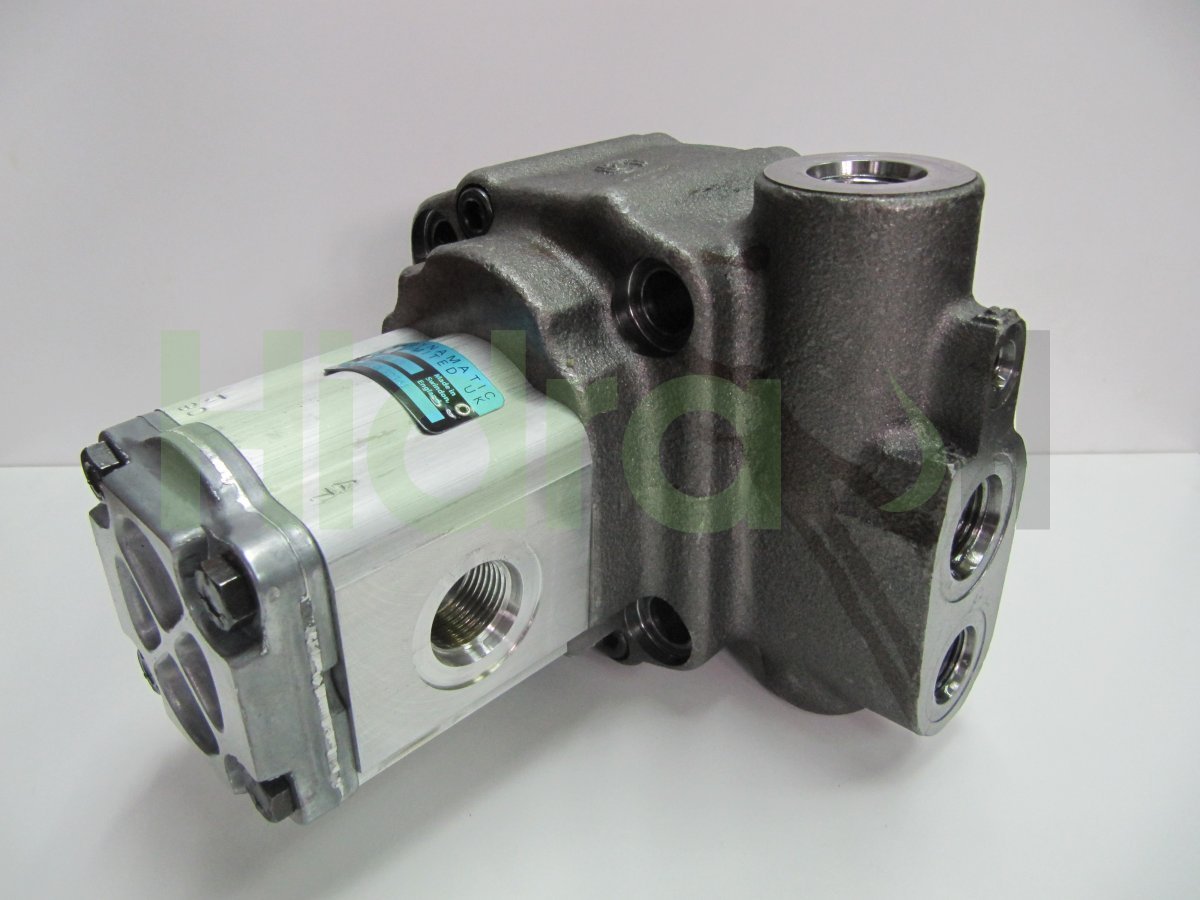

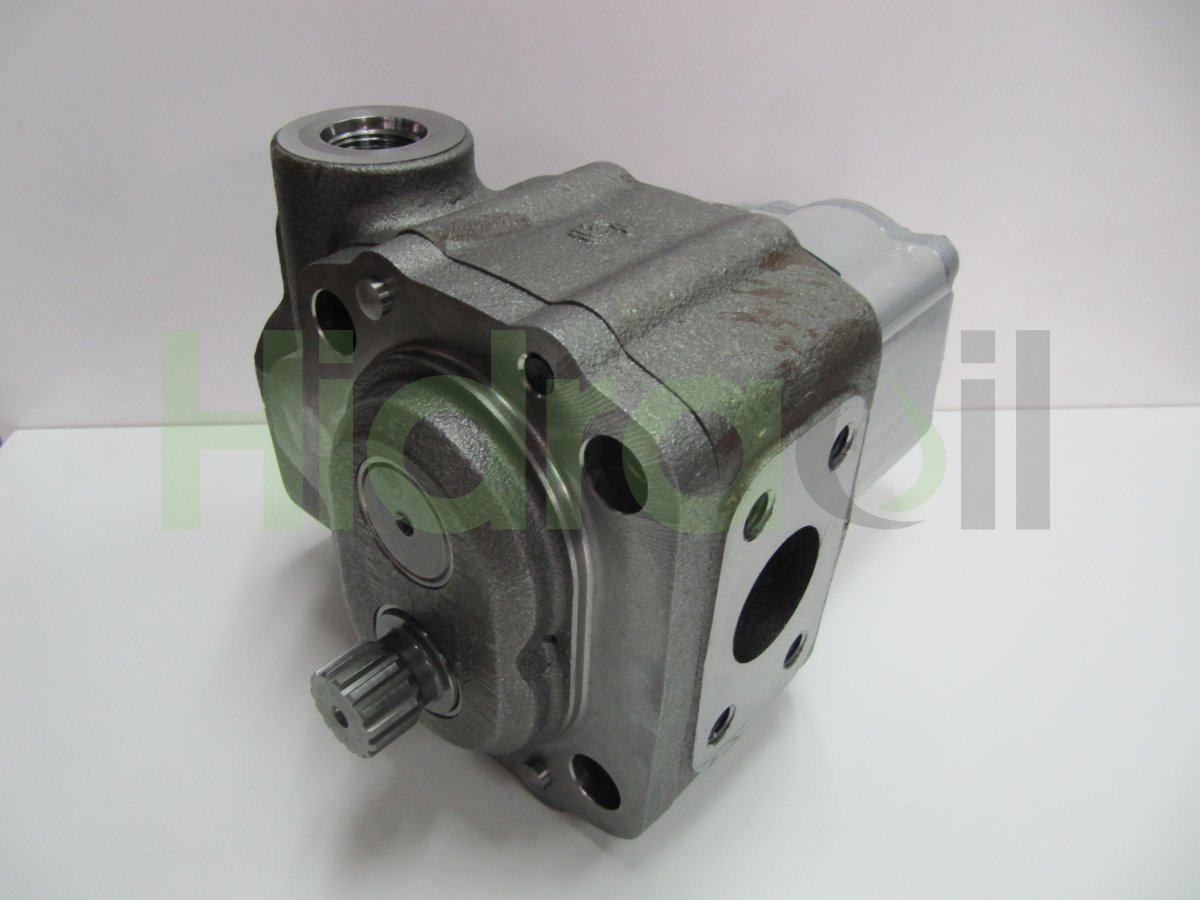

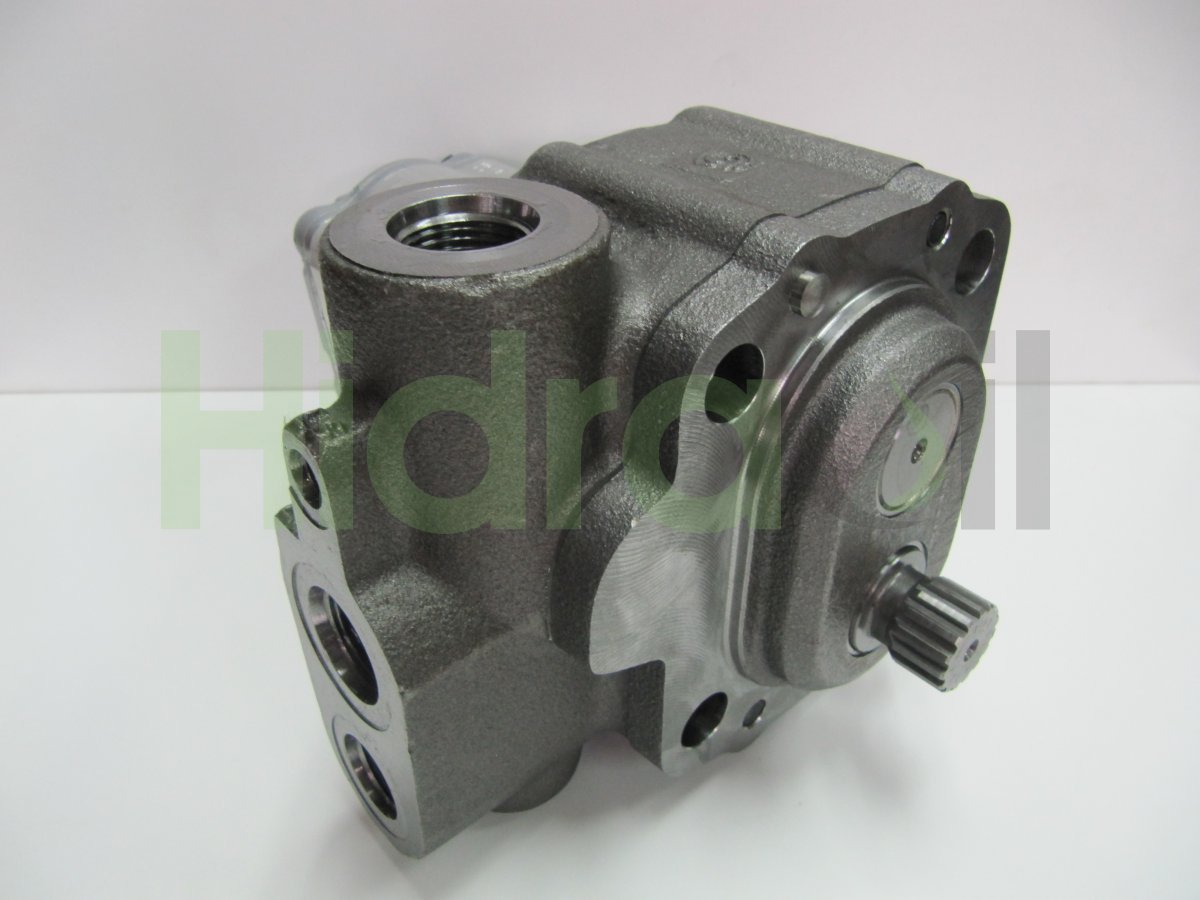

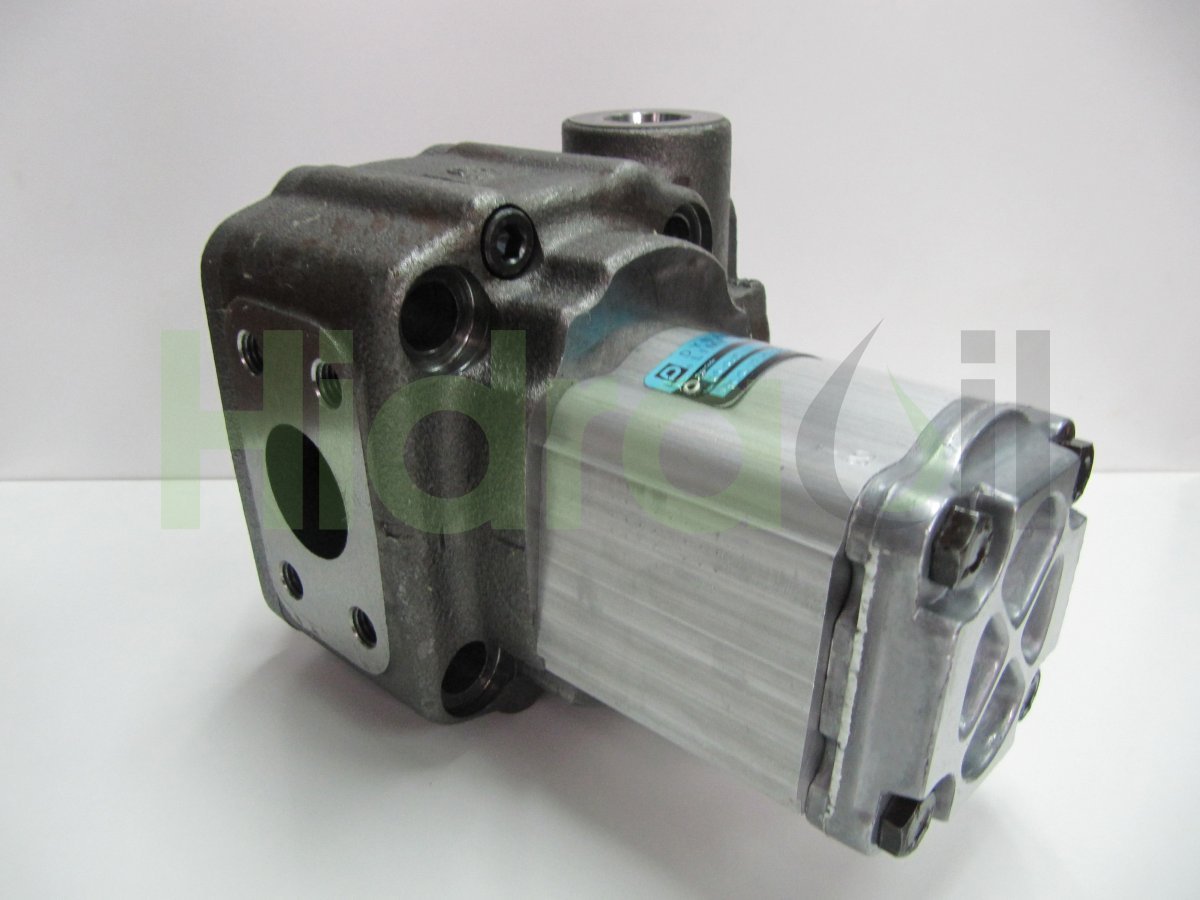

550/1/39341 Dynamatic hydraulic double pump 44+17 cm3 splined shaft z15
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX100037
- Brand
- Dynamatic
- Identification number
- 550/1/39341
- Other numbers
- 550139341 550/B/38906 550B38906 C44.0/17.0L39341 C44.0/17.0L 39341 C44.0/17.0L 38334 C44.0/17.0L38334
- Approximate weight (kg)
- 16,2
Description
Hydraulic external gear tandem pump con cuerpo from fundición en la bomba delantera y cuerpo from aluminio en la bomba trasera.
Displacements: 44+17 cm3/rev.
Flow @ 1500 rpm: 66+25.5 liters/minute.
Max speed: 3000 rpm.
Max working pressure: 240 bar en la bomba frontal y 210 bar en la bomba trasera.
Rotation: Clockwise rotation.
Shaft type: Splined z15.
Displacements: 44+17 cm3/rev.
Flow @ 1500 rpm: 66+25.5 liters/minute.
Max speed: 3000 rpm.
Max working pressure: 240 bar en la bomba frontal y 210 bar en la bomba trasera.
Rotation: Clockwise rotation.
Shaft type: Splined z15.
More information
- Category: Hydraulic Pumps
- Category: External gear
- Category: Aluminum
- Category: Group 2.5+2.5
- Category: Dynamatic
- Last updated: 2018-01-21 23:16:22
