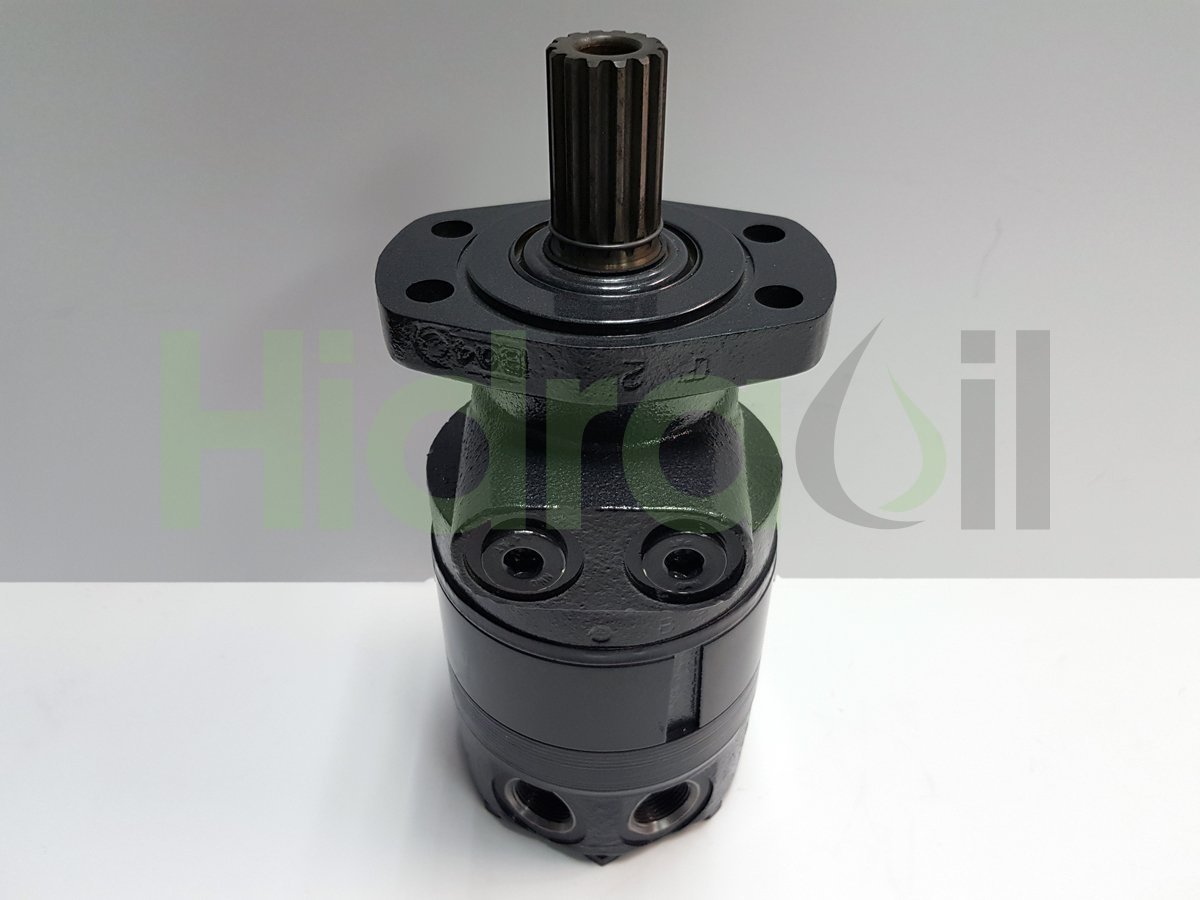

600540A8223AAAAB White drive hydraulic orbital motor 540 cm3 with splined shaft z14 internal drain
SHIPPING WORLDWIDE
The images are indicative and may differ from the final product delivered.
REQUEST PRICE & AVAILABILITY
Availability: Inquire about stock
Price and availabilityPayment and shipping methods
Visa · Mastercard · PayPal · Stripe · Google Pay
DHL · FedEx · UPS
Product identification
- Hidraoil Part number
- GFX92345
- Brand
- Danfoss White
- Identification number
- 600540A8223AAAAB
- Approximate weight (kg)
- 16,4
Description
Hydraulic orbital motor White Hydraulics from range DR for low speed and high torque applications.
Shaft type: Splined with 14 teeth and external diameter 31.6 mm.
Flange type: Magneto type with 82.5 mm centering diameter.
Displacement: 536 cm3/rev.
Ports: G3/4 in radial position.
Drain port: Internal drain.
Max speed: 180 rpm (intermittent operation: 210 rpm).
Max. Torque: 1034 Nm (intermittent operation: 1277 Nm).
Max. Pressure: 138 bar (intermittent operation: 172 bar).
Max oil flow: 95 liters/minute (intermittent operation: 114 liters/minute).
The working time under intermittent conditions should not exceed 10% of each minute of operation.
Shaft type: Splined with 14 teeth and external diameter 31.6 mm.
Flange type: Magneto type with 82.5 mm centering diameter.
Displacement: 536 cm3/rev.
Ports: G3/4 in radial position.
Drain port: Internal drain.
Max speed: 180 rpm (intermittent operation: 210 rpm).
Max. Torque: 1034 Nm (intermittent operation: 1277 Nm).
Max. Pressure: 138 bar (intermittent operation: 172 bar).
Max oil flow: 95 liters/minute (intermittent operation: 114 liters/minute).
The working time under intermittent conditions should not exceed 10% of each minute of operation.
More information
- Category: Hydraulic Motors
- Category: Orbital
- Category: White Drive
- Category: DR
- Last updated: 2023-10-01 18:00:00
